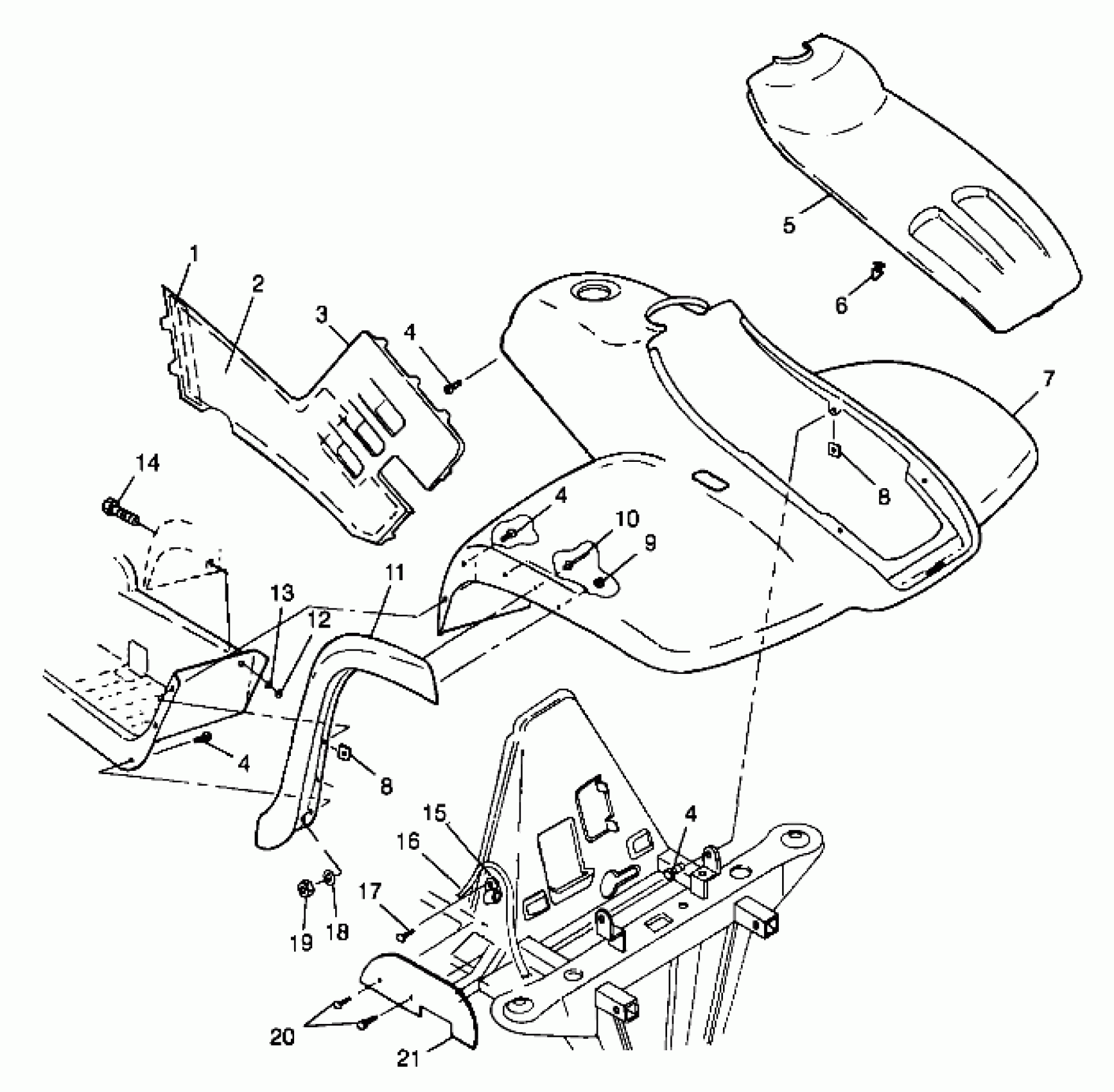

Polaris DIESEL - A99CH45CA FRONT CAB - A99CH45IA (4949154915A007) Diagram
#
Description
Price
1
FOIL,RH,SIDEPANEL,GEN IV
5811491
Unavailable
2
FOIL,FOAM,SIDE PANEL
5811743
$26.03
3
PANEL,ASM,SIDE,RH,BONNIE BLUE
2632017-157
Unavailable
3
PANEL,LH,SIDE,BON.BLUE
5431809-157
$99.19
4
BOLT(10)
7512232
$1.49
4
BOLT(10)
7512232
$1.49
4
BOLT(10)
7512232
$1.49
4
BOLT(10)
7512232
$1.49
5
COVER,FRONT,BON.BLUE
5432088-157
Unavailable
6
CLIP,SPRING(10)
7670085
$3.51
7
CAB,FRONT,SVC,BON BLUE
2631987-157
$261.90
8
NUT, SPEED(10)
7670057
$1.49
8
NUT, SPEED(10)
7670057
$1.49
9
PALNUT(10)
7670009
$2.39
10
RIVET(50)
7661645
$3.99
11
MUDGUARD,LH,FRT.BLK. Substituted by 5431798-070
5431798
Unavailable
11
MUDGUARD,RH,FRT.BLK. Substituted by 5431799-070
5431799
$84.99
12
NUT(10)
7541925
$1.49
13
WASHER(10)
7555792
$4.79
14
SCREW(10) Substituted by 7511989
7512085
Unavailable
15
CLAMP,HOSE,NYLON
7080693
$5.59
16
BREATHER-LINE-112 CM,SLIT
5411668
Unavailable
17
SCREW(10)
7512017
$4.79
18
WASHER(10) Substituted by 7558221
7555931
Unavailable
19
NUT-LOCK(10)
7542122
$1.49
20
CLIP-PLASTIC DART, NYLON
7670088
$1.59
21
SHIELD,DEFLECTOR Substituted by 5811917
5811489
$7.38
