Description

Price

-

CALIPER ASM,LH,FR.BRAKE Substituted by 1910309 (Incl. 1-3,5-7,9-11)

1910234

$288.87

-

CALIPER ASM,RH,FR.BRAKE Substituted by 1910310 (Incl. 1-3,5-7,9-11)

1910235

$288.87

1

SCREW,BLEEDER

7080352

$3.19

2

SETSCREW,SKT.HD.(10)

7515489

$5.59

3

KIT-BOOT,FRONT BRAKE

1930642

$11.19

3

CALIPER,LH,BRAKE,MACH. Substituted by 5131261

5131115

Unavailable

3

CALIPER,RH,BRAKE,MACH. Substituted by 5131262

5131116

Unavailable

4

PISTON & SEAL,KIT (Incl. 5-7)

1930665

$55.99

5

SQUARE RING-MOLDED (.094) (.094)

5410779

$10.51

6

RING,SQUARE,MOLDED (.103 x .134)

5410780

$10.51

7

PISTON-BRAKE,LONG Substituted by 1930665

5132294

$54.04

8

KIT,BRAKEPAD,FRONT

2200465

$47.99

8

KIT,FR.BRAKEPAD,HVY.DUTY

2200901

$55.99

8

KIT,BRAKEPAD,FR,(ATV)

2201149

$55.99

9

MT.ASM, CALIPER

1910056

Unavailable

10

Boot, Bushing

5410495

Unavailable

11

Boot, Pin Seal

5410494

Unavailable

12

Washer (See Footnote) (See Front Strut Pg. B5, Ref. 4)

-------

Unavailable

13

Washer, Spring Lock (See Footnote) (See Front Strut Pg. B5, Ref. 8)

-------

Unavailable

14

Bolt (See Footnote) (See Front Strut Pg. B5, Ref. 7)

-------

Unavailable

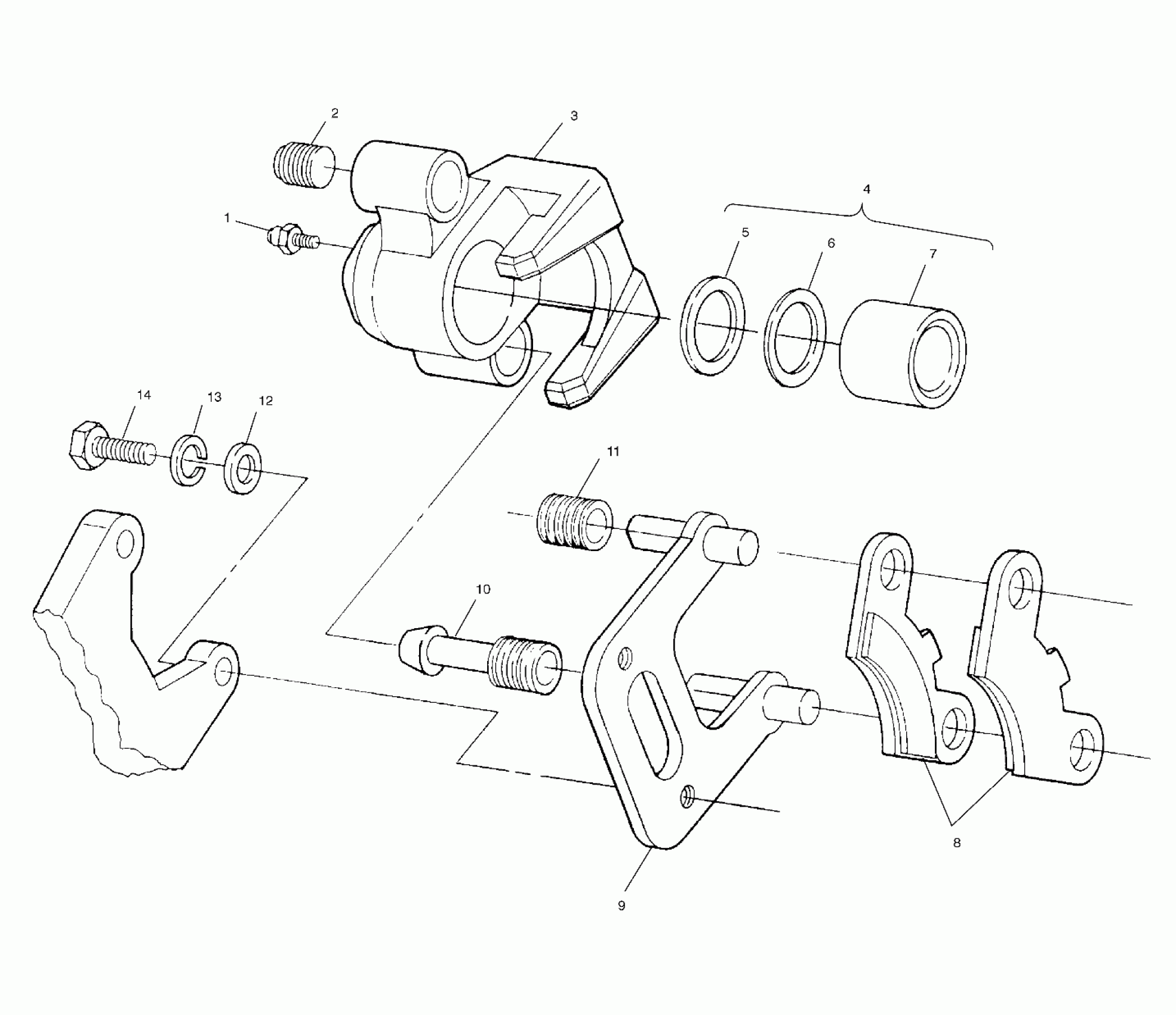

Polaris DIESEL - A99CH45CA FRONT BRAKE - A99CH45IA (4949154915B007) Diagram

CALIPER ASM,LH,FR.BRAKE Substituted by 1910309 (Incl. 1-3,5-7,9-11)

CALIPER ASM,RH,FR.BRAKE Substituted by 1910310 (Incl. 1-3,5-7,9-11)

SCREW,BLEEDER

SETSCREW,SKT.HD.(10)

KIT-BOOT,FRONT BRAKE

CALIPER,LH,BRAKE,MACH. Substituted by 5131261

CALIPER,RH,BRAKE,MACH. Substituted by 5131262

PISTON & SEAL,KIT (Incl. 5-7)

SQUARE RING-MOLDED (.094) (.094)

RING,SQUARE,MOLDED (.103 x .134)

PISTON-BRAKE,LONG Substituted by 1930665

KIT,BRAKEPAD,FRONT

KIT,FR.BRAKEPAD,HVY.DUTY

KIT,BRAKEPAD,FR,(ATV)

MT.ASM, CALIPER

Boot, Bushing

Boot, Pin Seal

Washer (See Footnote) (See Front Strut Pg. B5, Ref. 4)

Washer, Spring Lock (See Footnote) (See Front Strut Pg. B5, Ref. 8)

Bolt (See Footnote) (See Front Strut Pg. B5, Ref. 7)
