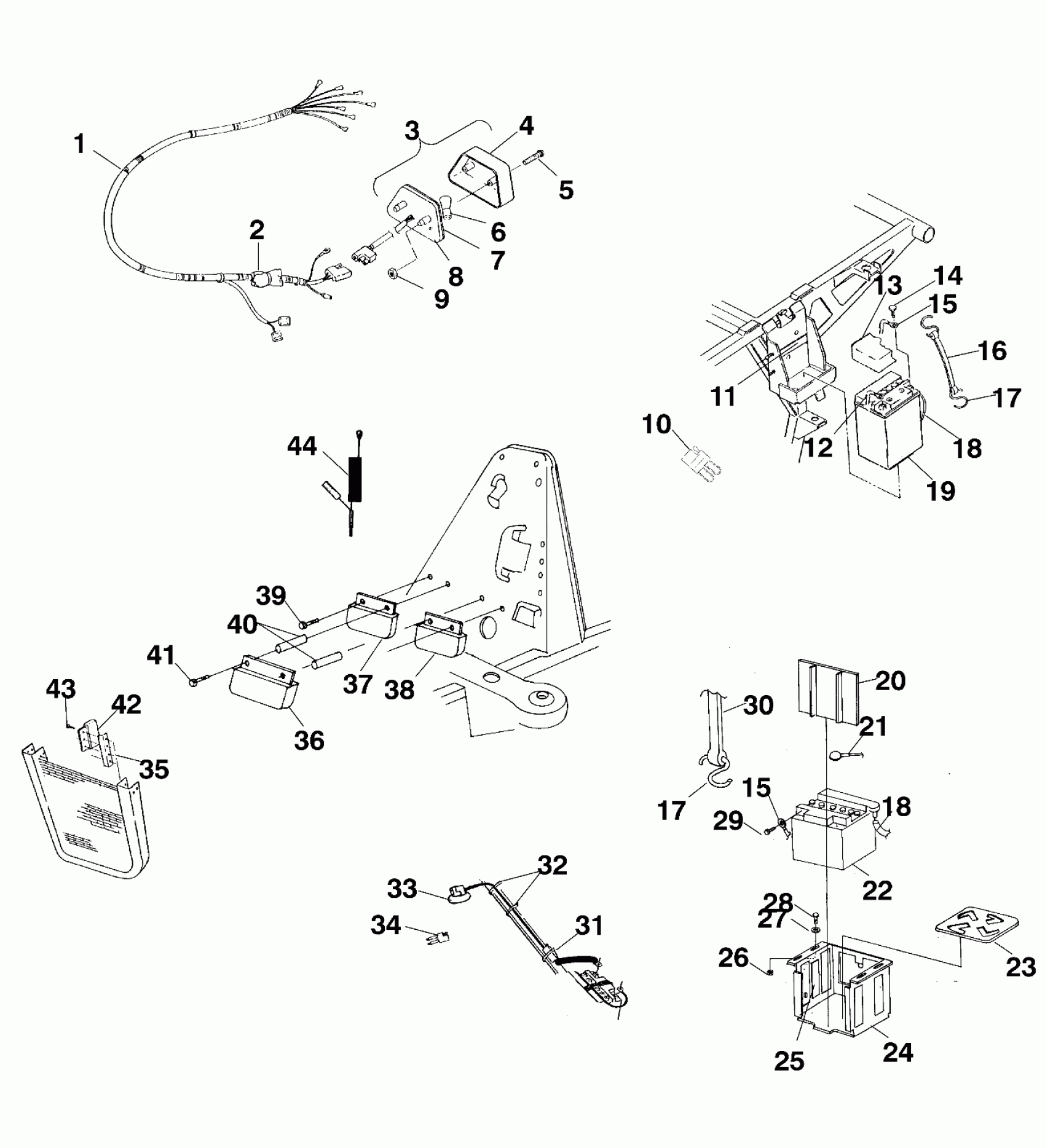

Polaris DIESEL - A99CH45CA ELECTRICAL/TAILLIGHT - A99CH45IA (4949154915C005) Diagram

#

Description
Price

1

HARNESS,MAIN,DIESEL

2460662

Unavailable

2

KIT,CKT.BRKR,20 AMP

2200593

$63.99

3

TAIL LIGHT ASM. (Incl. 4-9)

2432034

$55.99

4

LENS,TAILLIGHT

4032046

$32.37

5

Screw, Taillight

4032029

$4.79

6

BULB,TAILLIGHT

4030043

$6.46

7

GASKET,TAILLIGHT

4032045

$4.03

8

BACKING,TAILLIGHT

4032064

$83.99

9

SPEED NUT-WASHER, HEAD-1/4

7670054

$1.49

10

HARNESS-JUMPER,IM TO 3F .180

2460731

$7.43

11

PAD-BATTERY

5810290

$7.27

12

CABLE,BATTERY,RED

4010148

$19.68

13

COVER,BATTERY

5431769

$14.39

14

BOLT,BATT,KIT(LONG)

2200360

$9.59

15

CABLE-BLK(BATTERY/BATTERY)15"

4010199

$12.39

15

CABLE-BLK(BATTERY/BATTERY)15"

4010199

$12.39

16

STRAP,BATTERY HOLDDOWN

5410424

Unavailable

17

HOOK-BATT.H/D(10)

7010032

$1.59

17

HOOK-BATT.H/D(10)

7010032

$1.59

18

TUBE,BATTERY VENT

5432077

Unavailable

18

TUBE,BATTERY VENT

5432077

Unavailable

19

Battery

4140006

$99.99

20

RETAINER,BATTERY

5432840

$15.83

21

CABLE-RED,BATTERY/BATTERY

4010197

$12.39

22

BATTERY,30 AMP

4140012

Unavailable

23

PAD,BATTERY

5811623

$2.95

24

BOX,BATTERY,BLK

1040665-067

Unavailable

25

PAD,BATTERY,SIDE

5811651

Unavailable

26

NUT-LOCK(10)

7542122

$1.49

27

WASHER(10)

7558301

$1.49

28

BOLT(10)

7512130

$3.99

29

BOLT,BATT,KIT,30 AMP

2201155

$1.49

30

STRAP,BATT.HOLD-DOWN

5411456

Unavailable

31

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

32

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

33

POWER ASM,12V

2410022

Unavailable

34

PIGTAIL, POWER

2460442

$12.39

35

HEATSINK RECT.

5131036

Unavailable

36

Anti-Rev. Rotational Mod LR500

4010215

$91.19

37

CUTOFF,LR58,12VDC,(ALT.OPR)

4060202

Unavailable

38

LIMITER-RPM,270HZ,LR406

4010236

Unavailable

39

SCREW,(10)

7512024

$4.79

40

Spacer

5020864

Unavailable

41

SCREW(10)

7512025

$4.79

42

RECTIFIER-REGULATOR,LR-300

4010182

$135.30

43

SCR-#10-24X3/4,PN/TR RD-TORX-Y

7512018

$3.19

44

HARNESS-RESISTOR-333 OHM

2460741

Unavailable
