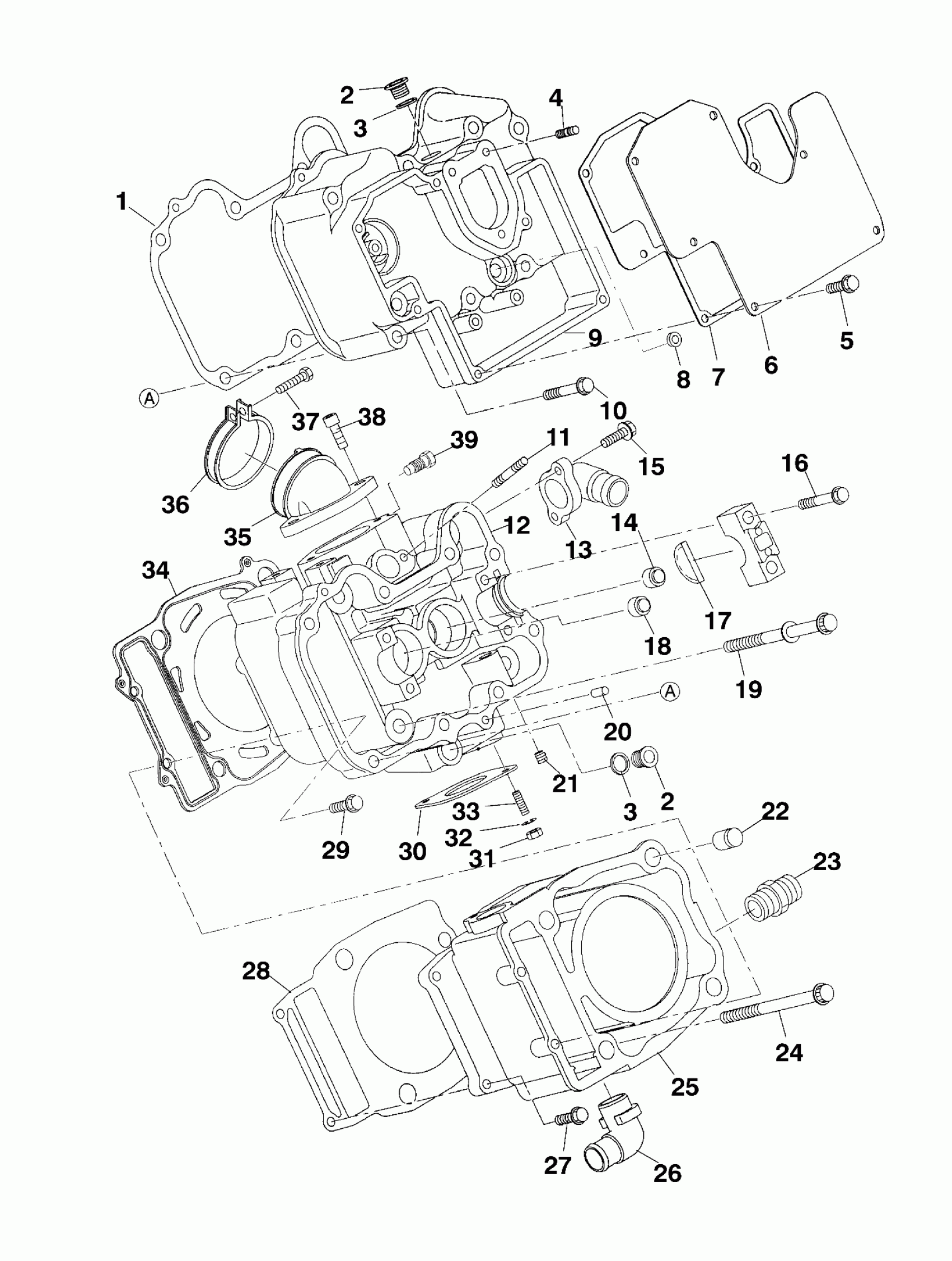

Polaris DIESEL - A99CH45CA CYLINDER - A99CH45CA (4949154915D007) Diagram
#
1
GASKET,ROCKER COVER
3085968
Unavailable
2
PLUG
3084860
$7.19
2
PLUG
3084860
$7.19
3
GASKET
3084861
$4.79
3
GASKET
3084861
$4.79
4
STUD
3085966
$2.23
5
BOLT, FLANGE(10) Substituted by 3087035
3083568
$3.85
6
COVER,GOV.
3085969
$28.15
7
GASKET,COVER 1
3085970
Unavailable
8
SEAL,OIL
3085967
Unavailable
9
COVER-ROCKER * (Incl. 4,8)
3086185
Unavailable
10
BOLT,FLANGE
3084841
Unavailable
11
STUD Substituted by 3086775
3085086
Unavailable
12
CYLINDER,HEAD Substituted by 3087085 (Incl. 11,14,16,18,20,21,33)
3085954
Unavailable
13
ADAPTER,(WATER OUT) Substituted by 3084870
3085072
Unavailable
14
SEAL,INTAKE VALVE
3084858
$13.59
15
BOLT,FLANGE(10)
3084877
Unavailable
16
BOLT,CAM CAP
3085957
Unavailable
17
ADAPTER,CAMSHAFT
3085964
$11.59
18
SEAL,EXHAUST VALVE
3084859
$23.99
19
BOLT
3084875
Unavailable
20
PIN,DOWEL(10) Substituted by 3080103
3083054
Unavailable
21
PLUG, BLIND
3084862
Unavailable
22
PIN,STRAIGHT
3084838
Unavailable
23
UNION,OIL PUMP
3084849
Unavailable
24
BOLT, FLANGE
3084873
Unavailable
25
CYLINDER (Incl. 26)
3085953
Unavailable
26
PIPE, 2 ELBOW Substituted by 3086747
3084130
Unavailable
27
BOLT, FLANGE
3084874
Unavailable
28
Gasket, Cylinder
3085370
$38.60
29
BOLT, FLANGE
3084533
$1.49
30
GASKET,EXH.
3085075
$39.99
31
NUT(10)
3080285
Unavailable
32
WASHER LOCK ,(10)
3080530
$3.19
33
STUD (10)
3080016
$5.75
34
GASKET,HEAD,1.0 (.95)
3085958
Unavailable
34
GASKET-HEAD (1.05)
3086151
$45.39
34
GASKET,HEAD,1.2 (1.15)
3085959
$43.39
34
GASKET-HEAD (1.25)
3086152
Unavailable
34
GASKET,HEAD,1.4 (1.35)
3085960
Unavailable
34
GASKET-HEAD (1.45)
3086153
Unavailable
34
GASKET,HEAD,1.6 (1.55)
3085961
Unavailable
34
GASKET-HEAD (1.65)
3086154
Unavailable
34
GASKET,HEAD,1.8 (1.75)
3085962
Unavailable
34
GASKET-HEAD (1.85)
3086155
Unavailable
34
GASKET,HEAD,2.0 (1.95)
3085963
Unavailable
35
ADAPTER
3084879
Unavailable
36
BAND ASM. Substituted by 3083166
3083085
Unavailable
37
SCREW,(10)
3081497
$2.39
38
Bolt, Allen
3081330
$3.99
39
BOLT
3086156
$14.23
