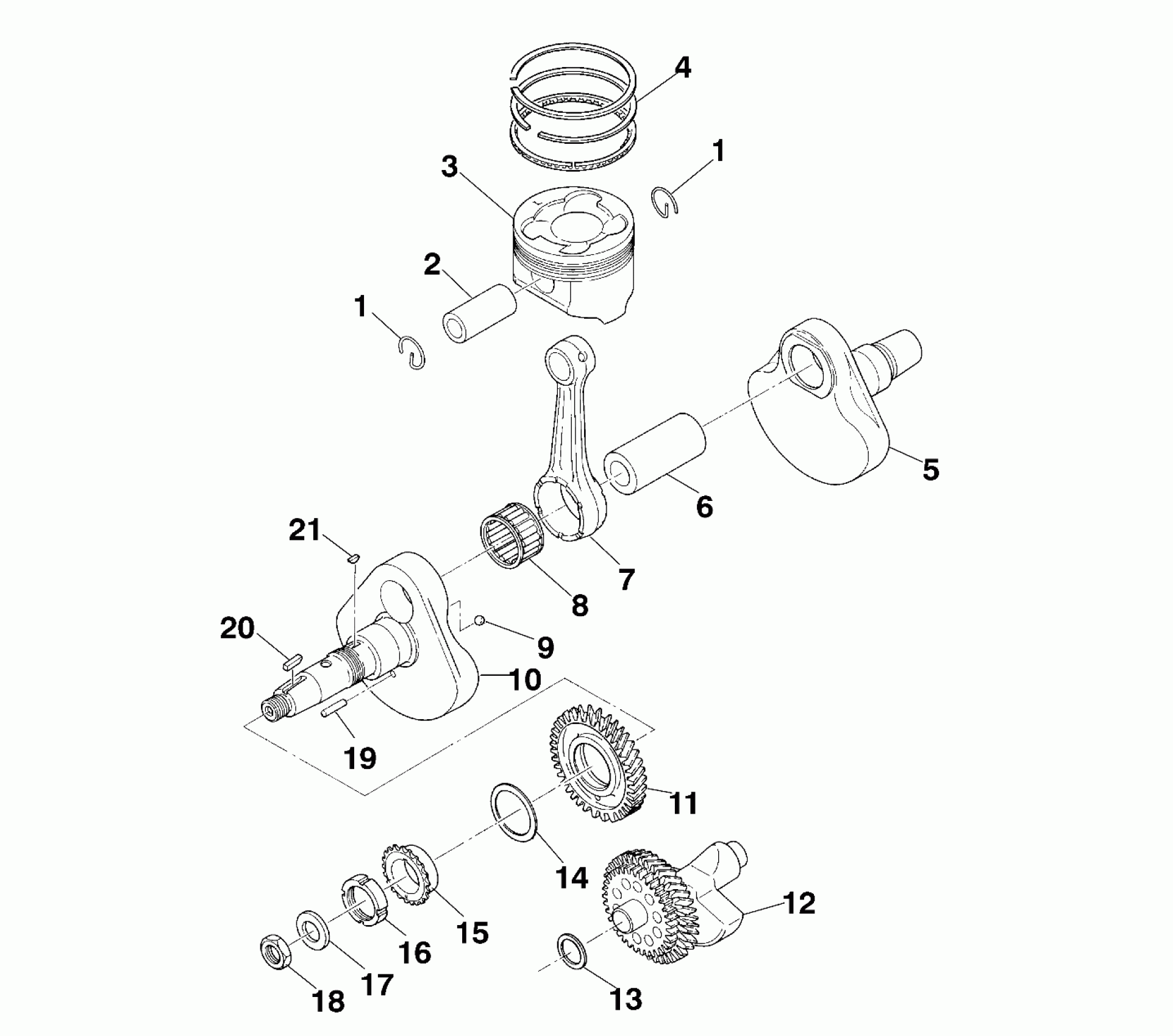

Polaris DIESEL - A99CH45CA CRANKSHAFT and PISTON - A99CH45CA (4949154915D009) Diagram

#

Description
Price

1

CIRCLIP(10)

3085987

$1.49

1

CIRCLIP(10)

3085987

$1.49

2

PIN,PISTON

3084886

Unavailable

3

PISTON SET (STD) (Std) (Incl. 1)

3086186

Unavailable

3

PISTON SET (.25 O/S) (0.25mm O/S) (Incl. 1)

3086187

Unavailable

3

PISTON SET (.50 O/S) (0.50mm O/S) (Incl. 1)

3086188

Unavailable

4

PISTON,RING(STD) (Std)

3085984

Unavailable

4

RING,PISTON SET.25 O/S (0.25mm O/S)

3085985

Unavailable

4

PISTON,RING,SET (0.50mm O/S)

3085986

Unavailable

5

CRANKSHAFT#2,PTO SIDE

3085374

$338.29

6

PIN-CRANK

3087090

$105.22

7

ROD,CONNECTING

3085978

Unavailable

8

BEARING,LARGE END Substituted by 3085343

3085400

$78.56

9

BALL, STEEL

3085024

$5.59

10

CRANKSHAFT,ASM. (Incl. 5-11,19)

3085975

Unavailable

10

CRANKSHAFT

3085976

Unavailable

11

BALANCER,GEAR,1 *

3085852

Unavailable

12

SHAFT-BALANCER *

3086158

Unavailable

13

SPACER (1.2)

3084897

$6.39

13

SPACER (0.8)

3084895

$6.39

13

SPACER (1.0)

3084896

$6.39

14

SPACER (1.2)

3084894

$19.99

14

SPACER (0.6)

3240088

$10.39

14

SPACER (1.0)

3084893

$19.99

14

SPACER (0.8)

3084892

$12.79

15

Sprocket 1

3085979

Unavailable

16

NUT

3085980

$19.79

17

WASHER Substituted by 3086767

3083904

Unavailable

18

LOCKNUT

3083905

Unavailable

19

Pin, Dowel

3085346

Unavailable

20

KEY

3081447

Unavailable

21

KEY Substituted by 3081543

3080130

Unavailable
