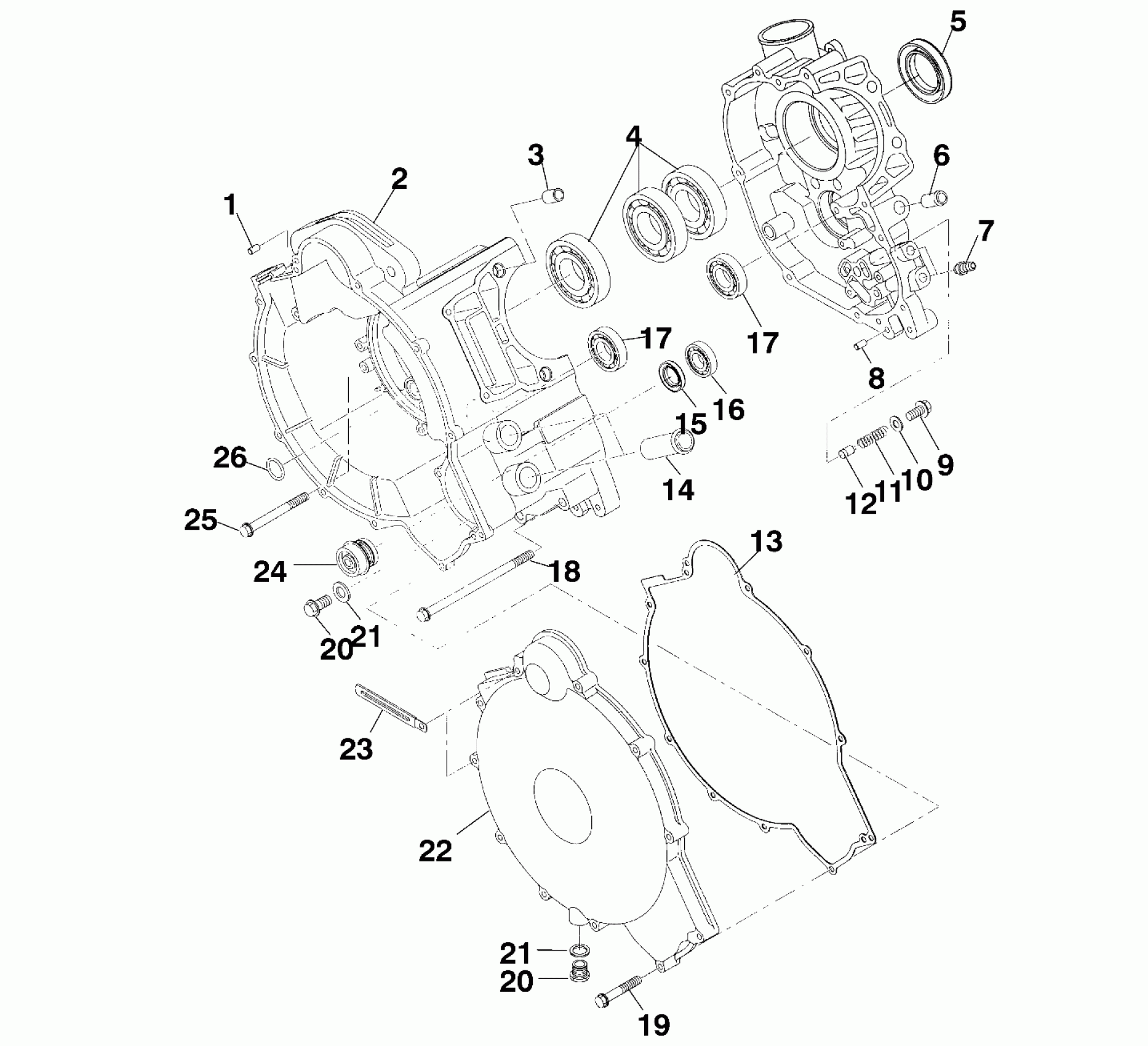

Polaris DIESEL - A99CH45CA CRANKCASE - A99CH45CA (4949154915D006) Diagram

#

Description
Price

1

PIN, DOWEL Substituted by 3086838

3080103

$7.14

2

CRANKCASE,ASM. (Incl. 1,4,5,6,8,14-18,24,25)

3085946

Unavailable

3

PIN,STRAIGHT

3084838

Unavailable

4

BEARING,BALL

3085947

Unavailable

5

SEAL, OIL

3084839

$28.32

6

PIPE,AIR BREATHER

3085525

Unavailable

7

Union

3084842

$32.37

8

Pin, Dowel

3084840

$6.46

9

PLUG

3084845

Unavailable

10

GASKET,(ALUM.)(10)

3084846

$5.65

11

SPRING

3084844

$4.84

12

VALVE Substituted by 3086810

3084843

Unavailable

13

GASKET,COVER

3085951

Unavailable

14

Pipe, Water

3083452

Unavailable

15

SEAL, OIL

3084836

Unavailable

16

BEARING,BALL

3084835

$31.75

17

BEARING,BALL

3084834

Unavailable

17

BEARING,BALL

3084834

Unavailable

18

BOLT,FLANGE

3085949

$5.40

19

BOLT&WASHER ASM.

3086087

Unavailable

20

PLUG Substituted by 3086749

3083453

Unavailable

20

PLUG Substituted by 3086749

3083453

Unavailable

21

GASKET

3082956

$4.84

21

GASKET

3082956

$4.84

22

COVER-FLYWHEEL Substituted by 3087081

3087082

$115.08

23

Clamp

3083590

$3.97

24

SEAL,MECHANICAL

3084837

$68.79

25

BOLT,FLANGE

3084841

$3.17

26

O-RING

3084847

$6.46
