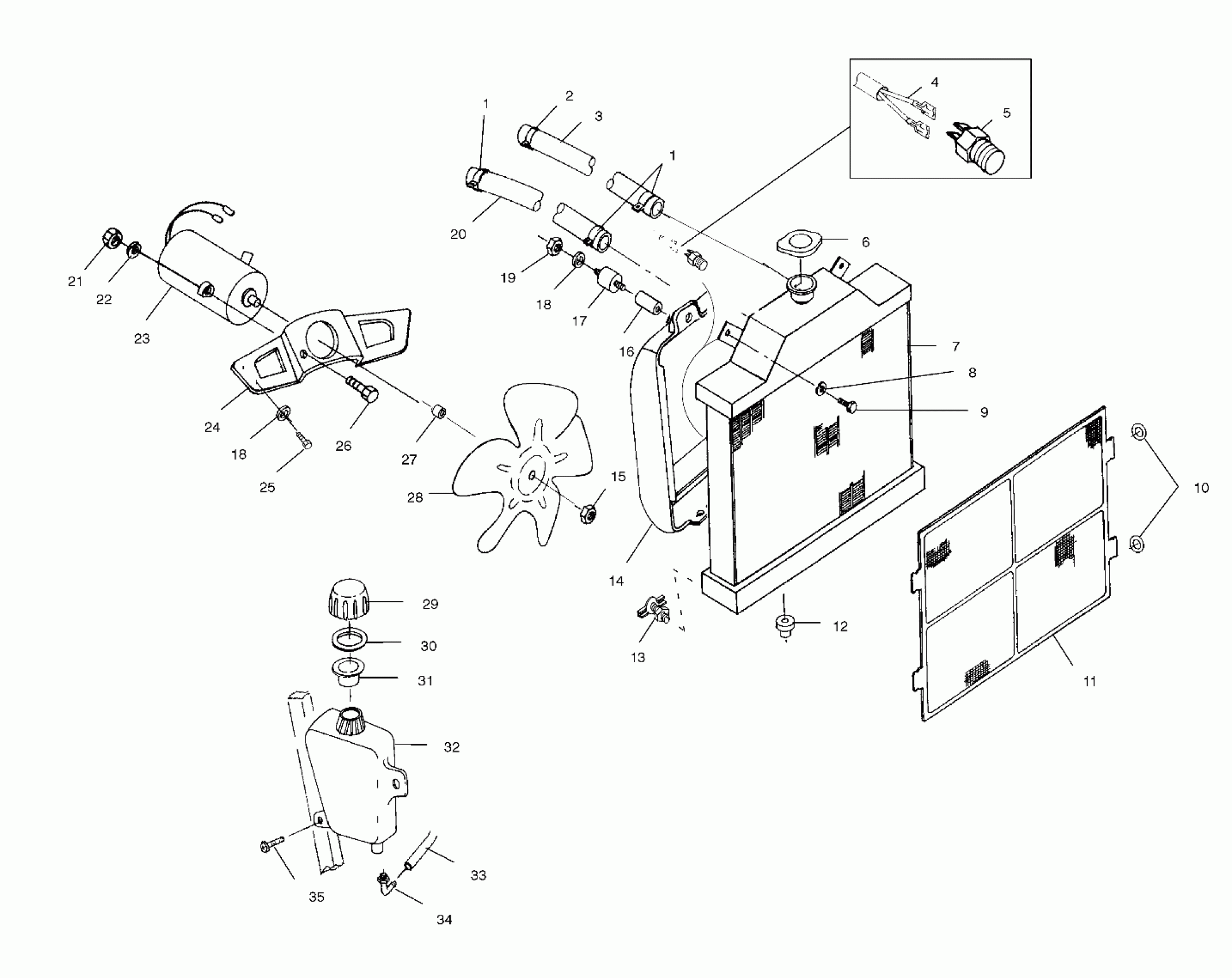

Polaris DIESEL - A99CH45CA COOLING SYSTEM - A99CH45IA (4949154915A011) Diagram

#

Description
Price

1

CLAMP,HOSE,(10)

7080614

$7.14

1

CLAMP,HOSE,(10)

7080614

$7.14

2

CLAMP,HOSE,1.25,WORM DRIVE

7080696

$5.56

3

HOSE,3/4X22"

5411410

Unavailable

4

HARNESS,FAN/THERM.SWITCH

2460515

Unavailable

5

SWITCH-THERMAL,4 STROKE,500CC

4010202

$72.84

6

CAP, RADIATOR Substituted by 2511270

2511189

$24.27

7

RADIATOR,"U"FLOW

1240015

Unavailable

8

WASHER(10)

7552605

$5.69

9

SCREW(10)

7512113

$3.97

10

O RING

5410607

Unavailable

11

COVER,RADIATOR,W/MESH

5431760

Unavailable

12

BUSHING-MOUNT,LOWER RADIATOR

5410584

$5.56

13

VALVE,DRAIN COCK

7052181

Unavailable

14

SHROUD,FAN,(ATV)

5432593

Unavailable

15

NUT

7542154

Unavailable

16

Spacer, Mount

5020572

$8.73

17

Mount, Rubber

3110032

Unavailable

18

WASHER(10)

7558301

$1.19

18

WASHER(10)

7558301

$1.19

19

NUT-LOCK(10)

7542122

$1.19

20

HOSE-LOWER ENGINE

5411605

Unavailable

21

Nut

7547004

$4.76

22

WASHER, FLAT(10)

7558201

$5.79

23

MOTOR,FAN,LQ,W/CONNECTOR

4170011

Unavailable

24

BRKT.COOL.FAN,BLK

5241355-067

Unavailable

25

BOLT(10)

7512232

$1.19

26

SCREW(10)

7511875

$4.76

27

SPACER

5333457

Unavailable

28

BLADE, FAN

5240822

$57.14

29

CAP-OVER FLOW BOTTLE,DRILLED

5430743

$5.65

30

GASKET-OVERFLOW CAP

5810279

$2.41

31

PLUG,CAP Substituted by 5433774

5431895

$5.65

32

TANK,SURGE,DIESEL

5432855

$26.98

33

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

$89.99

34

FITTING,90 DEGREE

7052065

$7.14

35

SCREW(10)

7512084

$1.19
