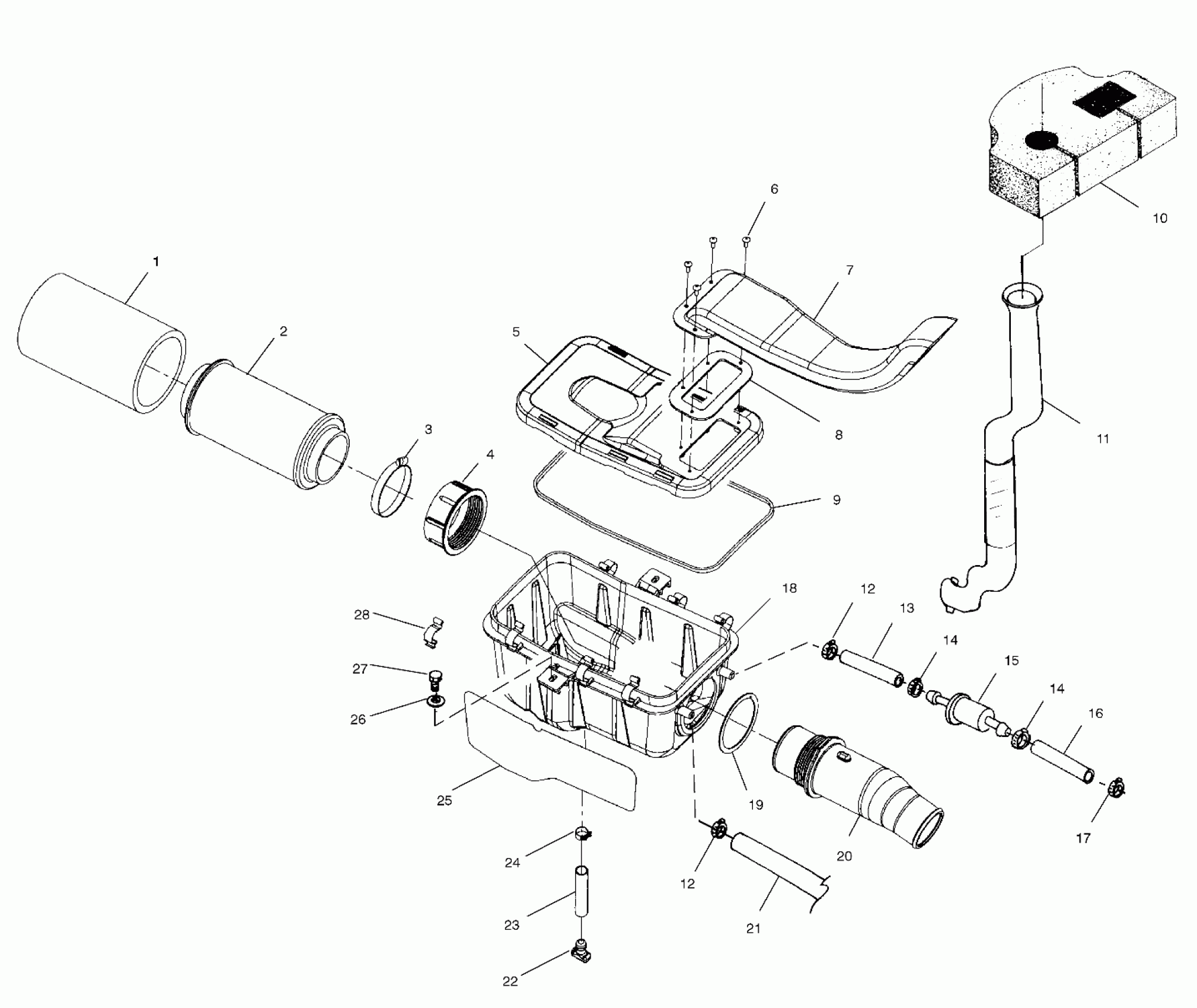

Polaris DIESEL - A99CH45CA AIR BOX - A99CH45IA (4949154915B001) Diagram
#
Description
Price
1
FILTER,PRECLEAN.SLEEVE
5811633
$11.99
2
FILTER,AIR INTAKE
7080595
Unavailable
3
CLAMP,BAND,NARROW
7080413
$3.19
4
COLLAR,CARB INLET
5432601
$12.79
5
COVER,AIRBOX
5432868
$51.99
6
SCREW,SEMS(10)
7517541
$4.79
7
DUCT,AIR INLET
5433293
$69.99
8
GASKET,INTAKE
5411422
$6.63
9
SEAL,AIRBOX COVER
5811482
Unavailable
10
SEAL,FOAM
5811626
$31.99
11
DUCT-AIR INLET, CLUTCH
5432086
Unavailable
12
CLAMP,HOSE
7080699
$1.59
12
CLAMP,HOSE
7080699
$1.59
13
LINE,BREATHER,3/8 ID.
8450073-600
Unavailable
14
CLAMP,HOSE(10)
7080544
Unavailable
14
CLAMP,HOSE(10)
7080544
Unavailable
15
FILTER,BREATHER,IN LINE
2530029
$6.39
16
HOSE,BREATHE,W/CHAFE
5411661
Unavailable
17
CLAMP,HOSE,SPRING
7080694
$6.53
18
BOX,AIR INT,4-STROKE
5432774
$117.37
19
GASKET,CARB.IN.DUCT
5830128
Unavailable
20
DUCT,CARB.INLET,DIESEL
5432884
Unavailable
21
BREATHER-LINE-112 CM,SLIT
5411668
Unavailable
22
Plug, Trap
5432377
Unavailable
23
FUEL LINE
8450059-150
Unavailable
24
CLAMP,HOSE,(10)
7080650
$3.99
25
FOIL,AIRBOX
5811650
Unavailable
26
WASHER(10)
7558301
$1.49
27
SCREW(10)
7515179
$2.39
28
CLIP-AIR BOX
5242044
$9.59
