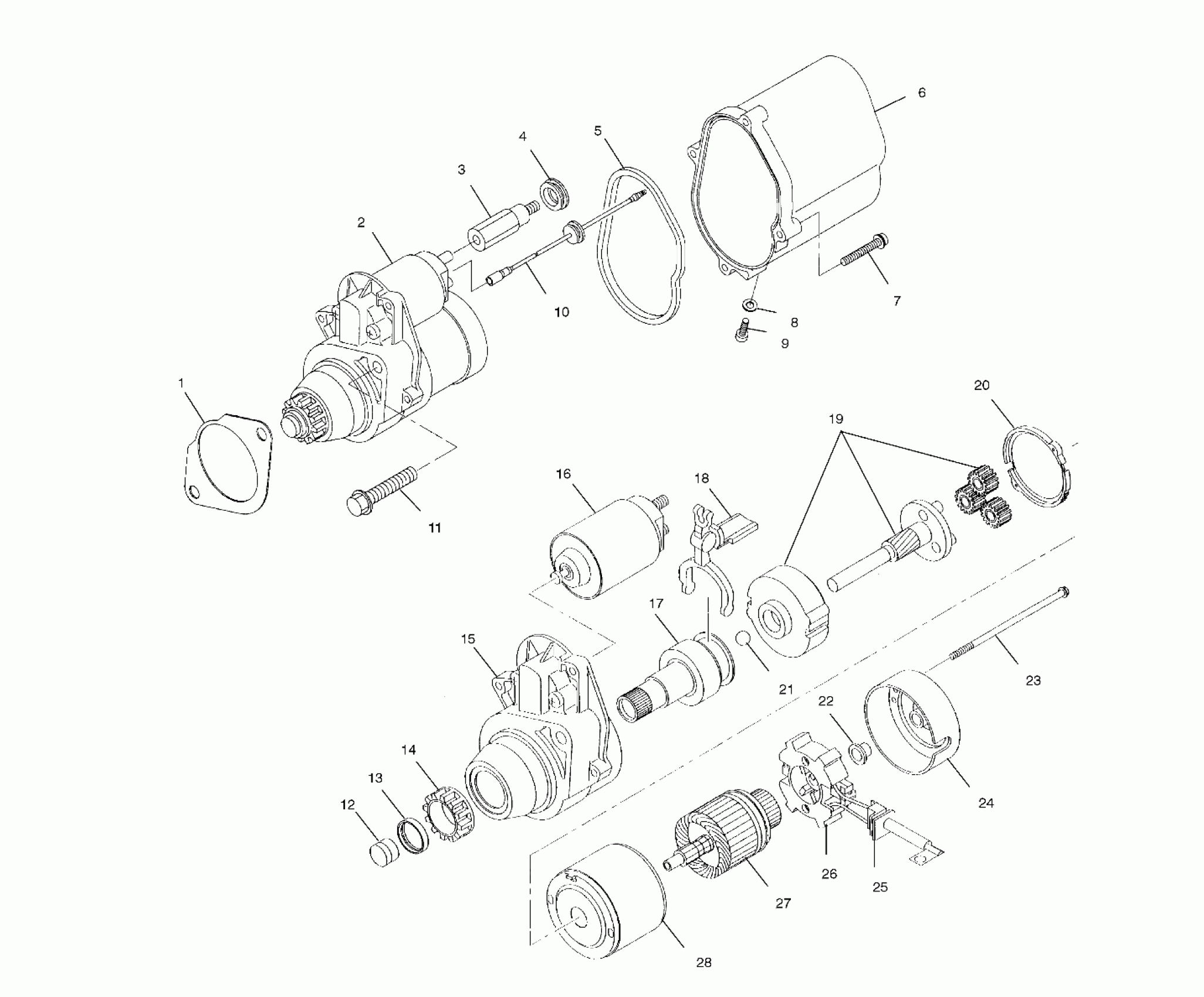

Polaris DIESEL - A10CH46CA STARTING MOTOR - A10CH46CA (4964376437E002) Diagram

#

Description
Price

1

GASKET,MOTOR,STARTING

3086085

$16.47

2

STARTING MOTOR,ASM. (Incl. 12-28)

3086079

Unavailable

3

BOLT [No Longer Available]

3086081

Unavailable

4

GROMMET

3086082

$5.83

5

GASKET,COVER,STARTING

3086084

$15.67

6

COVER,STARTING MOTOR Substituted by 3086079

3086080

Unavailable

7

BOLT&WASHER ASM.

3086087

$3.19

8

GASKET, ALUM,(10) Substituted by 7555998

3082758

$1.19

9

PLUG, DRAIN

3083767

Unavailable

10

WIRE

3086083

$17.70

11

BOLT,FLANGE

3086086

$12.39

12

PINION STOPPER SET

3086174

$31.86

13

PINION STOPPER SET

3086173

$36.65

14

PINION SET (Incl. 13)

3086172

$143.16

15

BRKT,FR,ASM.

3086182

$223.19

16

SWITCH,ASM.

3086157

$176.63

17

CLUTCH SHAFT ASM. (Incl. 12-14,17,19)

3086170

$497.60

18

LEVER SET

3086184

$26.39

19

CLUTCH-OVER RUNNING

3086171

Unavailable

20

PACKING

3086175

$8.23

21

BALL

3086176

$1.83

22

BEARING-SLEEVE

3086181

$11.11

23

BOLT

3086183

$8.79

24

BRKT,REAR ASM. (Incl. 22)

3086180

$103.19

25

BRUSH HOLDER ASM. (Incl. 26)

3086178

Unavailable

26

BRUSH SET

3086179

$81.75

27

ARMATURE ASM.

3086169

$339.99

28

YORK ASM.

3086177

Unavailable
