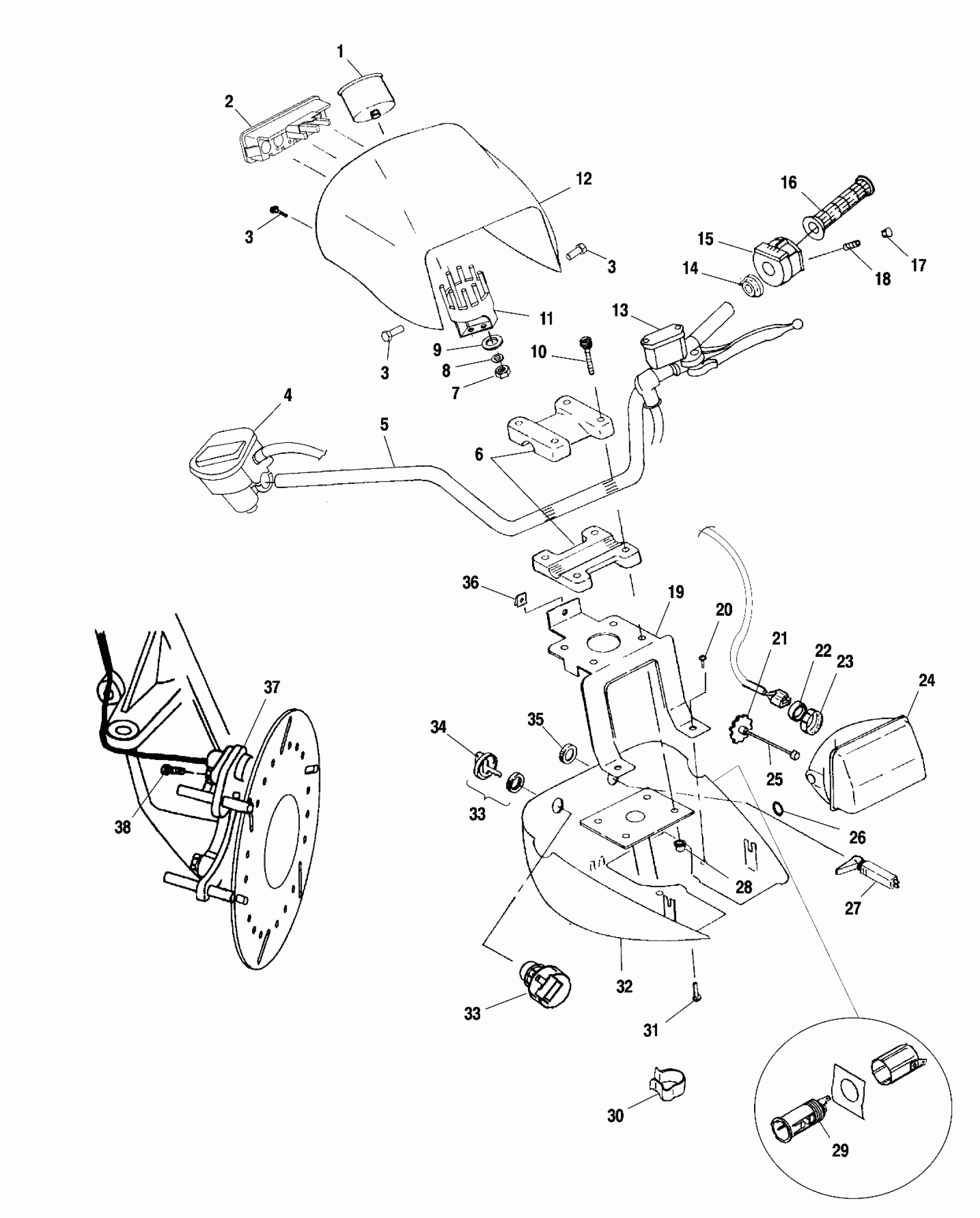

Polaris DIESEL - A10CH46CA HANDLEBAR and HEADLIGHT POD - A10CH46CA (4964376437B009) Diagram

#

Description
Price

1

SPEEDOMETER,KILO,3.38",6P

3280359

Unavailable

2

PANEL-INDICATOR LIGHT 3 POS. Substituted by 4010459

4010315

Unavailable

3

SCR-#8X.625,SELF TAP-PH/PN-ZTB

7511881

$1.49

3

SCR-#8X.625,SELF TAP-PH/PN-ZTB

7511881

$1.49

3

SCR-#8X.625,SELF TAP-PH/PN-ZTB

7511881

$1.49

4

Asm., Throttle Control (See Controls - Throttle Asm./Cable Pg. B6, Ref. 6)

-------

Unavailable

5

TUBE-HANDLEBAR,GEN 4,POD,BLK

5242987-067

$114.99

6

KIT,H'BAR BLOCK (Incl. Blocks and 6,10,28)

2200774

Unavailable

6

BLOCK,H'BAR RETAINER,BLK

5630616-067

Unavailable

7

NUT, BRASS(10)

7541933

$4.99

8

WASHER, LOCK,(S.S.)(10)

7555868

Unavailable

9

WASHER,13/64X1/2X18GA,FL-Y

7558212

$1.49

10

SCREW(10)

7515189

Unavailable

11

CLAMP,BACK,ELEC.SPEEDO,3.38"

3280291

Unavailable

12

POD-HEADLIGHT,UPPER,BON BLUE

5433763-157

Unavailable

13

Asm., Master Cylinder (See Controls - Master Cylinder/Brake Line Pg. B7 for details)

-------

Unavailable

14

SPACER-SWITCH,LH,99

5433903

Unavailable

15

SWITCH-HANDLEBAR,H/L/O,REV/OR

4010262

$203.99

16

GRIP-HNDLBAR,7/8 ID,ATV,BLACK

5433834-070

$24.27

17

PLUG,HOLE(10)

5432952

$5.59

18

SCREW,SET

7517625

$4.79

19

BRKT-POD MOUNTING,BLK

5244969-067

$44.99

20

SCR-#8X1/2,TR/PH,TYPE B-Y

7517317

$3.19

21

KNOB,ADJUSTING

4032079

$23.99

22

BOOT, HEADLIGHT

5411120

$27.99

23

COLLAR,LOCK

4032077

$27.99

24

BULB,QUARTZ.H/L,INDY

2870448

$24.99

24

LENS&REFLECTOR ASM.

4032075

Unavailable

25

ROD,ADJUSTING

4032078

Unavailable

26

O RING

5410163

$1.60

27

CABLE-FUEL SHUT OFF

7080757

Unavailable

28

NUT-LOCK(10)

7542122

$1.49

29

RECEPTACLE-POD MNT,12 VOLT

4010283

Unavailable

30

CLIP,CABLE RETAIN,(10)

7080631

$6.29

31

SCREW(10)

7522021

$3.99

32

POD-HEADLIGHT,LWR SNAP BLACK

5433970-070

Unavailable

33

BLANK, KEY, SERIES 2000, 2100, 6700, 6800 Your key can be duplicated only by obtaining a key blank from Polaris and having it cut by mating it with your existing key.

4010278

Unavailable

33

KEY SWITCH KEY COVER

5433534

$12.35

33

Blank, Key, Series 2200, 2300, 2700, 2800. Your key can be duplicated only by obtaining a key blank from Polaris and having it cut by mating it with your existing key.

4010321

Unavailable

33

NUT-IGNITION SWITCH,HOBBS

5433733

$23.99

33

SWITCH,IGNITION (Incl. Key)

4110264

$104.24

33

BLANK, KEY, SERIES 2000, 2100, 6700, 6800 Your key can be duplicated only by obtaining a key blank from Polaris and having it cut by mating it with your existing key.

4010278

Unavailable

33

KEY SWITCH KEY COVER

5433534

$12.35

33

Blank, Key, Series 2200, 2300, 2700, 2800. Your key can be duplicated only by obtaining a key blank from Polaris and having it cut by mating it with your existing key.

4010321

Unavailable

33

NUT-IGNITION SWITCH,HOBBS

5433733

$23.99

33

SWITCH,IGNITION (Incl. Key)

4110264

$104.24

34

KEY SWITCH KEY COVER

5433534

$12.35

35

Nut

7080229

$19.99

36

CLIP-SCREW,#8/10,.03-.10,PANEL

7670127

$9.59

37

SENSOR,HALLEFFECT

4010298

$111.99

37

CAP-HALL SENSOR

5132382

$23.99

38

Screw

7517658

$5.59
