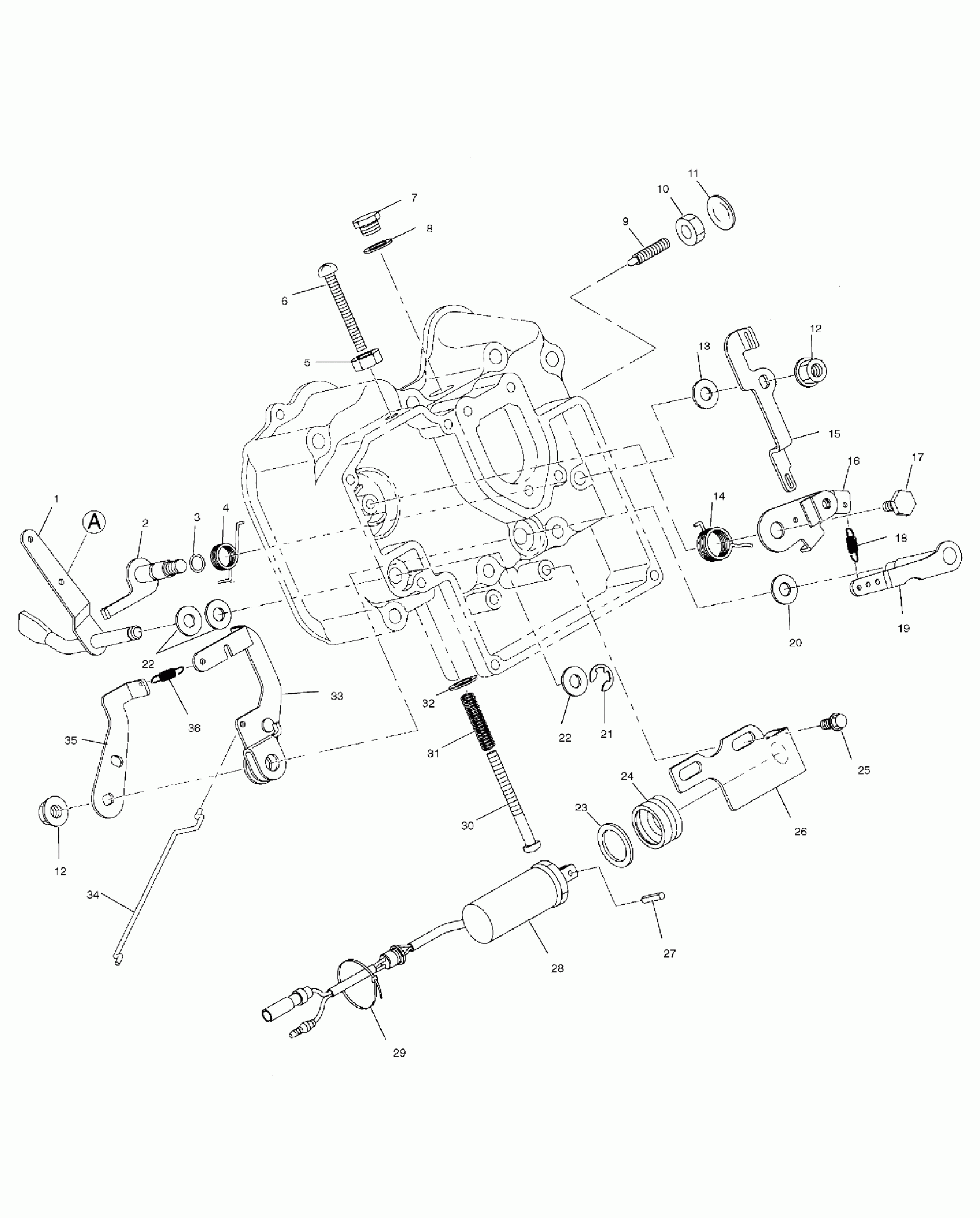

Polaris DIESEL - A10CH46CA GOVERNOR - A10CH46CA (4964376437D009) Diagram

#

Description
Price

1

LEVER 4,GOVERNOR

3086032

Unavailable

2

STOPPER

3086166

$41.27

3

O-RING

3086054

$2.46

4

SPRING,RETURN,STOP

3086046

$4.92

5

NUT(10)

3084375

Unavailable

6

SCREW

3086056

$0.63

7

PLUG

3084860

$7.14

8

GASKET

3084861

$4.84

9

SCREW-ADJUSTING

3086164

Unavailable

10

NUT(10)

3084912

$3.97

11

PLUG,BLIND

3086038

$2.14

12

NUT-FLANGE(10)

3082910

Unavailable

12

NUT-FLANGE(10)

3082910

Unavailable

13

WASHER(10)

3080356

Unavailable

14

SPRING-RETURN

3086189

Unavailable

15

LEVER,STOPPER

3086045

$13.89

16

CONTROL,SPEED

3086042

$19.68

17

PIVOT,LINK

3086052

$2.63

18

SPRING,GOVERNOR

3087095

$4.92

19

LEVER 3-GOVERNOR

3086165

$49.21

20

SPACER

3086168

Unavailable

21

CLIP(10)

3086053

$3.97

22

WASHER(10)

3080142

Unavailable

22

WASHER(10)

3080142

Unavailable

23

SPACER

3086050

$2.14

24

BOOT,PLANGER

3086051

$14.92

25

BOLT, FLANGE(10) Substituted by 3087035

3083568

$3.97

26

BRACKET,SOLENOID

3086047

$9.05

27

SPRING,PIN

3086049

Unavailable

28

SOLENOID ASM.

3086167

Unavailable

29

Band, Wire

3084823

$12.94

30

SCREW

3086055

Unavailable

31

SPRING,CONTROL

3086057

Unavailable

32

WASHER(10)

3080078

Unavailable

33

LEVER 1-GOVERNOR

3086163

Unavailable

34

ROD-GOVENOR

3087096

Unavailable

35

LEVER 2,GOVERNOR

3086033

Unavailable

36

SPRING-GOVENOR

3086036

$1.98
