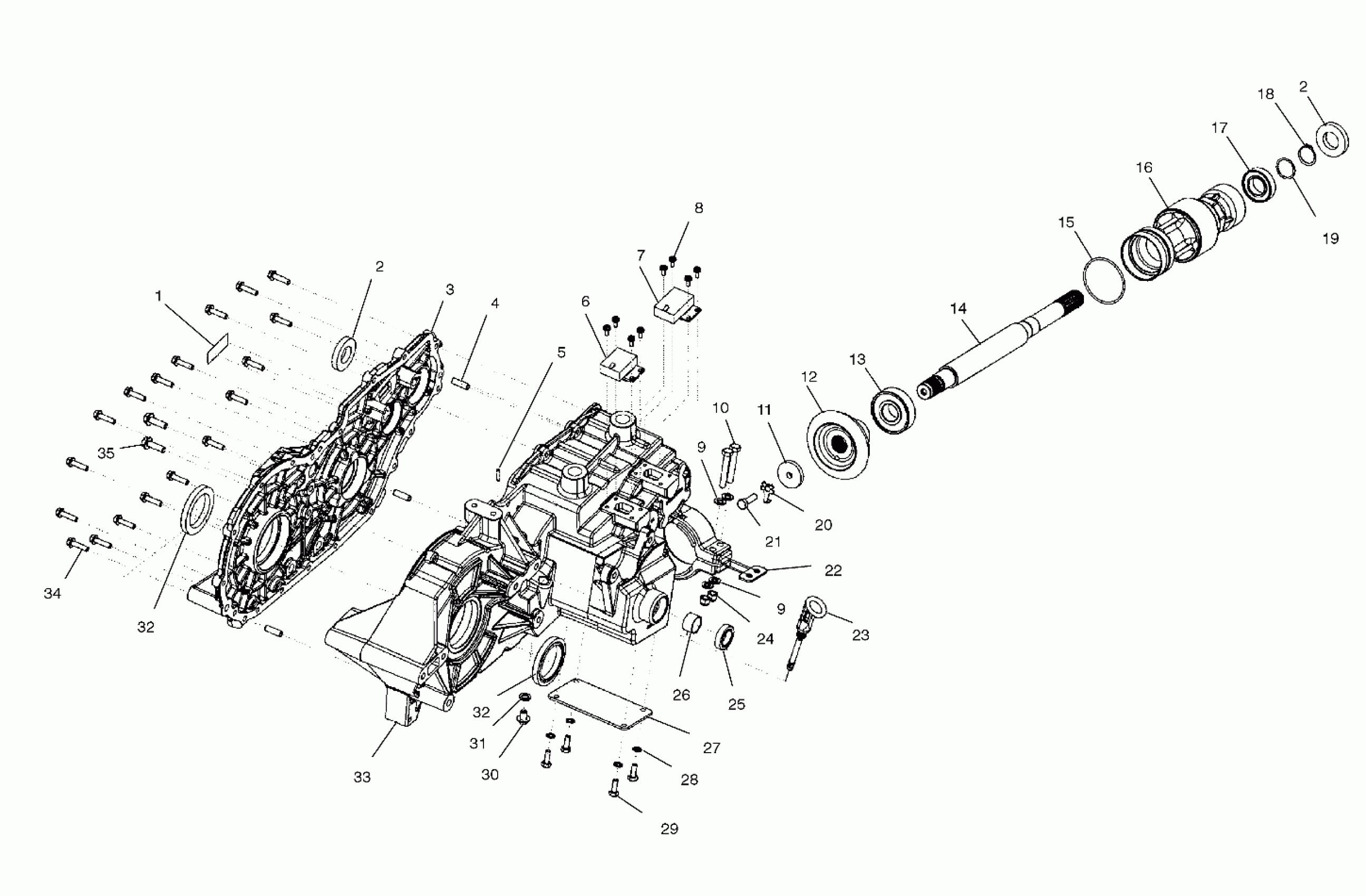

Polaris DIESEL - A10CH46CA GEARCASE (Cases and Snorkel) - A10CH46CA (4964376437C012) Diagram

#

Description
Price

-

Asm., Gearcase (See Gearcase, Internal Components Pg. C14)

-------

Unavailable

1

DECAL-SWITCH

3233636

Unavailable

2

Seal

3233248

$30.88

2

Seal

3233248

$30.88

3

GEARCASE-LH

3233778

Unavailable

4

PIN, DOWEL

3233247

$7.19

5

Vent

3233037

Unavailable

6

SWITCH-H/R,ITW

3233635

Unavailable

7

SWITCH,ITW 2 POSITION

3233617

Unavailable

8

SCREW

3233749

$5.59

9

Washer (See Gearcase, Internal Components Pg. C14, Ref. 10)

-------

Unavailable

9

Washer (See Gearcase, Internal Components Pg. C14, Ref. 10)

-------

Unavailable

10

BOLT

3233442

$2.23

11

Washer

3233352

$1.83

12

GEAR,31T,SNORKEL

3233476

Unavailable

13

Ball Bearing (See Gearcase, Internal Components Pg. C14, Ref. 31)

-------

Unavailable

14

SHAFT,SNORKEL

3233446

Unavailable

15

O-Ring

3233302

Unavailable

16

TUBE,SNORKEL

3233750

$189.59

17

BEARING,BALL

3233305

$31.99

18

RING,RETAINING

3233306

$4.79

19

SPACER (1.180x.995x.008) NOTE: Ref. 19 Indicates choices, may also be used in combinations.

3233357

$21.99

19

SPACER (1.180x.995x.040)

3233355

$2.63

19

SPACER (1.180x.995x.010)

3233353

$2.55

19

SPACER (1.180x.995x.025)

3233354

$2.55

19

SPACER (1.180x.995x.005)

3233356

$2.62

20

BOLT,LOCK SNORKEL GEAR

3233444

$2.39

21

Bolt

3233351

$1.99

22

SPACER-SNORKLE CLAMP

3233779

$3.27

23

Dipstick

3233475

Unavailable

24

NUT,FLEXLOCK

3233291

$3.03

25

Seal

3233293

Unavailable

26

Bushing

3233292

$31.99

27

PLATE,COVER

3233294

$11.59

28

WASHER,LOCK

3233295

$1.99

29

Screw

3233296

Unavailable

30

PLUG-HEX FLANGE

3233777

$34.99

31

PLUG, WASHER

3233254

$7.99

32

Seal

3233256

Unavailable

32

Seal

3233256

Unavailable

33

GEARCASE-RH

3233776

$984.99

34

Screw

3233026

$6.46

35

Screw

3233252

$5.27
