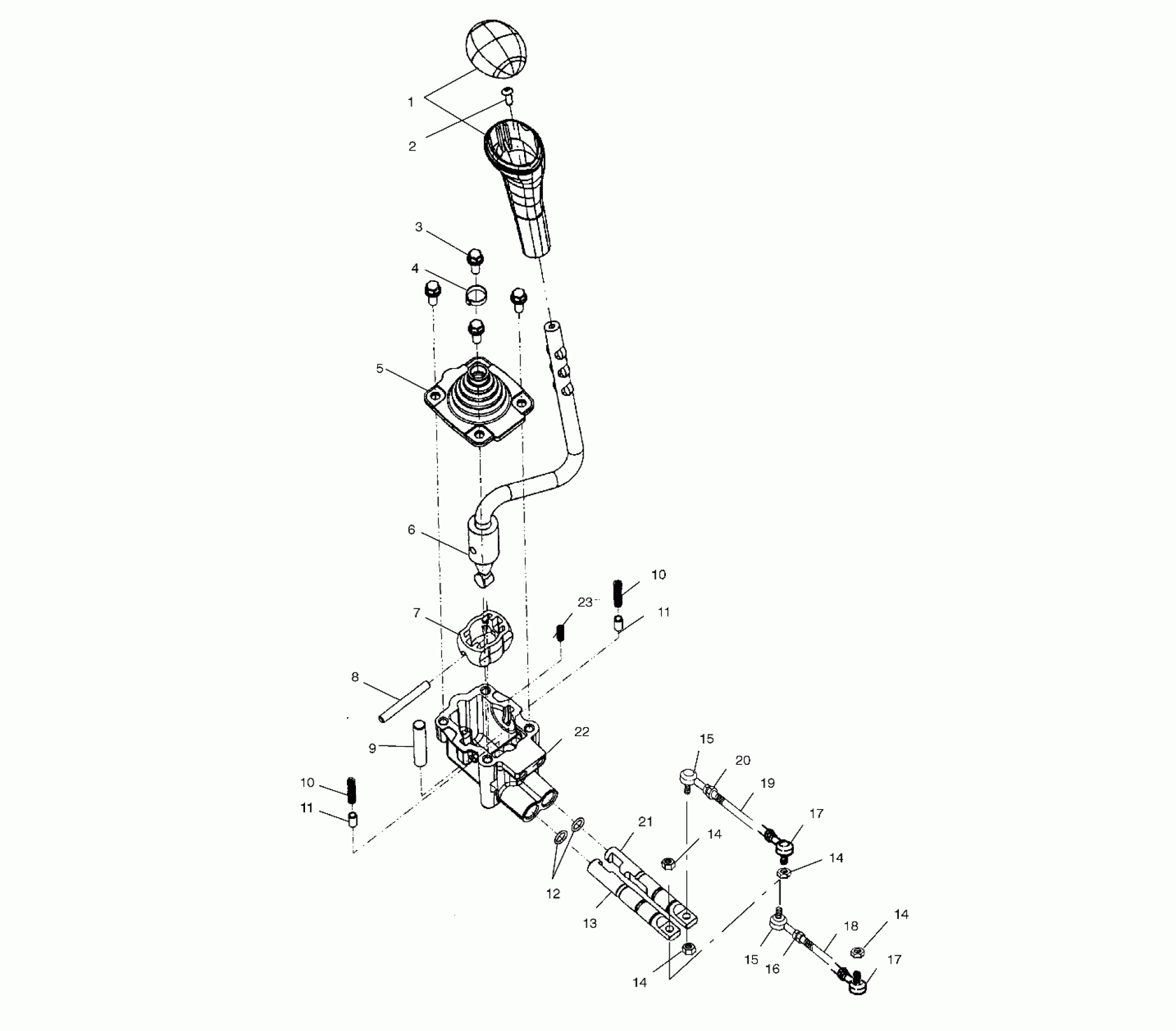

Polaris DIESEL - A10CH46CA GEAR SELECTOR - A10CH46CA (4964376437D002) Diagram

#

Description
Price

-

SELECTOR ASM,GEAR (Incl. 1-13,21-23)

1341271

Unavailable

1

KNOB ASM,HI/LO/REV. Substituted by 3233195-070

3233195

Unavailable

2

SCREW,(10)

7512024

$4.76

3

Screw

3233649

Unavailable

4

Strap, Wire

3233131

$9.70

5

COVER-GEAR SELECTOR BOOT

3233648

$37.99

6

SUBASM-HANDLE GEAR SELECTOR

3233658

Unavailable

7

PLASTIC-SPHERE

3233646

$16.14

8

PIN-DOWEL

3233754

$9.49

9

PIN-DOWEL

3233644

$7.99

10

SPRING-DETENT

3233642

$16.99

10

SPRING-DETENT

3233642

$16.99

11

BULLET,DETENT

3233060

$69.99

11

BULLET,DETENT

3233060

$69.99

12

O-RING

3233076

$6.46

13

SLIDE-LOW

3233639

Unavailable

14

NUT(10) Substituted by 7546703

7546707

$1.19

14

NUT(10) Substituted by 7546703

7546707

$1.19

14

NUT(10) Substituted by 7546703

7546707

$1.19

14

NUT(10) Substituted by 7546703

7546707

$1.19

15

ROD END,RH,6MM.

7061014

$75.99

15

ROD END,RH,6MM.

7061014

$75.99

16

NUT(10)

7546702

$1.19

17

ROD END,LH,6MM.

7061013

$75.99

17

ROD END,LH,6MM.

7061013

$75.99

18

ROD,SHIFT LINKAGE,14.55

5132198

$29.52

19

ROD,SHIFT LINKAGE

5020743

Unavailable

20

NUT(10)

7546701

$3.97

21

SLIDE-HIGH/REV

3233640

Unavailable

22

GEAR,SELECTOR,BODY

3233641

Unavailable

23

SPRING-CENTERING

3233643

$56.99
