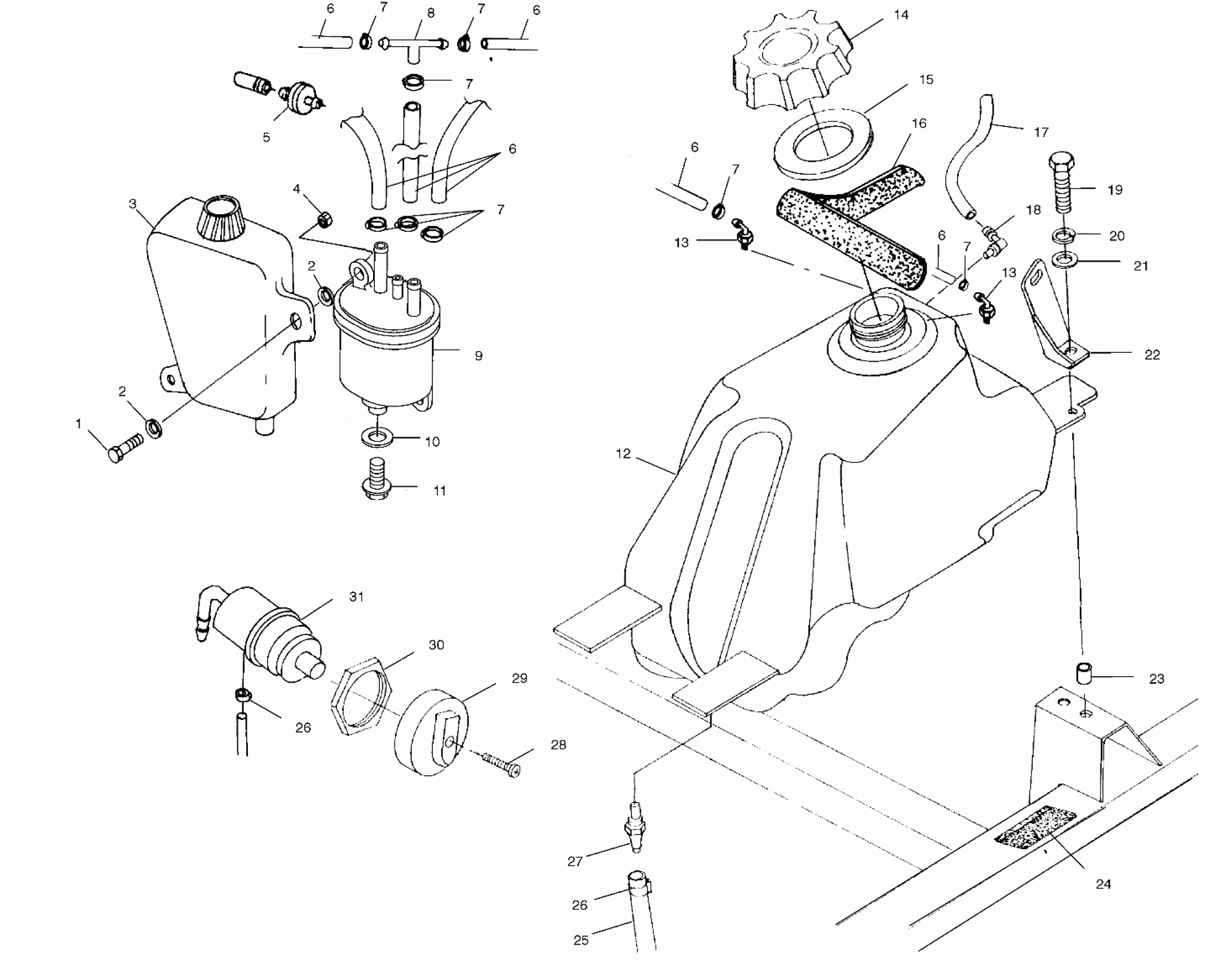

Polaris DIESEL - A10CH46CA FUEL TANK - A10CH46CA (4964376437A012) Diagram

#

Description
Price

1

SCR-#10-24X3/4,PN/TR RD-TORX-Y

7512018

$3.19

2

WSHR-.194X.475X.049 ZTB

7555746

Unavailable

2

WSHR-.194X.475X.049 ZTB

7555746

Unavailable

3

Tank, Surge

-------

Unavailable

4

NUT(10)

7541925

$1.49

5

VALVE,CHECK

3085973

$16.35

6

FUEL LINE,3/16 ID(600 CM.)

8450042-600

Unavailable

6

FUEL LINE,3/16 ID(600 CM.)

8450042-600

Unavailable

6

FUEL LINE,3/16 ID(600 CM.)

8450042-600

Unavailable

6

FUEL LINE,3/16 ID(600 CM.)

8450042-600

Unavailable

6

FUEL LINE,3/16 ID(600 CM.)

8450042-600

Unavailable

7

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

7

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

7

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

7

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

7

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

7

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

8

CONNECTOR-T

3086091

$3.99

9

FUEL,FILTER,ASM. *

3086088

Unavailable

10

PACKING

3086090

$3.35

11

PLUG

3086089

$2.79

12

TANK,FUEL (Incl. 13,18,27)

1240056

Unavailable

13

ELBOW, TUBE

7052055

$4.95

13

ELBOW, TUBE

7052055

$4.95

14

FUEL GAUGE CAP

2871442

$17.76

15

GASKET-GAS CAP

5810144

$5.59

16

SEAL-FOAM,21 IN

5811310

Unavailable

17

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

18

Vent, Tank

5431053

$19.99

19

BOLT(10)

7512247

$2.39

20

LOCK WASHER(10)

7552801

$1.59

21

WASHER(10)

7558301

$1.49

22

BRKT,LH.R.FUELCOVER,BLK.

5222154-067

Unavailable

22

BRKT,RH.R.FUELCOVER,BLK.

5222155-067

Unavailable

23

NUTSERT,HEX(10)

7547069

$3.99

24

PAD,FUELTANK BRKT. Substituted by 8360026

5810317

Unavailable

25

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

26

HOSE CLAMP, RED

7080003

$1.49

26

HOSE CLAMP, RED

7080003

$1.49

27

FITTING-FUEL OUTLET

7052246

Unavailable

28

SCREW(10)

7517505

$1.59

29

KNOB,FUEL VALVE

5432559

$10.39

30

NUT,FUELVALVE,ATV

5432733

Unavailable

31

VALVE,ON/OFF

7052159

$43.99
