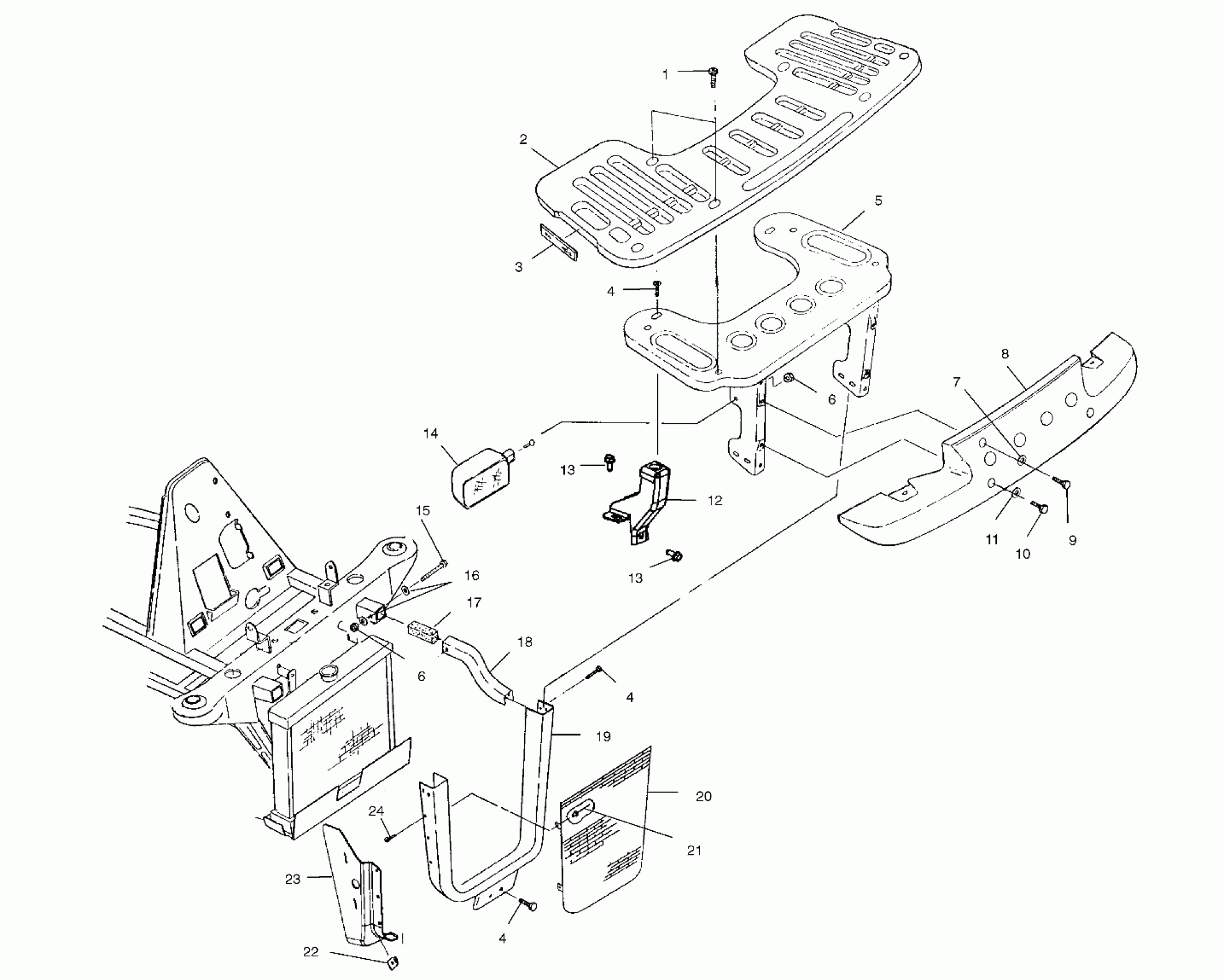

Polaris DIESEL - A10CH46CA FRONT RACK and BUMPER MOUNTING - A10CH46CA (4964376437A007) Diagram

#

Description
Price

1

SCREW

7517685

$1.59

2

Asm., Rack, Front (Incl. Ref. 3 & Warning Decal) (Incl. Ref. 3 & Warning Decal)

2670180-070

Unavailable

3

Reflector, Amber (If built before 4/30/01) (If built before 4/30/01)

2670071

Unavailable

3

Decal, Reflector, Amber (If built after 4/30/01) (If built after 4/30/01)

7079926

Unavailable

4

SCREW

7515399

$1.19

4

SCREW

7515399

$1.19

4

SCREW

7515399

$1.19

5

Kit, Front Rack Mount

2200775

Unavailable

6

NUT-5/16-18 NYLOK-Y

7542324

$0.79

6

NUT-5/16-18 NYLOK-Y

7542324

$0.79

7

Washer

7558403

$4.76

8

Bumper

5432155-070

$142.86

9

Screw

7515391

$4.84

10

Screw

7515390

Unavailable

11

WASHER

7555954

$4.76

12

Support, Front Rack, LH

1013744-067

Unavailable

12

Support, Front Rack, RH

1013746-067

$94.99

13

SCREW

7512232

$1.19

13

SCREW

7512232

$1.19

14

Bulb, Replacement, 27W

4030059

Unavailable

14

Headlight, LH

2431014

Unavailable

14

Headlight, RH

2431015

Unavailable

15

Bolt

7512329

$3.97

16

WASHER-.344X.688X.063 FL-Y

7558402

$0.99

17

PLUG, FRAME

5810467

Unavailable

18

Extension, Frame, LH

5244729-067

$90.74

18

Extension, Frame, RH

5244730-067

$79.74

19

Guard, Brush

5244731-067

Unavailable

20

Grill, Brush Guard

5240591-067

$62.99

21

Rivet, Pop

7621330

$1.19

22

Nut, U-Type

7670094

$5.56

23

Shield, Side, Radiator, LH

5433923

$32.37

23

Shield, Side, Radiator, RH

5433924

$32.37

24

Screw

7512097

$3.97
