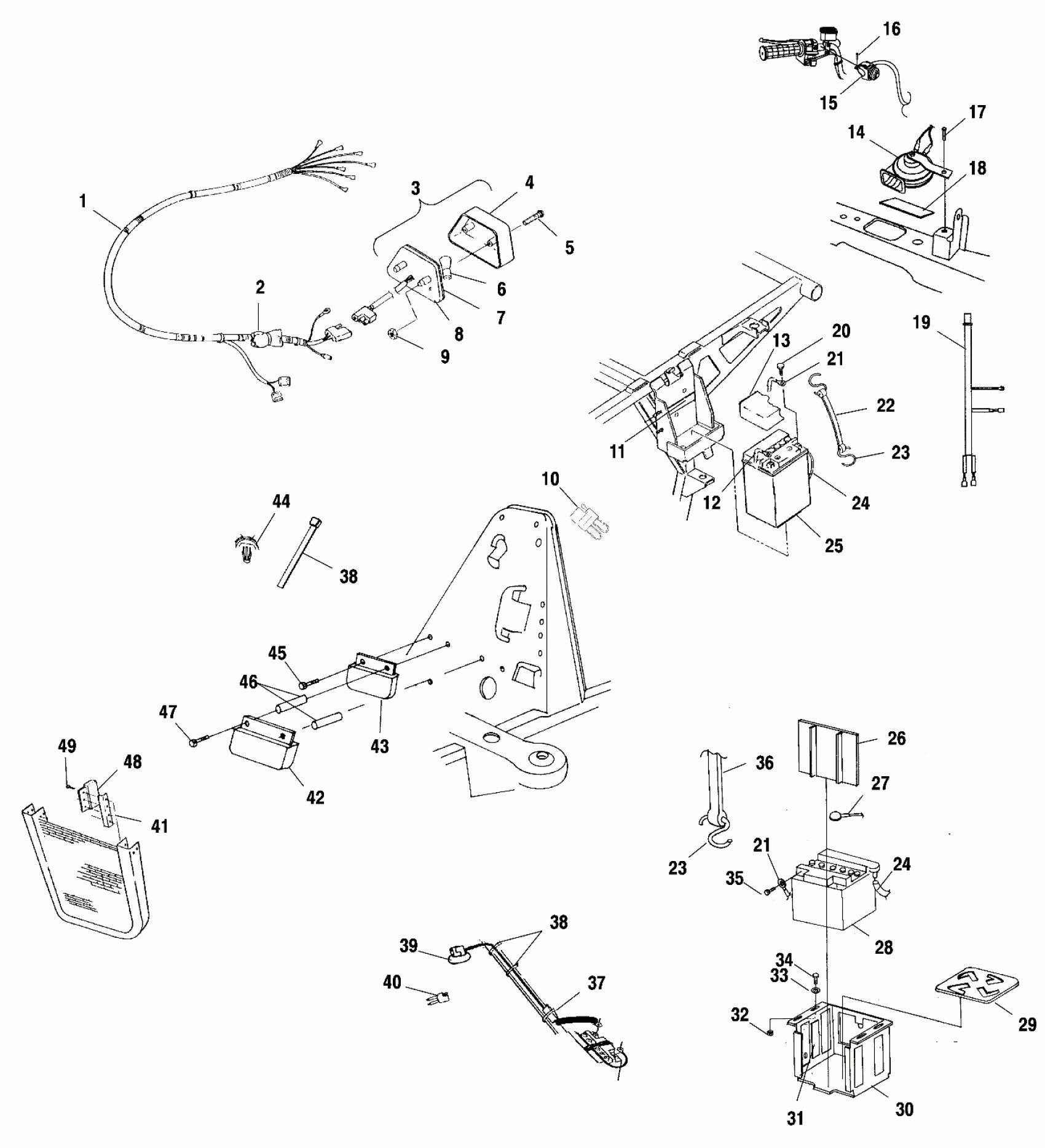

Polaris DIESEL - A10CH46CA ELECTRICAL/TAILLIGHT - A10CH46CA (4964376437C003) Diagram

#

Description
Price

1

Harness, Main

2460893

$291.99

2

Kit, Circuit Breaker, 20 AMP

2200593

$63.99

3

Asm., Taillight w/Brake Light (Incl. 4-9) (Incl. 4-9)

2432034

$55.99

4

Lens, Taillight

4032046

$32.37

5

Screw, Taillight

4032029

$4.79

6

Bulb, Taillight

4030043

$6.46

7

Gasket, Taillight

4032045

$4.03

8

Backing, Taillight/Brake Light

4032064

$83.99

9

SPEED NUT-WASHER, HEAD-1/4

7670054

$1.49

10

Harness, Jumper

2460731

$7.43

11

PAD-BATTERY

5810290

$7.27

12

Cable, Battery, Red

4010148

$19.68

13

Cover, Battery

5431769

$14.39

14

Horn

4010310

Unavailable

15

Switch, Horn

4010311

$59.99

16

SCREW

7517386

$1.49

17

Screw

7512057

$2.38

18

Pad, Fuel Tank Bracket

5810317

Unavailable

19

Harness, Horn

2460837

Unavailable

20

Kit, Battery Bolt, Long

2200360

$9.59

21

Cable, Battery/Battery, Black

4010199

$12.39

21

Cable, Battery/Battery, Black

4010199

$12.39

22

Strap, Battery Holddown

5410424

Unavailable

23

Hook, Battery Strap

7010032

$1.59

23

Hook, Battery Strap

7010032

$1.59

24

Tube, Vent, Battery

5432077

Unavailable

24

Tube, Vent, Battery

5432077

Unavailable

25

Battery

4140006

$99.99

26

Retainer, Battery

5432840

$15.83

27

Cable, Battery/Battery, Red

4010197

$12.39

28

Battery, 30 AMP

4140012

Unavailable

29

Pad, Battery

5811623

$2.95

30

Battery Box

1040665-067

Unavailable

31

Pad, Battery, Side

5811651

Unavailable

32

Nut, Nylok

7542122

$1.49

33

Washer, Flat

7558301

$1.49

34

SCREW

7512130

$3.99

35

Kit, Battery Bolt

2201155

$1.49

36

Strap, Battery Hold Down

5411456

Unavailable

37

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

38

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

38

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

39

Plug, Power, 12V

2410022

Unavailable

40

PIGTAIL, POWER

2460442

$12.39

41

Sink, Heat

5131036

Unavailable

42

Anti-Rev. Rotational Mod LR500

4010215

$91.19

43

Cut-Off, LR58, 12VDC

4060202

Unavailable

44

MOUNT, CABLE TIE

7080965

$7.19

45

SCREW

7512024

$4.79

46

Spacer

5020864

Unavailable

47

SCREW

7512025

$4.79

48

Regulator/Rectifier

4010182

$135.30

49

SCR-#10-24X3/4,PN/TR RD-TORX-Y

7512018

$3.19
