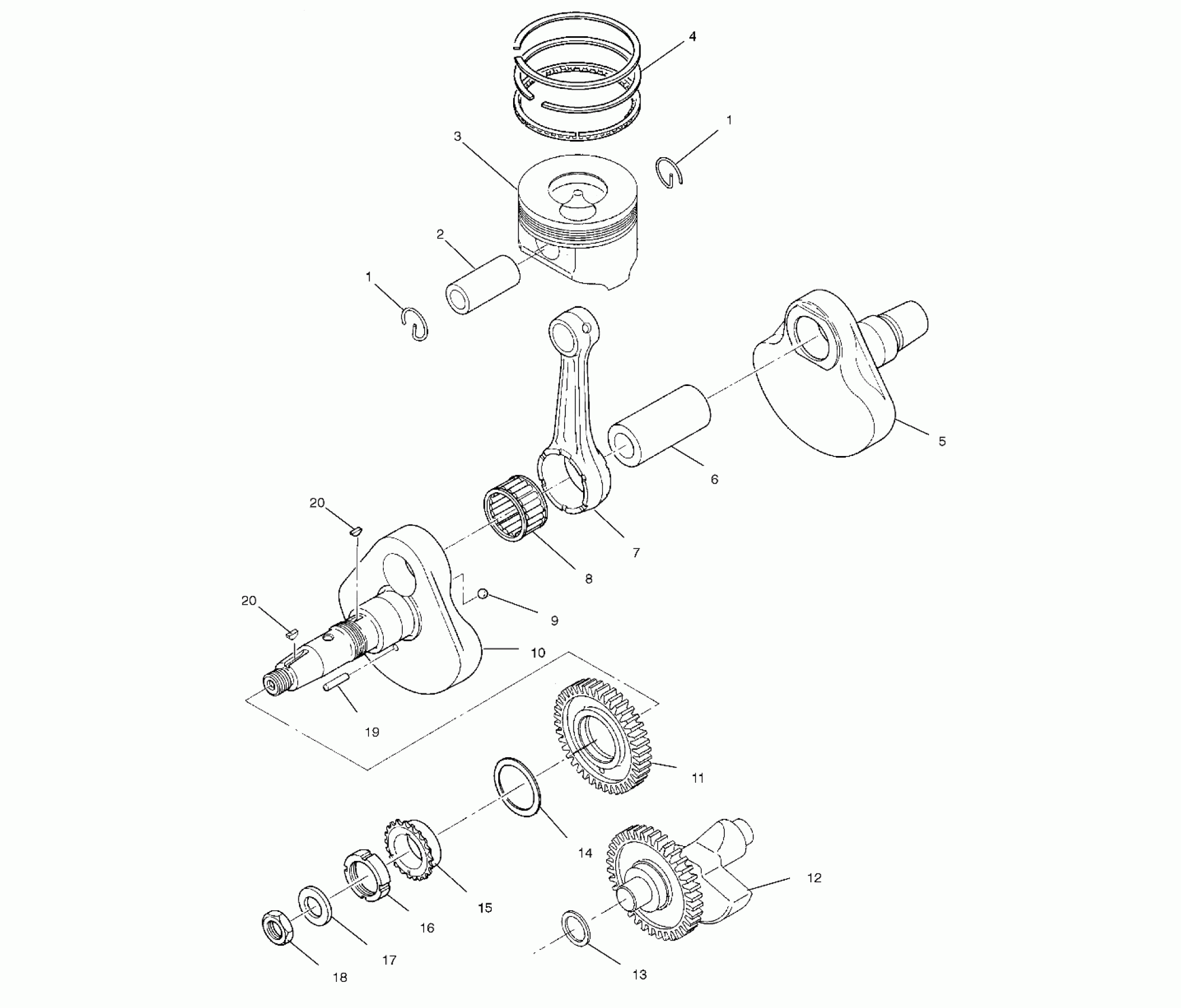

Polaris DIESEL - A10CH46CA CRANKSHAFT and PISTON - A10CH46CA (4964376437D004) Diagram

#

Description
Price

1

CIRCLIP(10)

3085987

$0.98

1

CIRCLIP(10)

3085987

$0.98

2

PIN,PISTON

3084886

Unavailable

3

PISTON SET (STD) (Std) (Incl. 1)

3086186

Unavailable

3

PISTON SET (.25 O/S) (0.25mm O/S) (Incl. 1)

3086187

Unavailable

3

PISTON SET (.50 O/S) (0.50mm O/S) (Incl. 1)

3086188

Unavailable

4

PISTON,RING(STD) (Std)

3085984

Unavailable

4

RING,PISTON SET.25 O/S (0.25mm O/S)

3085985

Unavailable

4

PISTON,RING,SET (0.50mm O/S)

3085986

Unavailable

5

CRANKSHAFT#2,PTO SIDE

3085374

$338.29

6

PIN-CRANK

3087090

$109.27

7

ROD,CONNECTING

3085978

Unavailable

8

BEARING,LARGE END Substituted by 3085343

3085400

$78.56

9

BALL, STEEL

3085024

$6.46

10

ASM-CRANKSHAFT (Incl. 5-11,19)

3087088

Unavailable

10

CRANKSHAFT 1

3087089

Unavailable

11

GEAR-1,BALANCE

3087091

$79.37

12

SHAFT-BALANCE

3087094

$198.32

13

SPACER (1.2)

3084897

$6.35

13

SPACER (0.8)

3084895

$6.35

13

SPACER (1.0)

3084896

$6.35

14

SPACER,0.4 (0.4)

3086888

Unavailable

14

SPACER,0.6 (0.6)

3086889

$4.52

14

SPACER,0.8 (0.8)

3086890

Unavailable

14

SPACER,1.0 (1.0)

3086891

Unavailable

15

SPROCKET 1

3087092

$21.27

16

NUT

3085980

$19.79

17

WASHER Substituted by 3086767

3083904

Unavailable

18

LOCKNUT

3083905

Unavailable

19

Pin, Dowel

3085346

Unavailable

20

KEY, WOODRUFF

3240168

$24.27

20

KEY, WOODRUFF

3240168

$24.27
