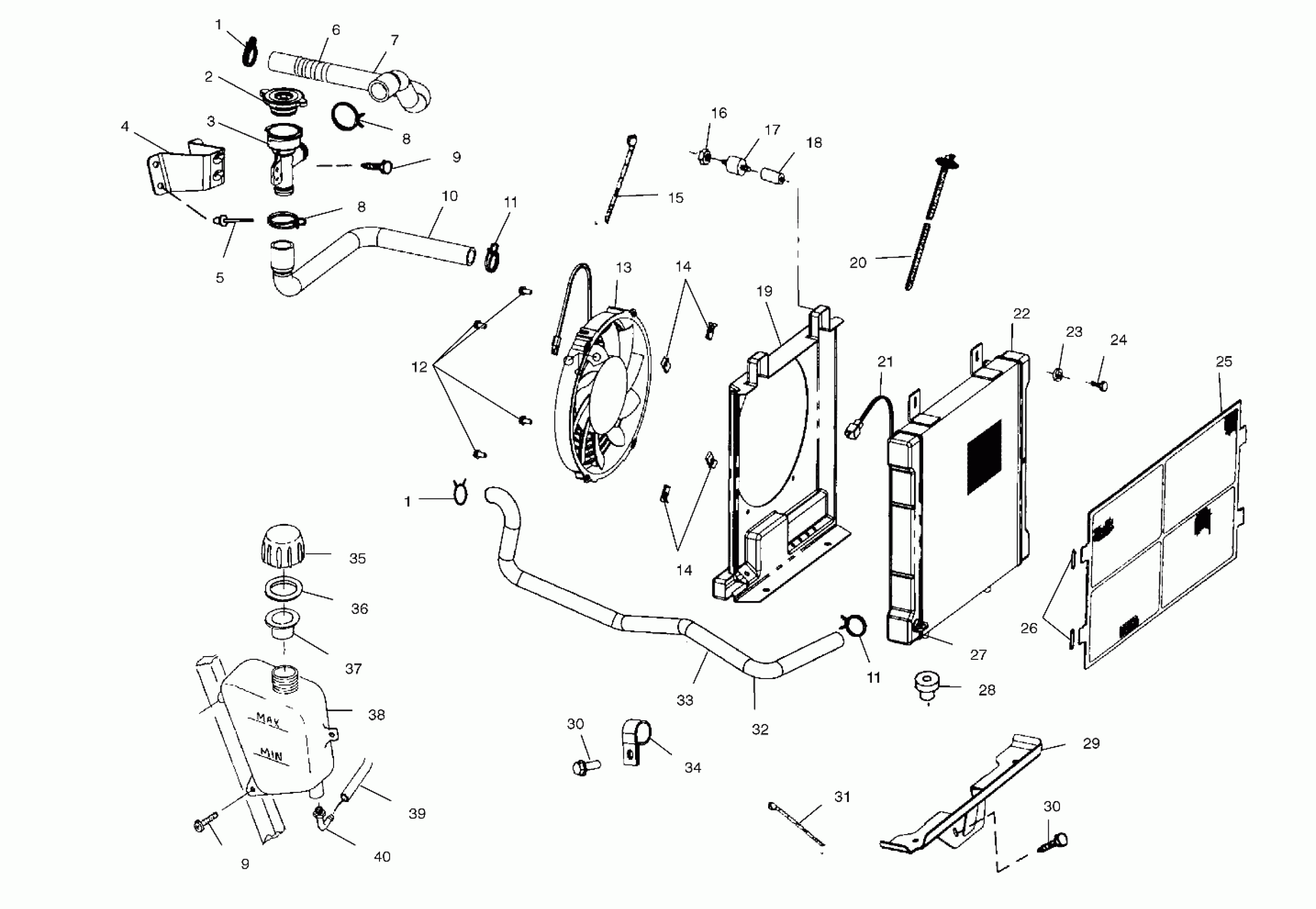

Polaris DIESEL - A10CH46CA COOLING SYSTEM - A10CH46CA (4964376437A009) Diagram

#

Description
Price

1

CLAMP, HOSE

7080696

$5.56

1

CLAMP, HOSE

7080696

$5.56

2

Cap, Pressure

1240044

$48.56

3

Filler, Coolant

5433364

$48.40

4

Bracket, Filler, Coolant

5243505-067

Unavailable

5

Rivet

7661638

$1.19

6

Flexguard

5433948

Unavailable

7

Hose, Engine, Upper

5411783

$68.79

8

Clamp, 1"

7080827

Unavailable

8

Clamp, 1"

7080827

Unavailable

9

Screw

7512084

$1.19

9

Screw

7512084

$1.19

10

Hose, Filler Neck

5411632

Unavailable

11

Clamp

7080826

$4.76

11

Clamp

7080826

$4.76

12

Screw

7517659

$3.97

13

Asm., Fan and Motor

2410123

$214.69

14

U-Clip

7670111

Unavailable

14

U-Clip

7670111

Unavailable

15

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

16

Nutsert

7547069

$3.97

17

Mount, Rubber

3110032

Unavailable

18

Spacer

5020572

$8.73

19

Shroud, Fan

5433059

Unavailable

20

Cable Tie

7080890

$5.71

21

Sensor, Thermal w/Harness

4010161

$128.24

22

Radiator

1240045

Unavailable

23

Washer, Split Lock

7552605

$5.69

24

Screw

7512113

$3.97

25

Cover, Radiator

5433317

$35.08

26

O-Ring

5410607

Unavailable

27

Valve, Drain

7052296

Unavailable

28

BUSHING-MOUNT,LOWER RADIATOR

5410584

$5.56

29

Bracket, Radiator, Lower

5243503-067

$154.99

30

SCREW

7517386

$1.19

30

SCREW

7517386

$1.19

31

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

32

Hose, Engine, Lower

5411782

Unavailable

33

Guard, Hose, Plastic

5521550

$10.51

34

CLAMP-HOSE

7080807

$9.52

35

CAP-OVER FLOW BOTTLE,DRILLED

5430743

$5.65

36

GASKET-OVERFLOW CAP

5810279

$2.41

37

PLUG-CAP 9X(GREEN) FLEX TEMP

5433774

$5.65

38

Tank, Surge

5432855

$26.98

39

Line, Fuel

8450003-1525

$89.99

40

Fitting, Barbed, 90 Degree

7052065

$7.14
