Description

Price

1

Bracket, Clutch Cover, Rear

1040519-067

Unavailable

2

BOLT

7512240

$3.99

3

Seal, Clutch Cover, Transmission

5410489

$13.59

4

Kit, Inner Clutch Cover (Incl. 10,12,21,22) (Incl. 10,12,21,22)

2201851

$125.46

5

WASHER-.28X.62-.14(RBR-BK)-Z

7555748

$4.79

6

Washer, Split Lock

7552605

$5.27

7

Bolt

7512247

$2.39

8

Bolt

7512277

$4.79

9

Screw

7512278

Unavailable

10

Seal, Clutch Cover

5521301

$30.88

11

Cover, Clutch, Outer

5433451-070

$178.08

12

SCREW

7512094

$1.59

12

SCREW

7512094

$1.59

13

Decal, Clutch Cover

7078689

Unavailable

14

Decal, "Automatic/EBS", Clutch

7077666

Unavailable

15

CABLE-TIE,10-102MM,WEATH.-RES.

7080761

$2.39

16

Boot, Duct

5411489

Unavailable

17

Duct, Air Outlet

5433980

Unavailable

18

SCREW

7512232

$1.49

18

SCREW

7512232

$1.49

19

Bolt & Washer

3084205

$3.99

20

Bracket, Clutch, Seal

5242046-067

$34.74

21

Seal, Cover Case

5410575

Unavailable

22

Screw

7512095

$4.79

23

Bracket, Clutch Cover

5241156-067

Unavailable

24

Washer

7555935

$2.39

25

Clamp, Narrow Band

7080511

$4.79

26

Duct, Air Inlet, Clutch (See Airbox Pg. A13, Ref. 7) (See Airbox Pg. A13, Ref. 7)

-------

Unavailable

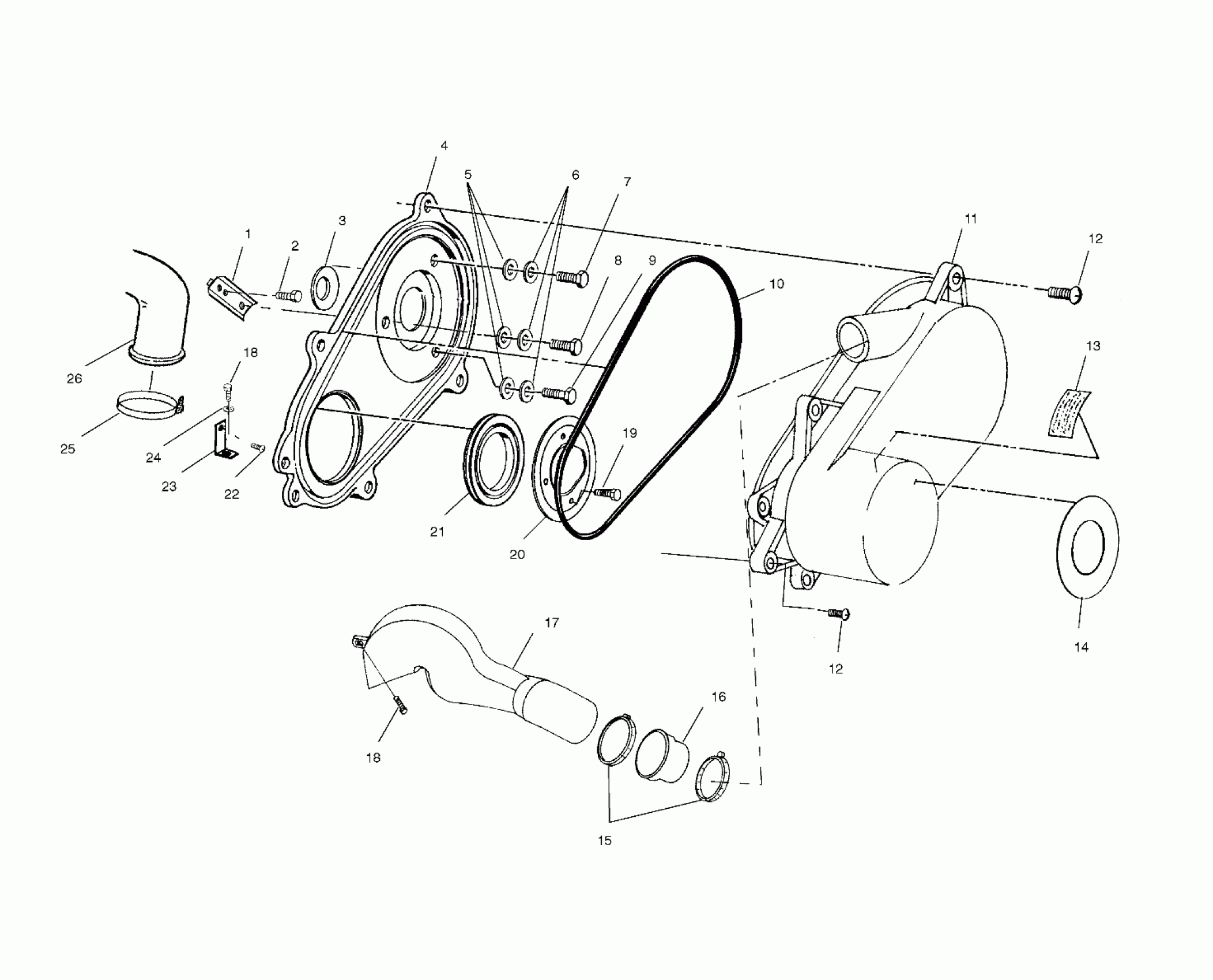

Polaris DIESEL - A10CH46CA CLUTCH COVER - A10CH46CA (4964376437C002) Diagram

Bracket, Clutch Cover, Rear

BOLT

Seal, Clutch Cover, Transmission

Kit, Inner Clutch Cover (Incl. 10,12,21,22) (Incl. 10,12,21,22)

WASHER-.28X.62-.14(RBR-BK)-Z

Washer, Split Lock

Bolt

Bolt

Screw

Seal, Clutch Cover

Cover, Clutch, Outer

SCREW

SCREW

Decal, Clutch Cover

Decal, "Automatic/EBS", Clutch

CABLE-TIE,10-102MM,WEATH.-RES.

Boot, Duct

Duct, Air Outlet

SCREW

SCREW

Bolt & Washer

Bracket, Clutch, Seal

Seal, Cover Case

Screw

Bracket, Clutch Cover

Washer

Clamp, Narrow Band

Duct, Air Inlet, Clutch (See Airbox Pg. A13, Ref. 7) (See Airbox Pg. A13, Ref. 7)
