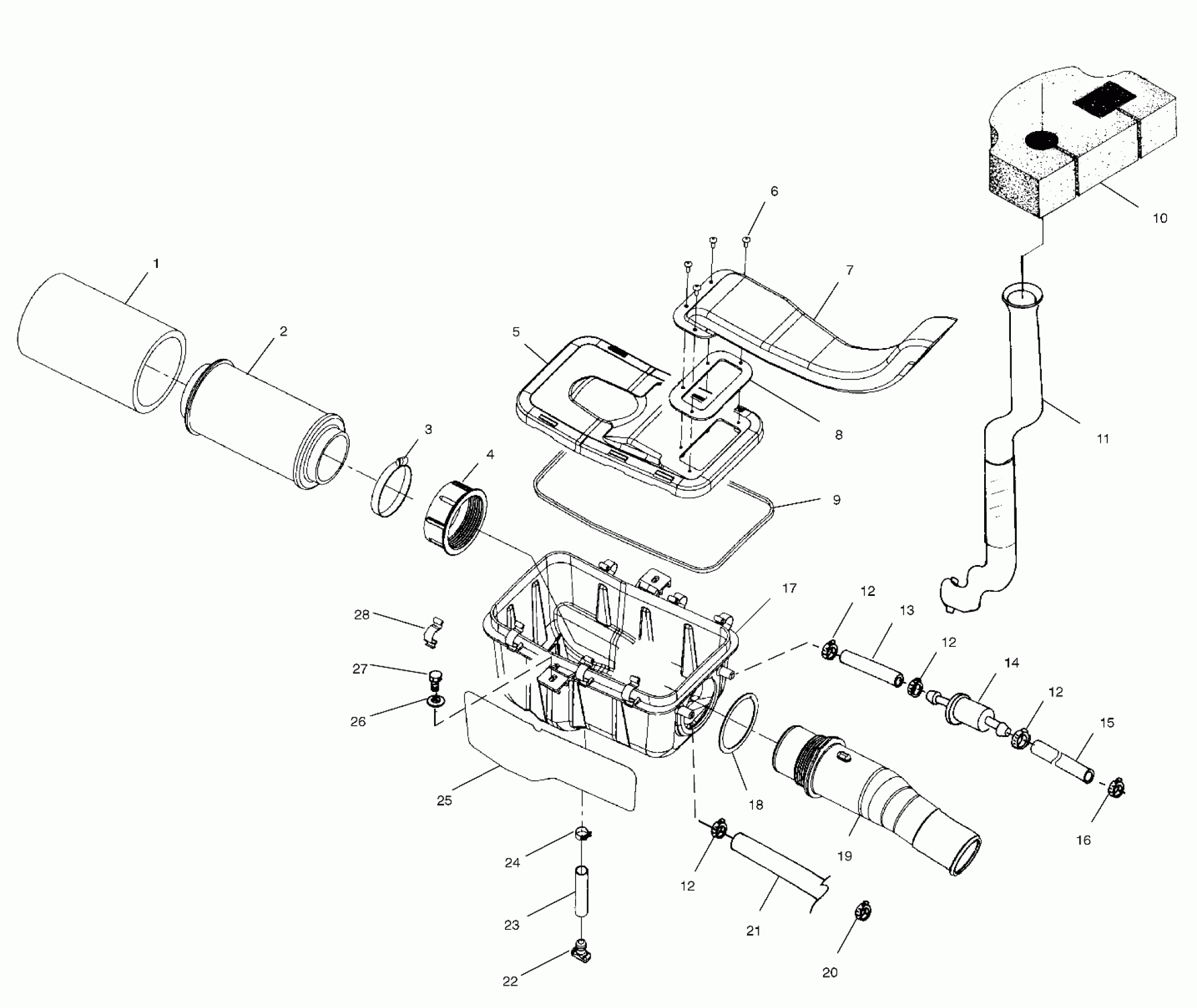

Polaris DIESEL - A10CH46CA AIR BOX - A10CH46CA (4964376437A013) Diagram

#

Description
Price

1

Sleeve, Pre Cleaner

5811633

$11.99

2

FILTER, AIR INTAKE

7080595

Unavailable

3

Clamp, Narrow Band

7080413

$3.19

4

Collar, Carb Inlet

5432601

$12.79

5

Cover, Air Box

5432868

$51.99

6

Screw

7517541

$4.79

7

Duct, Air Inlet

5433293

$69.99

8

Gasket, Intake

5411422

$6.63

9

Seal, Air Box Cover

5811482

Unavailable

10

Seal, Foam

5811626

$31.99

11

Duct, Clutch Air Inlet

5432086

Unavailable

12

Clamp, Hose

7080699

$1.59

12

Clamp, Hose

7080699

$1.59

12

Clamp, Hose

7080699

$1.59

12

Clamp, Hose

7080699

$1.59

13

Line, Breather

8450073-600

Unavailable

14

Filter

2530029

$6.39

15

Hose, Breather

5411921

$174.99

16

Clamp, Hose

7080694

$6.53

17

Box, Air

5432774

$117.37

18

Gasket, Carb Inlet Duct

5830128

Unavailable

19

Duct, Intake Inlet

5432884

Unavailable

20

CLAMP

7080693

$5.59

21

Line, Breather

5411668

Unavailable

22

Plug, Trap

5432377

Unavailable

23

Line, Fuel

8450059-150

Unavailable

24

Clamp, Hose

7080650

$3.99

25

Foil

5811650

Unavailable

26

Washer, Flat

7558301

$1.49

27

Screw

7515179

$2.39

28

CLIP-AIR BOX

5242044

$9.59
