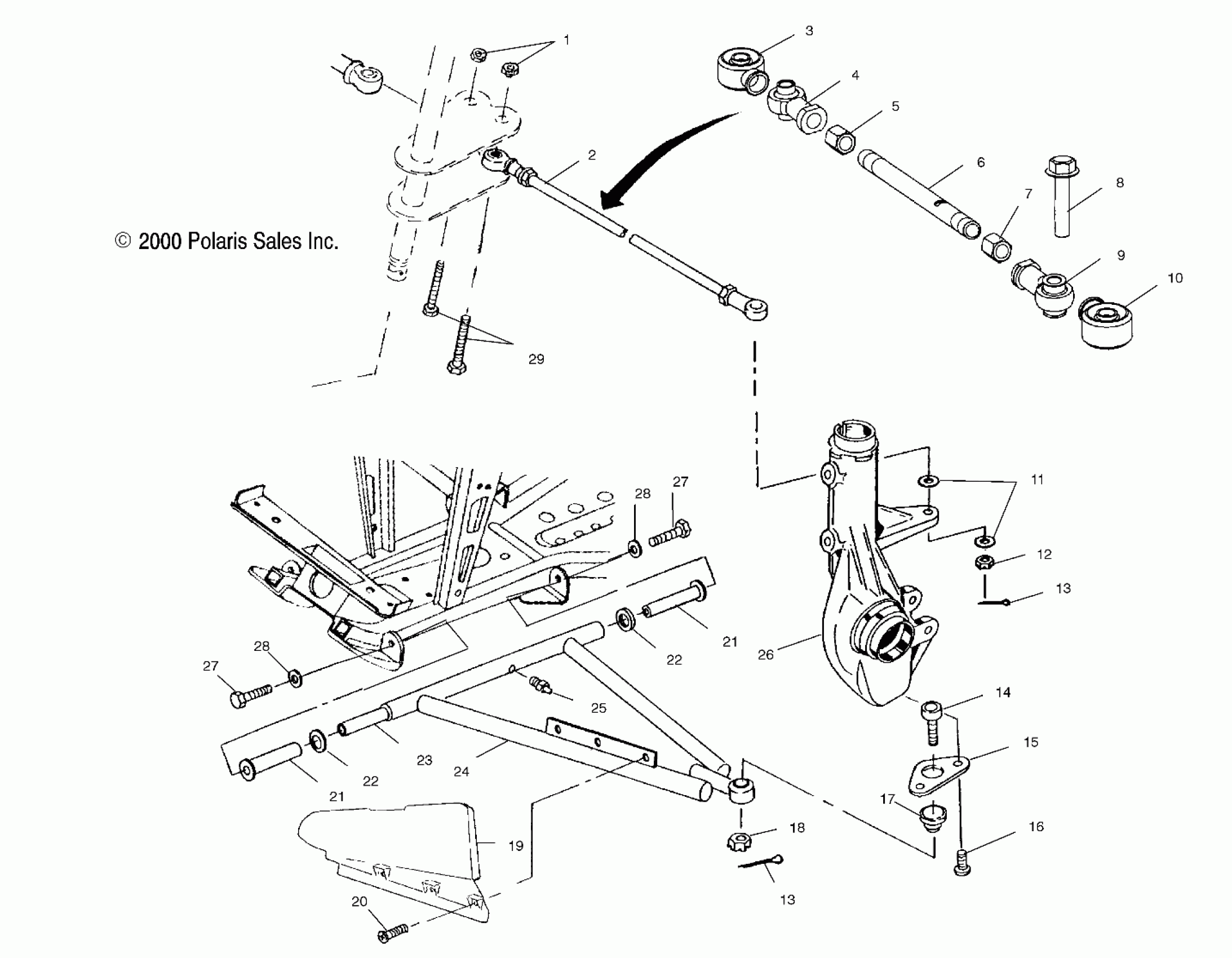

Polaris DIESEL - A10CH46CA A-ARM/STRUT MOUNTING - A10CH46CA (4964376437B013) Diagram

#

Description
Price

1

NUT LOCK(10)

7542403

$3.99

2

TIE,ROD,1/2-20X13.4,ASM. (Incl. 3,4,5,6,7,9,10)

1820805

Unavailable

3

SEAL,BOOT,ROD END,1/2 IN

5411291

Unavailable

4

ROD END,RH

7061034

$54.04

5

NUT-JAM(10)

7542711

$2.39

6

ROD,TIE

5020926

$39.99

7

NUT,LH,JAM(10)

7547028

$2.39

8

Bolt (If built after 1/01/01)

7517909

$5.59

8

BOLT-M10X1.25X57 HX WASH HD Substituted by 7517909 (If built before 1/01/01)

7517674

Unavailable

9

ROD,END,10MM,1/2-20LH,42 DEG

7061054

Unavailable

10

BOOT,SEAL,ROD END,10MM

5411920

Unavailable

11

Washer

7556099

$1.59

12

Nut (If built after 1/01/01)

7547177

$2.39

12

NUT, CASTLE(10) (If built before 1/01/01)

7546904

$4.79

13

PIN COTTER(10)

7661203

$1.49

13

PIN COTTER(10)

7661203

$1.49

14

Joint, Ball (If built after 1/01/01)

7080927

$76.89

14

BALLJOINT,HI-ANGLE Substituted by 7080927 (If built before 1/01/01)

7080673

$76.89

15

BRACKET-BALL JOINT

5211121

$31.99

16

SCR-1/4-20X5/8 FL HX SOC CP-Y

7512284

$1.49

17

Boot, Rubber

5410548

Unavailable

18

NUT-3/8-24 HX CA GR5-Y

7542438

$1.59

19

SHIELD,LH.CV,BLK.

5431837

Unavailable

19

SHIELD,RH.CV,BLK.

5431838

Unavailable

20

SCREW(10)

7512084

$1.49

21

BUSHING,A ARM,LONG

5433066

$5.01

21

BUSHING,A ARM,LONG

5433066

$5.01

22

BUSHING,A-ARM SPACER(10)

5020677

$10.39

22

BUSHING,A-ARM SPACER(10)

5020677

$10.39

23

Shaft, A-Arm

5020681

Unavailable

24

A-FRAME,KIT,LH (1541448)

2201607

$138.99

24

A-FRAME,KIT,RH (1541449)

2201608

$138.99

25

ZERK,FITTING,THREADED(10)

7080433

$1.49

26

Asm., Heavy Hubstrut (See Front Strut Pg. B3, Ref. 16)

-------

Unavailable

27

SCREW(10)

7512492

$1.49

27

SCREW(10)

7512492

$1.49

28

WASHER(10)

7552603

$1.49

28

WASHER(10)

7552603

$1.49

29

BOLT(10)

7515415

$1.49
