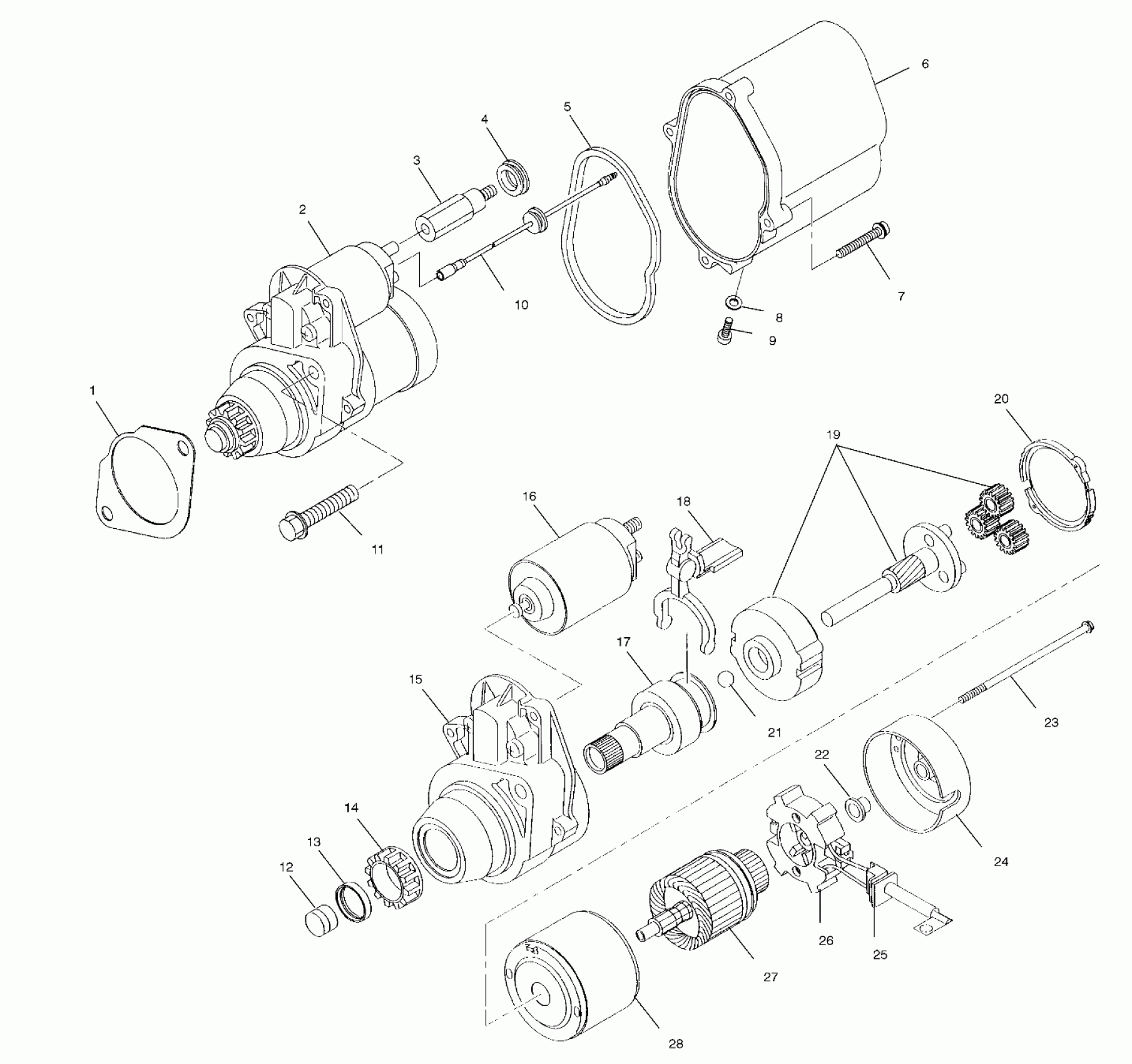

Polaris DIESEL - A00CH46CA STARTING MOTOR - A00CH46CA (4954785478E004) Diagram

#

Description
Price

1

GASKET,MOTOR,STARTING

3086085

$16.35

2

STARTING MOTOR,ASM. (Incl. 12-28)

3086079

Unavailable

3

BOLT [No Longer Available]

3086081

Unavailable

4

GROMMET

3086082

$5.79

5

GASKET,COVER,STARTING

3086084

$15.56

6

COVER,STARTING MOTOR Substituted by 3086079

3086080

Unavailable

7

BOLT&WASHER ASM.

3086087

Unavailable

8

GASKET, ALUM,(10) Substituted by 7555998

3082758

$1.19

9

PLUG, DRAIN

3083767

Unavailable

10

WIRE

3086083

$17.70

11

BOLT,FLANGE

3086086

Unavailable

12

PINION STOPPER SET

3086174

Unavailable

13

PINION STOPPER SET

3086173

Unavailable

14

PINION SET (Incl. 13)

3086172

$143.16

15

BRKT,FR,ASM.

3086182

$221.43

16

SWITCH,ASM.

3086157

$175.24

17

CLUTCH SHAFT ASM. (Incl. 12-14,17,19)

3086170

Unavailable

18

LEVER SET

3086184

$26.19

19

CLUTCH-OVER RUNNING

3086171

Unavailable

20

PACKING

3086175

Unavailable

21

BALL

3086176

$1.83

22

BEARING-SLEEVE

3086181

$11.11

23

BOLT

3086183

$8.73

24

BRKT,REAR ASM. (Incl. 22)

3086180

Unavailable

25

BRUSH HOLDER ASM. (Incl. 26)

3086178

Unavailable

26

BRUSH SET

3086179

$81.75

27

ARMATURE ASM.

3086169

Unavailable

28

YORK ASM.

3086177

Unavailable
