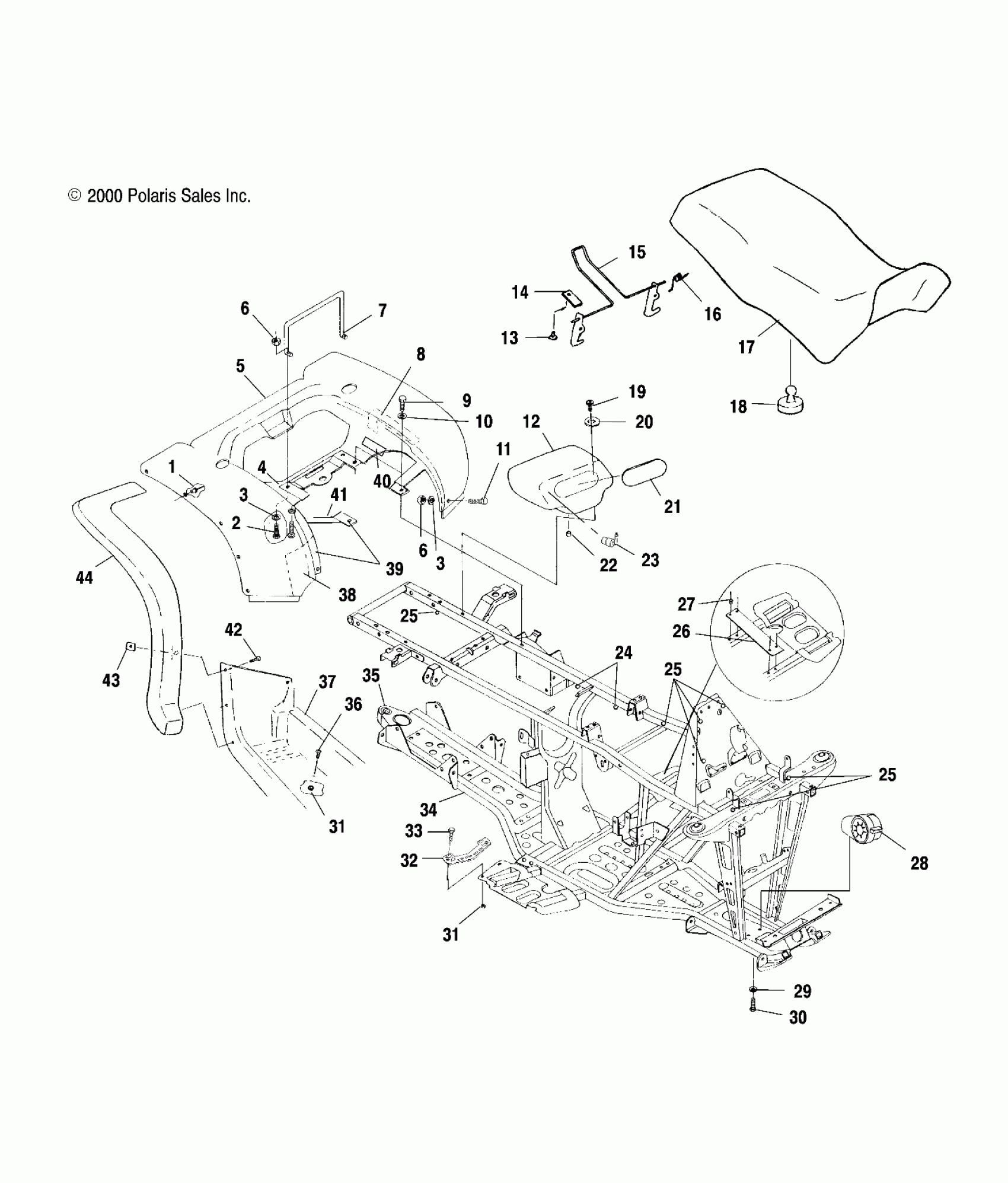

Polaris DIESEL - A00CH46CA REAR CAB and SEAT - A00CH46CA (4954785478A005) Diagram

#

Description
Price

1

RIVET(50)

7661645

$3.99

2

SCREW(10)

7511930

$2.39

3

WASHER(10)

7555792

$4.79

3

WASHER(10)

7555792

$4.79

4

FOIL,REAR CAB,REAR

5811107

$6.46

5

CAB,REAR,GEN IV,BASIC,BON.BLUE

5432988-157

$231.19

6

NUT(10)

7541925

$1.49

6

NUT(10)

7541925

$1.49

7

RETAINER,SEAT LATCH

5224592

Unavailable

8

FOIL,TAPE,3 X 12

5811308

$12.79

9

SCREW(10)

7512242

$2.39

10

WASHER, FLAT(10)

7555859

$1.49

11

SCREW(10) Substituted by 7511989

7512085

Unavailable

12

BOX,TOOL

5432875

Unavailable

13

BLIND RIVET(50)

7621403

$1.49

14

BRACKET,LEVER RETAINER

5211033

$29.25

15

LATCH,SEAT

1040387

$47.99

16

SPRING, LATCH

7041370

$9.59

17

COVER,SEAT,BLK.

2681747-070

$141.65

17

SEAT,BLK

2682441-070

$424.98

17

FOIL,SEATBASE,LG.

5811104

Unavailable

17

FOIL,SEATBASE,SM.

5811105

$9.91

18

Bumper, Rubber

5410414

$3.19

19

SCREW Substituted by 7555748

7517375

Unavailable

20

WASHER-.28X.62-.14(RBR-BK)-Z

7555748

$4.79

21

COVER, TOOLBOX

5431787

Unavailable

22

CAP,DRAIN

5410896

$5.59

23

FITTING,VENT,1/8"

7052192

Unavailable

24

CLIP-ROUTING

7670109

$2.39

25

CLIP,ROSEBUD

4020149

$6.39

25

CLIP,ROSEBUD

4020149

$6.39

25

CLIP,ROSEBUD

4020149

$6.39

26

GUARD,CLUTCH,BLK

5242953-067

Unavailable

27

RIVET,INTERLOCK,B(50)

7661638

$1.49

28

Asm., Front Housing (See Front Housing Pg. D3 for Details)

-------

Unavailable

29

WASHER(10)

7552603

$1.49

30

SCREW(10)

7512492

$1.49

31

NUT-LOCK(10)

7542122

$1.49

31

NUT-LOCK(10)

7542122

$1.49

32

SPACER,FOOTWELL

5432280

$8.79

33

SCREW

7517377

$4.79

34

FRAME,DIESEL,BLK [No Longer Available]

1013002-067

Unavailable

35

DECAL-HITCH (1225)

7078261

Unavailable

36

SCREW Substituted by 7512279

7517376

Unavailable

37

FOOTWELL,LH,BLK,NYLON

5432221-070

$230.70

37

FOOTWELL-NYLON,RH,BLK

5433219-070

$230.70

38

FOIL FOAM

5811111

$32.37

39

FOIL,FR,REAR CAB

5811106

$8.89

40

DECAL,FILT.ELEMENT,4-S

7077446

Unavailable

41

FOIL-FOAM,(6X1)

5811087

Unavailable

42

BOLT(10)

7512232

$1.49

43

NUT, SPEED(10)

7670057

$1.49

44

MUDGUARD,LH,R.BLK. Substituted by 5431796-070

5431796

Unavailable

44

MUDGUARD,RH,R.BLK. Substituted by 5431797-070

5431797

Unavailable
