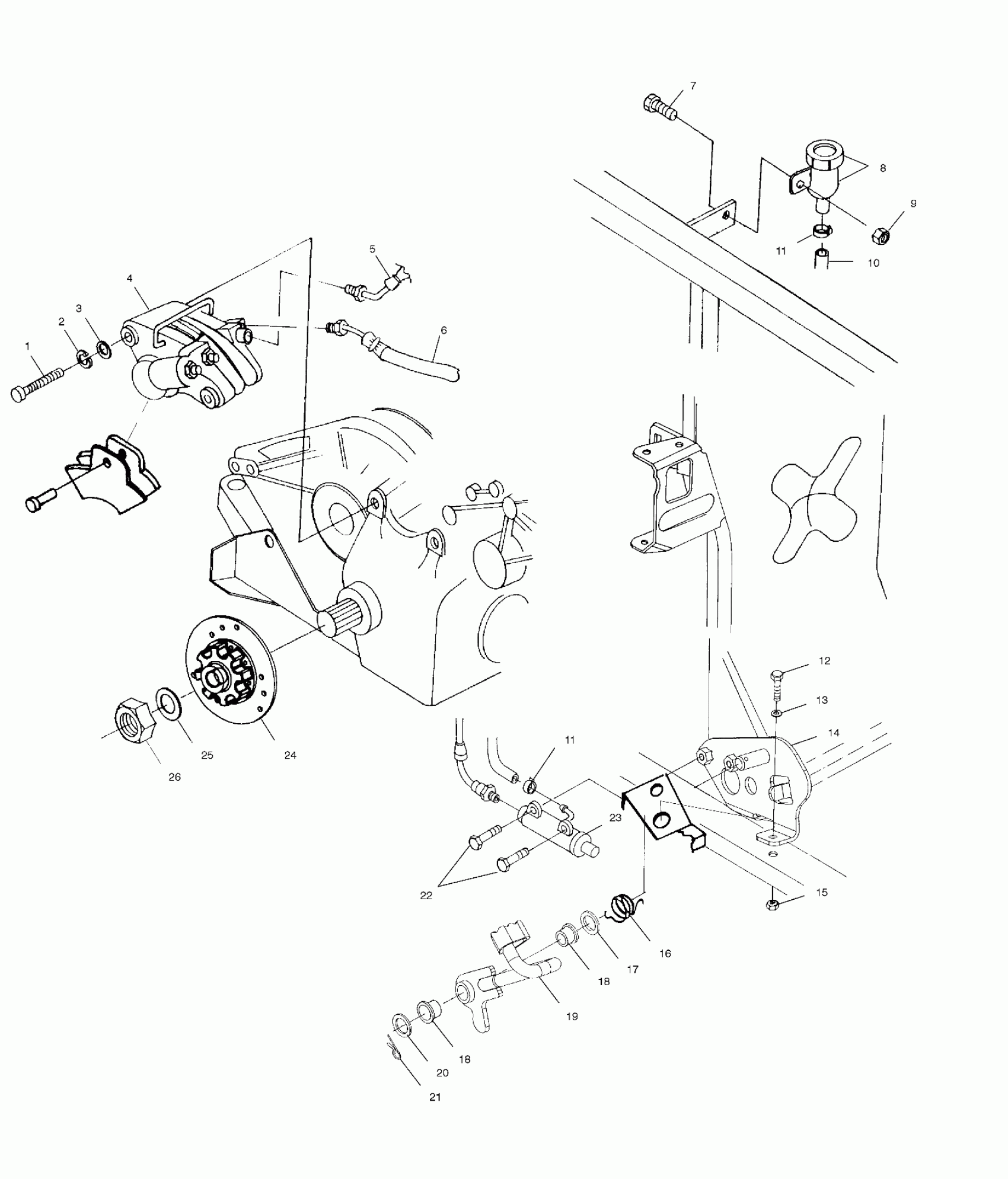

Polaris DIESEL - A00CH46CA REAR BRAKE/FOOT PEDAL - A00CH46CA (4954785478C009) Diagram

#

Description
Price

1

BOLT(10)

7515497

$3.99

2

WASHER(10)

7552603

$1.49

3

WASHER(10)

7555806

$1.49

4

KIT,SEAL,CALIPER,WW

2201180

$64.75

4

BLEEDER REPLACEMENT,KIT

2201428

$27.99

4

Piston, STEPPED BORE

2201181

$83.33

4

CALIPER,BRAKE,DHIP,AFT

1910441

$250.96

4

BRAKE PADS,AFT,WW REAR (Incl. Spacer, Pin)

2201399

$31.75

5

LINE,R.BRAKE,WWOOD

1930853

Unavailable

6

LINE,BRAKE CALIPER,W/FTNGS.

1910305

Unavailable

7

BOLT(10) Substituted by 7512240

7512111

Unavailable

8

RESERVOIR ASM,R.BRAKE

1930854

$35.99

9

NUT(10)

7542153

$1.59

10

HOSE-RESERVOIR,1/4 ID,17IN.

1910326

$4.03

11

HOSE CLAMP, RED

7080003

$1.49

11

HOSE CLAMP, RED

7080003

$1.49

12

BOLT(10)

7512240

$3.99

13

WASHER(10)

7558301

$1.49

14

BRAKE MOUNT,DIESEL,BLK.

1012840-067

$21.59

15

NUT-LOCK(10)

7542122

$1.49

16

SPRING-TORSION,BRAKE

7041750

$8.79

17

WASHER(10)

7555919

$4.99

18

BUSHING-PEDAL PIVOT

5433189

$3.99

18

BUSHING-PEDAL PIVOT

5433189

$3.99

19

MOUNT,BRAKE,DIESEL,BLK

1013147-067

Unavailable

20

WASHER,SPRING

7556090

$2.63

21

COTTER PIN(10)

7661401

$1.49

22

SCREW(10)

7515158

$4.79

23

CYLINDER,MASTER,BRAKE,REAR

1910301

$166.01

24

DISC,BRAKE,1050

1910439

$215.99

25

WASHER, SLOTTED(10)

7571620

$7.19

26

NUT,NYLOC

7547046

$5.59
