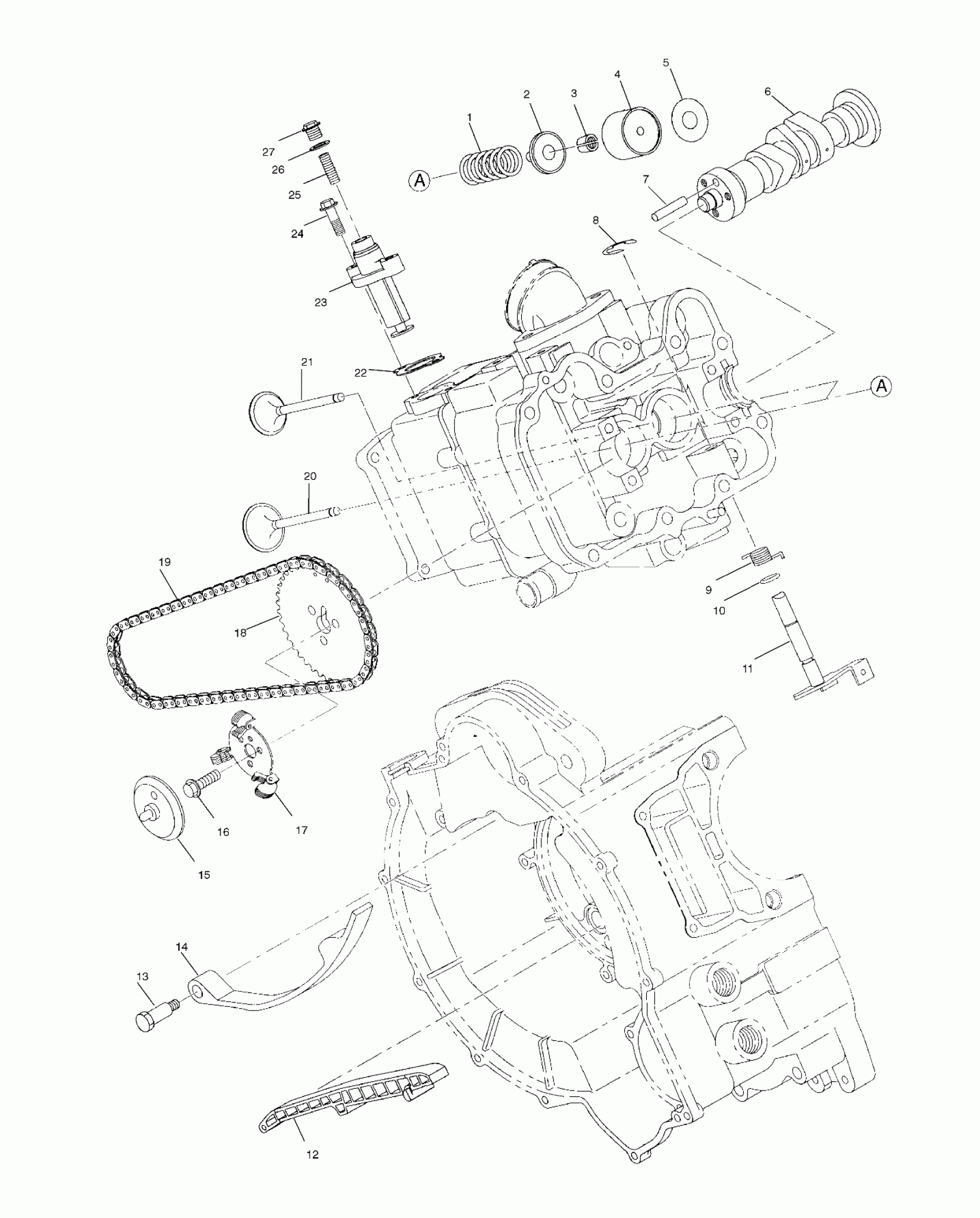

Polaris DIESEL - A00CH46CA INTAKE and EXHAUST - A00CH46CA (4954785478D009) Diagram

#

Description
Price

1

SPRING,VALVE

3085992

$7.38

2

RETAINER,VALVE SPRING

3085993

$7.03

3

COLLET,VALVE

3084908

$3.99

4

VALVE,LIFTER

3085994

Unavailable

5

SHIM,VALVE,2.800 (2.800)

3085995

$13.19

5

SHIM,VALVE,2.750 (2.750)

3085996

$12.39

5

SHIM,VALVE,2.700 (2.700)

3085997

$12.39

5

SHIM,VALVE,2.650 (2.650)

3085998

$13.19

5

SHIM,VALVE,2.600 (2.600)

3085999

$12.39

5

SHIM,VALVE,2.575 (2.575)

3086000

$12.39

5

SHIM,VALVE,2.550 (2.550)

3086001

$12.39

5

SHIM,VALVE,2.525 (2.525)

3086002

$12.30

5

SHIM,VALVE,2.500 (2.500)

3086003

$13.99

5

SHIM,VALVE,2.475 (2.475)

3086004

$12.39

5

SHIM,VALVE,2.450 (2.450)

3086005

$12.39

5

SHIM,VALVE,2.425 (2.425)

3086006

$12.39

5

SHIM,VALVE,2.400 (2.400)

3086007

$12.39

5

SHIM,VALVE,2.375 (2.375)

3086008

$12.39

5

SHIM,VALVE,2.350 (2.350)

3086009

$12.39

5

SHIM,VALVE,2.325 (2.325)

3086010

$12.39

5

SHIM,VALVE,2.300 (2.300)

3086011

$13.19

5

SHIM,VALVE,2.275 (2.275)

3086012

$12.39

5

SHIM,VALVE,2.250 (2.250)

3086013

$13.10

5

SHIM,VALVE,2.225 (2.225)

3086014

Unavailable

5

SHIM,VALVE,2.200 (2.200)

3086015

$13.10

5

SHIM,VALVE,2.175 (2.175)

3086016

$13.19

5

SHIM,VALVE,2.150 (2.150)

3086017

$14.87

5

SHIM,VALVE,2.100 (2.100)

3086018

$13.99

5

SHIM,VALVE,2.050 (2.050)

3086019

$13.19

5

SHIM,VALVE,2.000 (2.000)

3086020

Unavailable

5

SHIM,VALVE,1.950 (1.950)

3086021

$13.99

5

SHIM,VALVE,1.900 (1.900)

3086022

$13.99

6

CAMSHAFT Substituted by 3086159 (Incl. 7)

3085988

Unavailable

6

CAMSHAFT (Incl. 7)

3086159

Unavailable

6

CAMSHAFT Substituted by 3086159 (Incl. 7)

3086160

Unavailable

7

PIN-DOWEL

3086161

$4.23

8

CLIP(10)

3086028

$1.49

9

SPRING,RETURN,DECOMP.

3086027

$4.95

10

O-RING

3086054

$2.47

11

LEVER,DECOMP

3086026

Unavailable

12

GUIDE,CHAIN

3084916

Unavailable

13

BOLT,PIVOT,LEVER

3084924

Unavailable

14

LEVER

3084917

$91.99

15

PLATE-THRUST

3086162

Unavailable

16

BOLT&WASHER ASM.

3083361

Unavailable

17

PLATE,GOVERNOR

3086094

Unavailable

18

SPROCKET 2

3084914

$75.99

19

CHAIN,TIMMING

3086023

Unavailable

20

VALVE,INTAKE

3085990

Unavailable

21

VALVE,EXHAUST

3085991

Unavailable

22

GASKET,TENSIONER

3084922

Unavailable

23

TENSIONER,ASM. (Incl. 25-27)

3086024

$91.19

24

BOLT, FLANGE

3084874

Unavailable

25

SPRING,TENSIONER Substituted by 3086839

3086025

Unavailable

26

Gasket, Plug

3084920

Unavailable

27

PLUG

3084845

Unavailable
