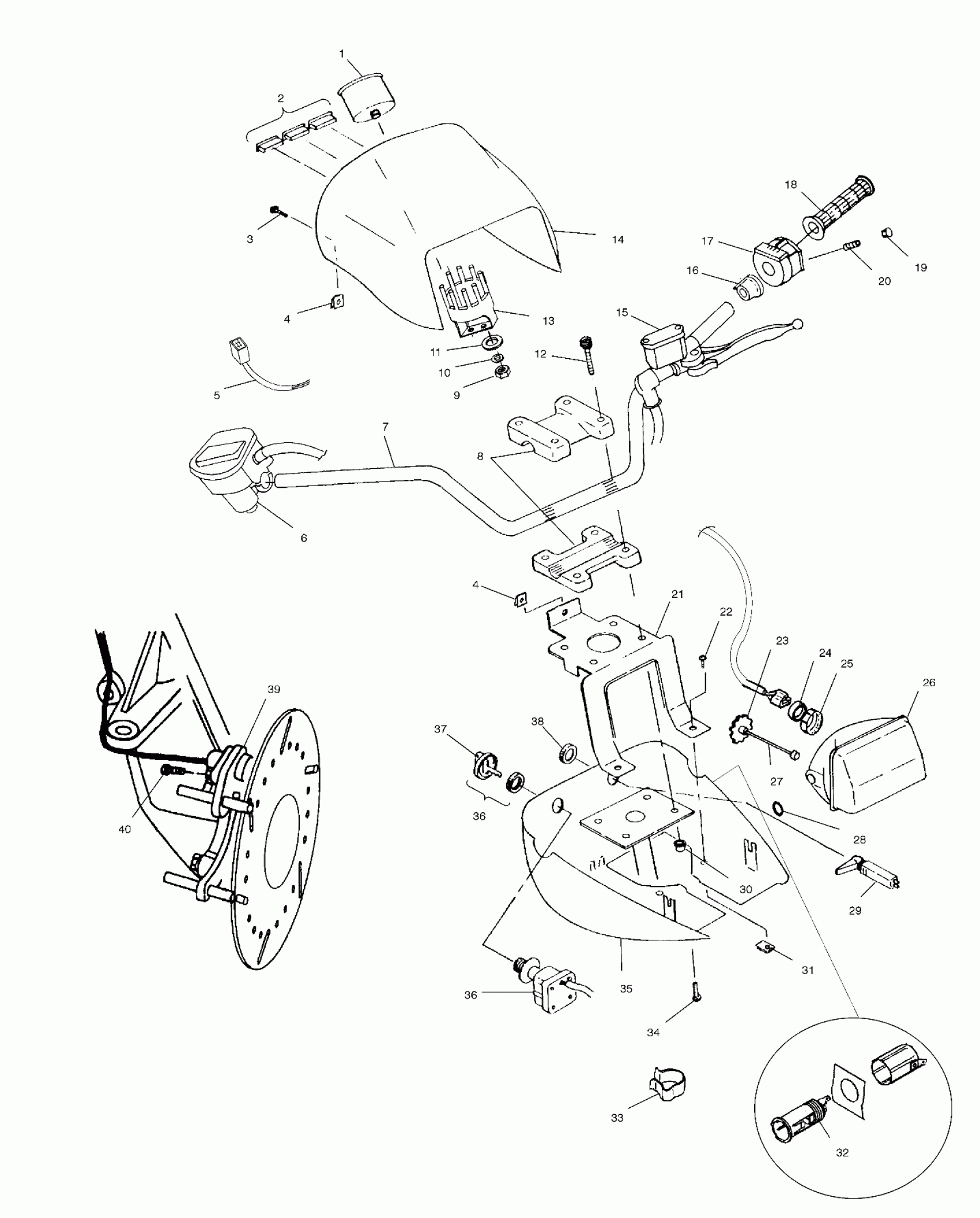

Polaris DIESEL - A00CH46CA HANDLEBAR and HEADLIGHT POD - A00CH46CA (4954785478B011) Diagram

#

Description
Price

1

SPEEDO,KILO,3.38",6-PULSE,ASM. Substituted by 3280359

3280327

Unavailable

2

PLUG,INDIC.HOLE

5430967

$5.65

2

INDIC"HOT TEMPERATURE"

4040053

$31.99

2

INDIC"NEUT./REV."

4040054

$31.99

3

SCR-#8X.625,SELF TAP-PH/PN-ZTB

7511881

$1.49

4

NUT

7670086

$3.99

4

NUT

7670086

$3.99

5

HARNESS,CTR.PNL.

2460668

$11.51

6

Asm., Throttle Control (See Controls - Throttle Asm./Cable Pg. B8, Ref. 5)

-------

Unavailable

7

TUBE-HANDLEBAR,GEN 4,POD,BLK

5242987-067

$114.99

8

KIT,H'BAR BLOCK (Incl. Blocks and 8,12,30)

2200774

Unavailable

8

BLOCK,H'BAR RETAINER,BLK

5630616-067

Unavailable

9

NUT, BRASS(10)

7541933

$4.99

10

WASHER, LOCK,(S.S.)(10)

7555868

Unavailable

11

WASHER,13/64X1/2X18GA,FL-Y

7558212

$1.49

12

SCREW(10)

7515189

Unavailable

13

CLAMP,BACK,ELEC.SPEEDO,3.38"

3280291

Unavailable

14

POD-HEADLIGHT,UPPER,BONNIE BLU

5433042-157

Unavailable

15

Asm., Master Cylinder (See Controls - Master Cylinder/Brake Line Pg. B9 for details)

-------

Unavailable

16

SPACER,SWITCH,LH

5432926

$2.63

17

SWITCH-HANDLEBAR,H/L/O,REV/OR

4010262

$203.99

18

GRIP, HANDLEBAR

5431030

$24.27

19

PLUG,HOLE(10)

5432952

$5.59

20

SCREW,SET

7517625

$4.79

21

BRKT,POD MTG,BLK.

5240586-067

Unavailable

22

SCR-#8X1/2,TR/PH,TYPE B-Y

7517317

$3.19

23

KNOB,ADJUSTING

4032079

$23.99

24

BOOT, HEADLIGHT

5411120

$27.99

25

COLLAR,LOCK

4032077

$27.99

26

BULB,QUARTZ.H/L,INDY

2870448

$24.99

26

LENS&REFLECTOR ASM.

4032075

Unavailable

27

ROD,ADJUSTING

4032078

Unavailable

28

O RING

5410163

$1.60

29

CABLE-FUEL SHUT OFF

7080757

Unavailable

30

NUT-LOCK(10)

7542122

$1.49

31

NUT,U-TYPE(10)

7670089

$5.59

32

RECEPTACLE-POD MNT,12 VOLT

4010283

Unavailable

33

CLIP,CABLE RETAIN,(10)

7080631

$6.29

34

SCREW(10)

7522021

$3.99

35

POD,HEADLIGHT,LOWER,BLK

5433366-070

$93.08

36

BLANK, KEY, SERIES 2000, 2100, 6700, 6800 Your key can be duplicated only by obtaining a key blank from Polaris and having it cut by mating it with your existing key.

4010278

Unavailable

36

Blank, Key, Series 2200, 2300, 2700, 2800. Your key can be duplicated only by obtaining a key blank from Polaris and having it cut by mating it with your existing key.

4010321

Unavailable

36

SWITCH,IGNITION (Incl. Key)

4110264

$104.24

36

BLANK, KEY, SERIES 2000, 2100, 6700, 6800 Your key can be duplicated only by obtaining a key blank from Polaris and having it cut by mating it with your existing key.

4010278

Unavailable

36

Blank, Key, Series 2200, 2300, 2700, 2800. Your key can be duplicated only by obtaining a key blank from Polaris and having it cut by mating it with your existing key.

4010321

Unavailable

36

SWITCH,IGNITION (Incl. Key)

4110264

$104.24

37

KEY SWITCH KEY COVER

5433534

$12.35

38

Nut

7080229

$19.99

39

SENSOR,HALLEFFECT

4010298

$111.99

39

CAP-HALL SENSOR

5132382

$23.99

40

Screw

7517658

$5.59
