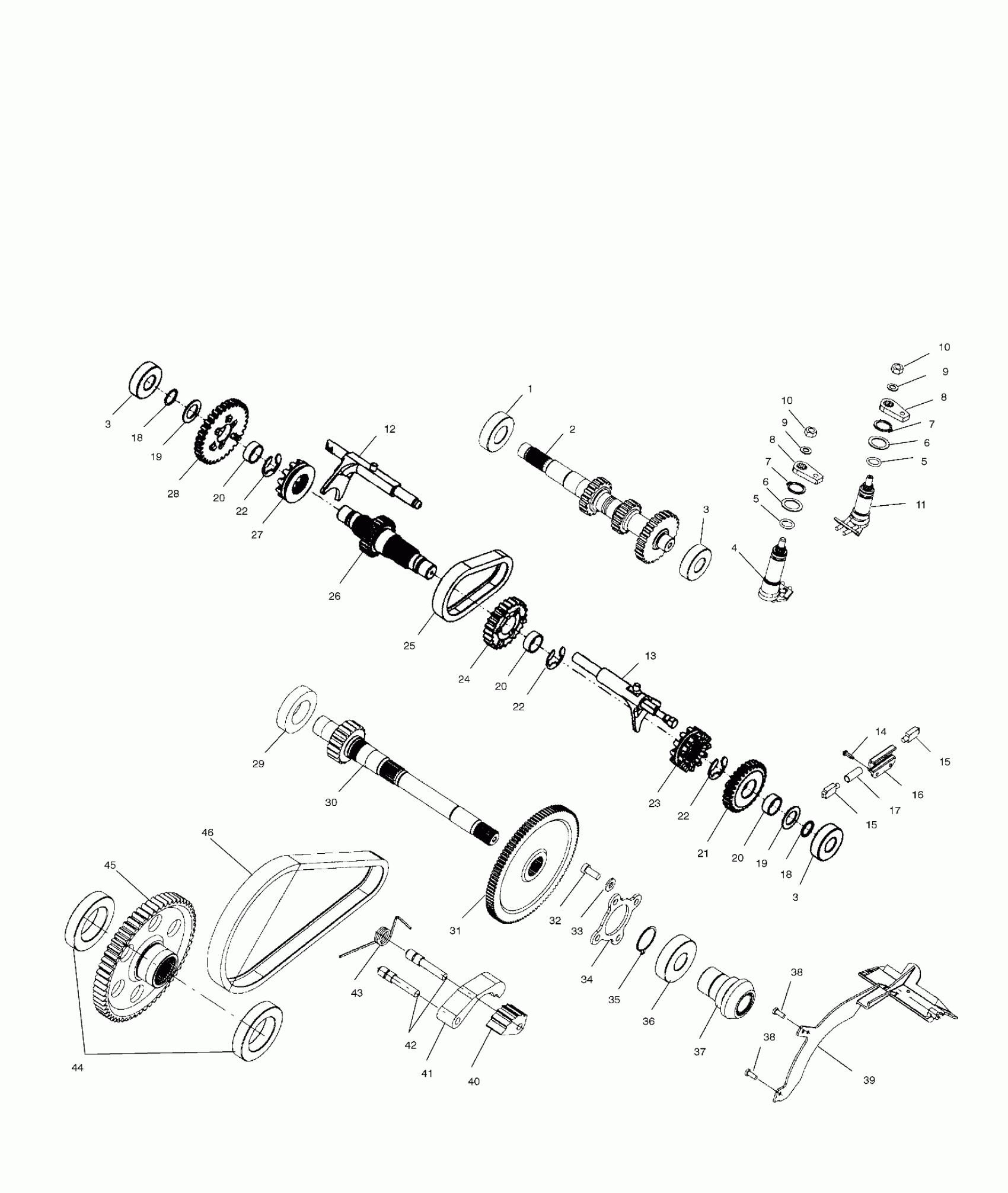

Polaris DIESEL - A00CH46CA GEARCASE (Internal Components) - A00CH46CA (4954785478D001) Diagram

#

Description
Price

-

GEARCASE SHAFT,DIESEL00PRD (Incl. 1-46 and all on Gearcase - Cases and Snorkel Pg. C14)

1341307

Unavailable

1

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

2

SHAFT,INPUT 15T HCR,HLR(DSL)

3233571

Unavailable

3

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

3

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

3

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

4

SHAFT-SHIFT

3233661

Unavailable

5

O-Ring

3233548

$27.99

5

O-Ring

3233548

$27.99

6

Washer

3233040

$9.59

6

Washer

3233040

$9.59

7

RING,RETAINING BASIC,EXTERNAL 0.75

3233045

$4.79

7

RING,RETAINING BASIC,EXTERNAL 0.75

3233045

$4.79

8

Bellcrank

3233153

$27.99

8

Bellcrank

3233153

$27.99

9

Washer

3233054

$6.46

9

Washer

3233054

$6.46

10

Nut

3233055

Unavailable

10

Nut

3233055

Unavailable

11

SHAFT-SHIFT

3233662

Unavailable

12

FORK,SHIFT,LOW

3233663

$188.10

13

FORK,SHIFT,H/R

3233664

Unavailable

14

SCREW-TAPPING,W/LOCK WASHER

3233747

Unavailable

15

PIN,INTERLOCK

3233308

Unavailable

15

PIN,INTERLOCK

3233308

Unavailable

16

BRACKET,INTERLOCK

3233309

$20.63

17

Spring

3233189

Unavailable

18

RING,RETAINING

3233177

$6.39

18

RING,RETAINING

3233177

$6.39

19

Washer

3233176

$9.59

19

Washer

3233176

$9.59

20

BEARING,NDL,SPLIT CAGE

3233718

$35.99

20

BEARING,NDL,SPLIT CAGE

3233718

$35.99

20

BEARING,NDL,SPLIT CAGE

3233718

$35.99

21

GEAR,30T,12PT

3233744

Unavailable

22

RING,RET-RING,EXTERNAL

3233720

$9.59

22

RING,RET-RING,EXTERNAL

3233720

$9.59

22

RING,RET-RING,EXTERNAL

3233720

$9.59

23

DOG,ENGAGE,HIGH/REV 12PT

3233743

Unavailable

24

WASHER

3233119

$7.79

25

CHAIN,SILENT,34P

3233036

Unavailable

26

SHAFT,REVERSE,29T

3233742

$174.60

27

DOG,ENGAGEMENT,LOW

3233732

$169.98

28

GEAR,36T,12PT

3233745

Unavailable

29

BEARING

3233020

$47.99

30

SHAFT-CENTER DRIVE

3233715

Unavailable

31

GEAR,O/P,100T,HCR

3233360

Unavailable

32

Screw

3233262

$1.83

33

LOCK WASHER(10)

7552901

$1.49

34

COVER,CTR.DRIVE BRG.

3233263

Unavailable

35

RING,RETAINING

3233364

$6.39

36

BEARING-BALL 6007 C3 35 X 62 X 14

3233265

$39.99

37

GEAR,16T,SPIRAL BEVEL,SNORKEL

3233365

Unavailable

38

Screw

3233282

Unavailable

38

Screw

3233282

Unavailable

39

DEFLECTOR-OIL

3233669

$7.94

40

CAM,CHAIN TENSIONER

3233434

$12.79

41

SHOE,CHAIN TENSIONER

3233433

$27.99

42

PIN,DOWEL

3233432

$7.19

43

SPRING,TORSION

3233431

$23.99

44

BEARING-BALL 6010 C3 50 X 80 X 10

3233268

$51.99

45

SPOCKET-60T,36T SP

3233670

Unavailable

46

CHAIN,SILENT

3233430

Unavailable
