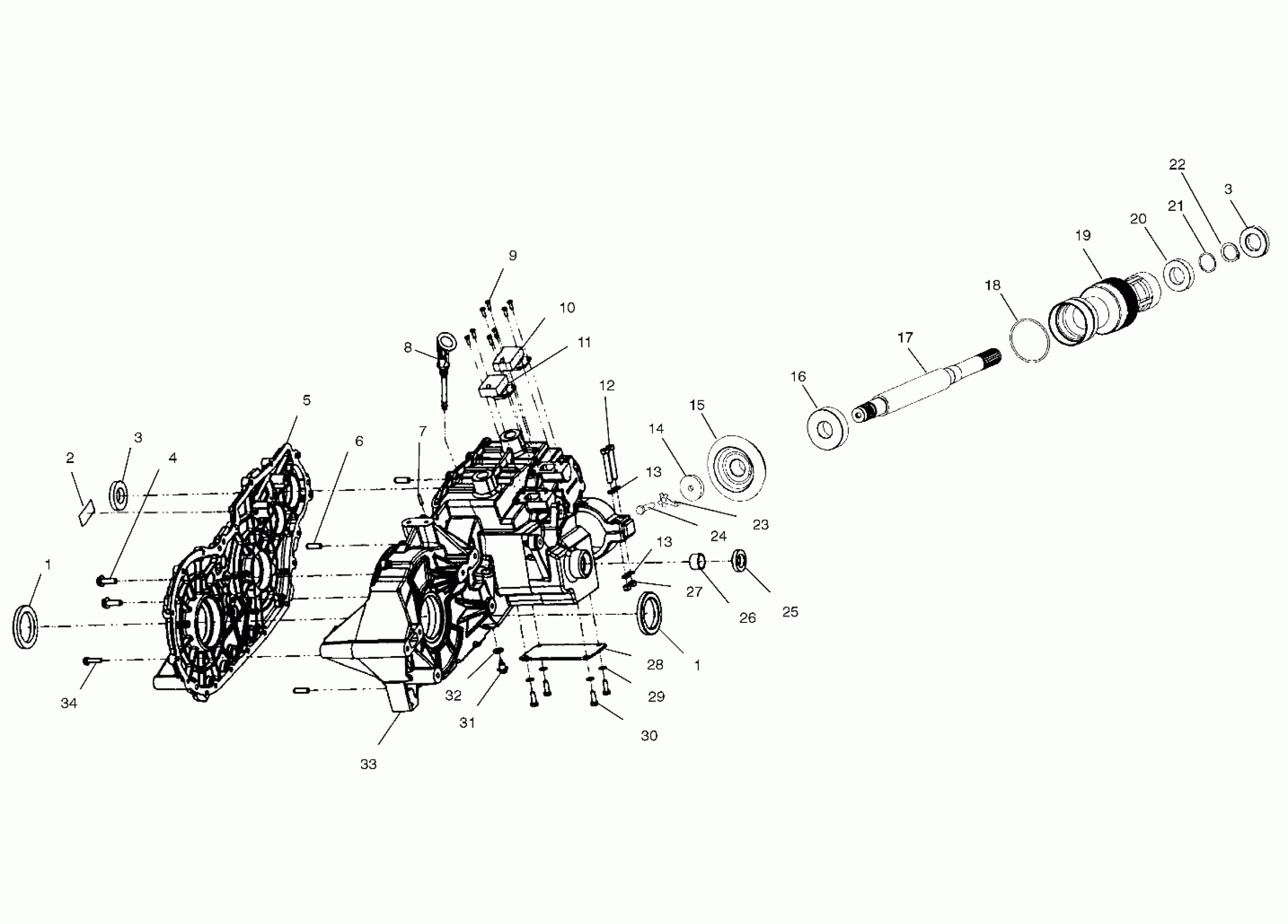

Polaris DIESEL - A00CH46CA GEARCASE (Cases and Snorkel) - A00CH46CA (4954785478C014) Diagram

#

Description
Price

-

Asm., Gearcase (See Gearcase, Internal Components Pg. D2)

-------

Unavailable

1

Seal

3233256

Unavailable

1

Seal

3233256

Unavailable

2

DECAL-SWITCH

3233636

Unavailable

3

Seal

3233248

$30.88

3

Seal

3233248

$30.88

4

Screw

3233252

$5.27

5

GEARCASE-LH

3233716

$339.99

6

PIN, DOWEL

3233247

$7.19

7

Vent

3233037

Unavailable

8

Dipstick

3233475

Unavailable

9

SCREW

3233749

$5.59

10

SWITCH,ITW 2 POSITION

3233617

Unavailable

11

SWITCH-H/R,ITW

3233635

Unavailable

12

BOLT

3233442

$2.23

13

Washer (See Gearcase, Internal Components Pg. D2, Ref. 9)

-------

Unavailable

13

Washer (See Gearcase, Internal Components Pg. D2, Ref. 9)

-------

Unavailable

14

Washer

3233352

$1.83

15

GEAR,31T,SNORKEL

3233476

Unavailable

16

Ball Bearing (See Gearcase, Internal Components Pg. D2, Ref. 29)

-------

Unavailable

17

SHAFT,SNORKEL

3233446

Unavailable

18

O-Ring

3233302

Unavailable

19

TUBE,SNORKEL

3233750

$189.59

20

BEARING,BALL

3233305

$31.99

21

SPACER (1.180x.995x.008) NOTE: Ref. 21 indicates choices, may also be used in combinations.

3233357

$21.99

21

SPACER (1.180x.995x.040)

3233355

$2.63

21

SPACER (1.180x.995x.010)

3233353

$2.55

21

SPACER (1.180x.995x.025)

3233354

$2.55

21

SPACER (1.180x.995x.005)

3233356

$2.62

22

RING,RETAINING

3233306

$4.79

23

BOLT,LOCK SNORKEL GEAR

3233444

$2.39

24

Bolt

3233351

$1.99

25

Seal

3233293

Unavailable

26

Bushing

3233292

$31.99

27

NUT,FLEXLOCK

3233291

$3.03

28

PLATE,COVER

3233294

$11.59

29

WASHER,LOCK

3233295

$1.99

30

Screw

3233296

Unavailable

31

PLUG, DRAIN Substituted by 3233777

3233253

$34.99

32

PLUG, WASHER

3233254

$7.99

33

GEARCASE,RH

3233748

Unavailable

34

Screw

3233026

$6.46
