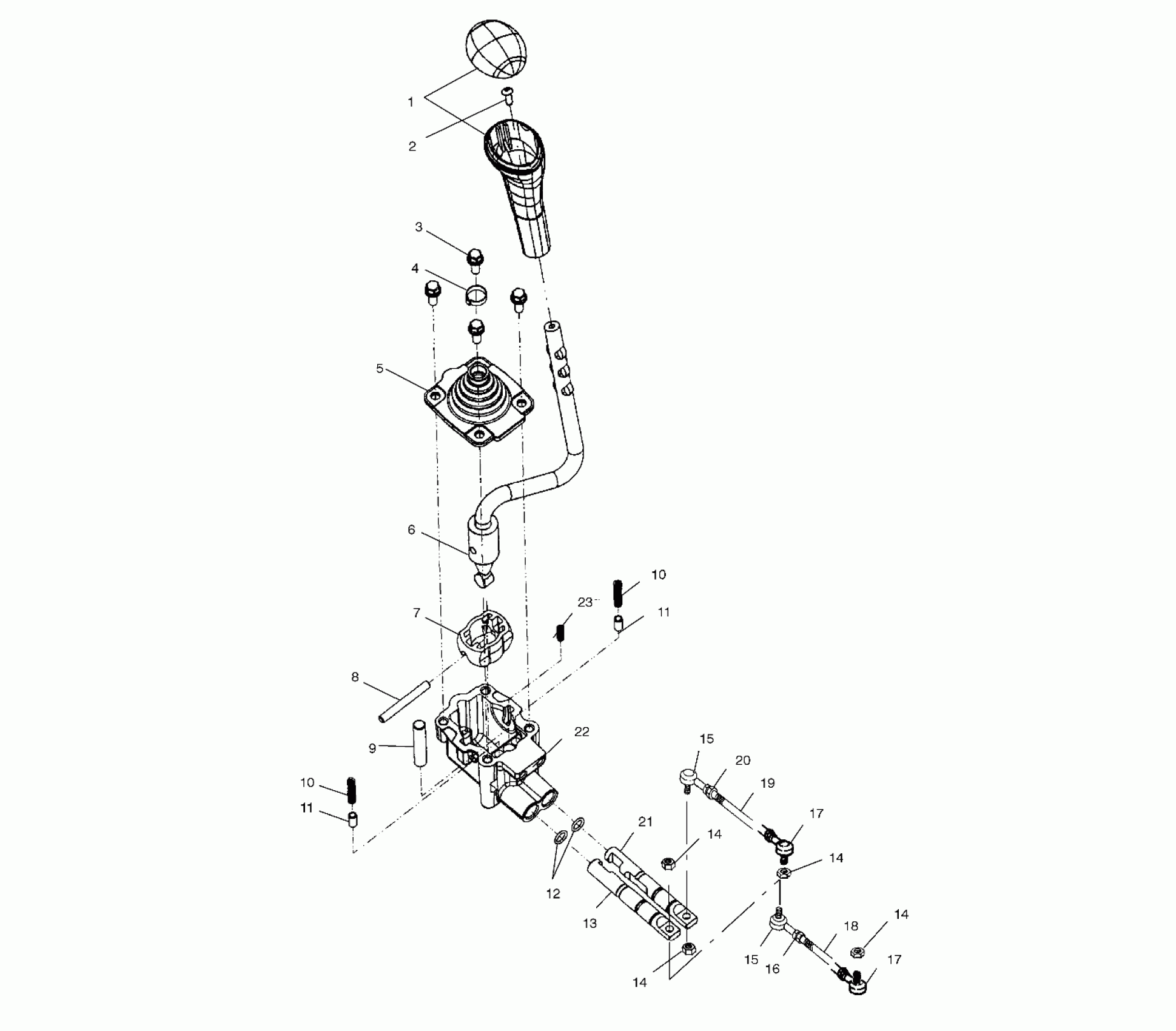

Polaris DIESEL - A00CH46CA GEAR SELECTOR - A00CH46CA (4954785478D004) Diagram

#

Description
Price

-

SELECTOR ASM,GEAR (Incl. 1-13,21-23)

1341271

Unavailable

1

KNOB ASM,HI/LO/REV. Substituted by 3233195-070

3233195

$49.99

2

SCREW,(10)

7512024

$4.79

3

Screw

3233649

Unavailable

4

Strap, Wire

3233131

$9.70

5

COVER-GEAR SELECTOR BOOT

3233648

$31.99

6

SUBASM-HANDLE GEAR SELECTOR

3233658

Unavailable

7

PLASTIC-SPHERE

3233646

$14.07

8

PIN-DOWEL

3233754

$9.99

9

PIN-DOWEL

3233644

$7.99

10

SPRING-DETENT

3233642

$16.99

10

SPRING-DETENT

3233642

$16.99

11

BULLET,DETENT

3233060

$64.99

11

BULLET,DETENT

3233060

$64.99

12

O-RING

3233076

$6.39

13

SLIDE-LOW

3233639

Unavailable

14

NUT(10) Substituted by 7546703

7546707

Unavailable

14

NUT(10) Substituted by 7546703

7546707

Unavailable

14

NUT(10) Substituted by 7546703

7546707

Unavailable

14

NUT(10) Substituted by 7546703

7546707

Unavailable

15

ROD END,RH,6MM.

7061014

$65.99

15

ROD END,RH,6MM.

7061014

$65.99

16

NUT(10)

7546702

$1.49

17

ROD END,LH,6MM.

7061013

$65.99

17

ROD END,LH,6MM.

7061013

$65.99

18

ROD,SHIFT LINKAGE,14.55

5132198

$29.75

19

ROD,SHIFT LINKAGE

5020743

Unavailable

20

NUT(10)

7546701

$3.99

21

SLIDE-HIGH/REV

3233640

Unavailable

22

GEAR,SELECTOR,BODY

3233641

$99.99

23

SPRING-CENTERING

3233643

$52.79
