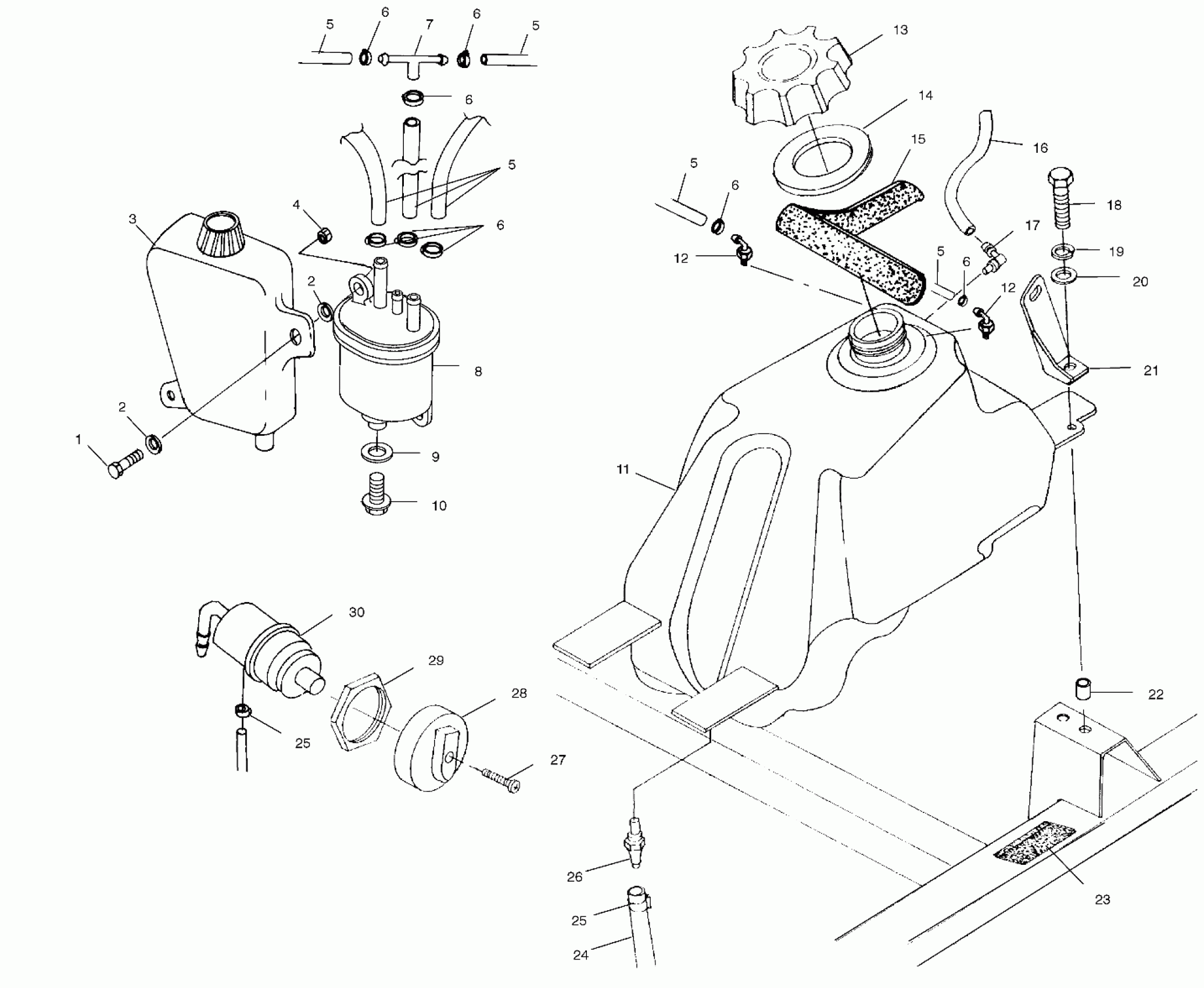

Polaris DIESEL - A00CH46CA FUEL TANK - A00CH46CA (4954785478A014) Diagram

#

Description
Price

1

SCR-#10-24X3/4,PN/TR RD-TORX-Y

7512018

$3.19

2

WSHR-.194X.475X.049 ZTB

7555746

Unavailable

2

WSHR-.194X.475X.049 ZTB

7555746

Unavailable

3

Tank, Surge

-------

Unavailable

4

NUT(10)

7541925

$1.49

5

FUEL LINE,3/16 ID(600 CM.)

8450042-600

Unavailable

5

FUEL LINE,3/16 ID(600 CM.)

8450042-600

Unavailable

5

FUEL LINE,3/16 ID(600 CM.)

8450042-600

Unavailable

5

FUEL LINE,3/16 ID(600 CM.)

8450042-600

Unavailable

5

FUEL LINE,3/16 ID(600 CM.)

8450042-600

Unavailable

6

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

6

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

6

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

6

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

6

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

6

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

7

CONNECTOR-T

3086091

$3.99

8

FUEL,FILTER,ASM. *

3086088

Unavailable

9

PACKING

3086090

$3.35

10

PLUG

3086089

$2.79

11

TANK,FUEL (Incl. 12,17,26)

1240056

Unavailable

12

ELBOW, TUBE

7052055

$4.95

12

ELBOW, TUBE

7052055

$4.95

13

FUEL GAUGE CAP

2871442

$17.76

14

GASKET-GAS CAP

5810144

$5.59

15

SEAL-FOAM,21 IN

5811310

Unavailable

16

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

17

Vent, Tank

5431053

$19.99

18

BOLT(10)

7512247

$2.39

19

LOCK WASHER(10)

7552801

$1.59

20

WASHER(10)

7558301

$1.49

21

BRKT,LH.R.FUELCOVER,BLK.

5222154-067

Unavailable

21

BRKT,RH.R.FUELCOVER,BLK.

5222155-067

Unavailable

22

NUTSERT,HEX(10)

7547069

$3.99

23

PAD,FUELTANK BRKT. Substituted by 8360026

5810317

Unavailable

24

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

25

HOSE CLAMP, RED

7080003

$1.49

25

HOSE CLAMP, RED

7080003

$1.49

26

FITTING-FUEL OUTLET

7052246

Unavailable

27

SCREW(10)

7517505

$1.59

28

KNOB,FUEL VALVE

5432559

$10.39

29

NUT,FUELVALVE,ATV

5432733

Unavailable

30

VALVE,ON/OFF

7052159

$43.99
