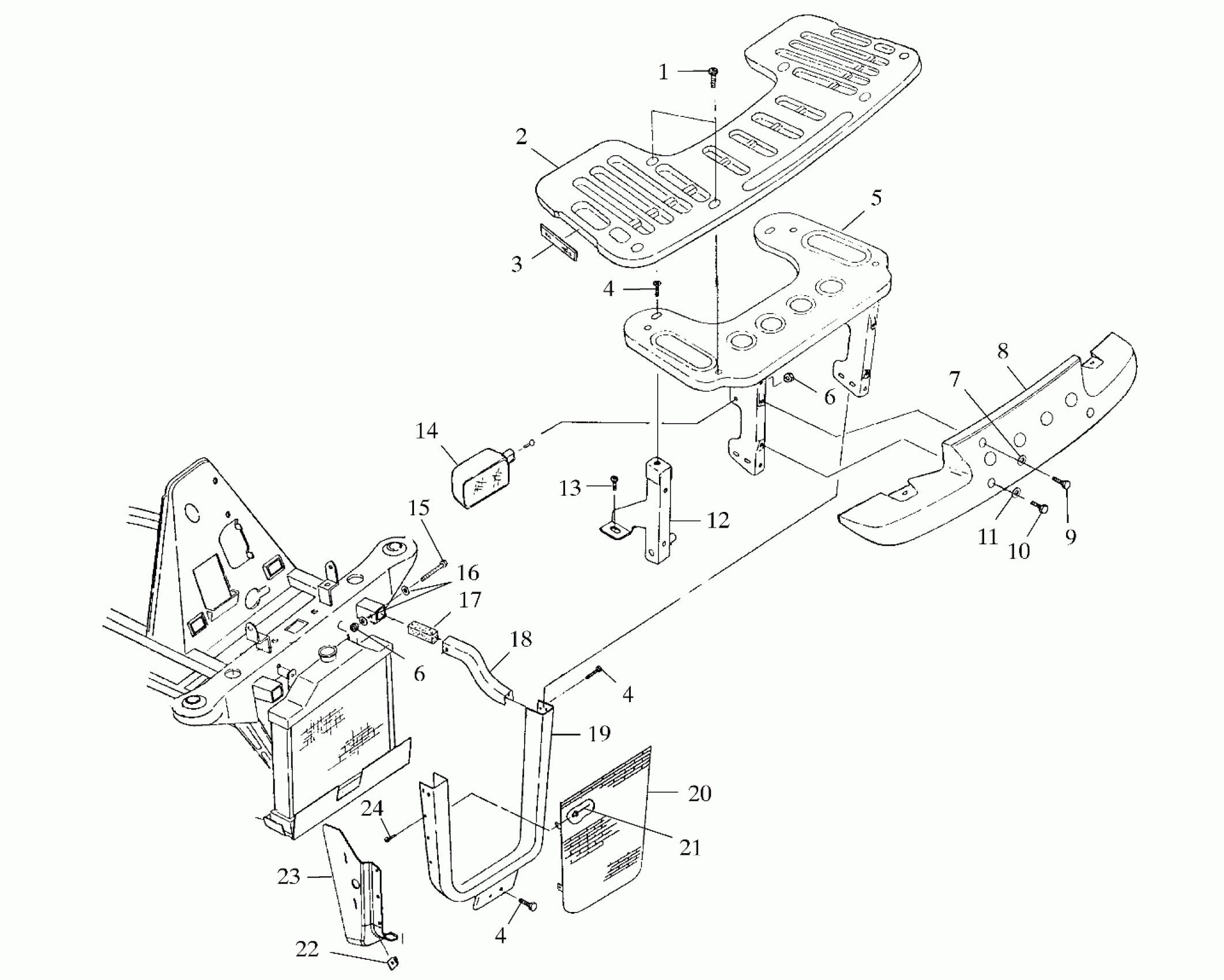

Polaris DIESEL - A00CH46CA FRONT RACK and BUMPER MOUNTING - A00CH46CA (4954785478A009) Diagram

#

Description
Price

1

SCREW(10)

7517685

$1.59

2

RACK ASM,FRONT Substituted by 2670180-070 (Incl. Ref. 3 & Warning Decal)

2670180

Unavailable

3

REFLECTOR AMBER

2670071

Unavailable

4

SCREW(10)

7515399

$1.49

4

SCREW(10)

7515399

$1.49

4

SCREW(10)

7515399

$1.49

5

KIT,FRT.RACK MOUNT

2200775

Unavailable

6

NUT-5/16-18 NYLOK-Y

7542324

$1.49

6

NUT-5/16-18 NYLOK-Y

7542324

$1.49

7

WASHER WROUGHT(10)

7558403

$4.79

8

BUMPER,BLK.

5432155-070

$143.99

9

BOLT(10)

7515391

$4.79

10

BOLT(10)

7515390

Unavailable

11

WASHER(10)

7555954

$4.79

12

SUPPORT,FRT.RACK,LH,BLK

1013210-067

$69.99

12

SUPPORT,FRT. RACK,RH,BLK

1013211-067

$64.99

13

BOLT(10)

7512232

$1.49

14

BULB,H/L,27W.HOBBS

4030059

Unavailable

14

H/L ASM,LH,35W

2431014

Unavailable

14

H/L ASM,RH,35W

2431015

$92.99

15

BOLT(10)

7515382

$2.39

16

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

17

PLUG, FRAME

5810467

Unavailable

18

EXTENSION,FRAME,LH,BLK

5244623-067

Unavailable

18

EXTENSION,FRAME,RH,BLK

5244624-067

Unavailable

19

GUARD,BRUSH,BLK

5241583-067

Unavailable

20

GRILL,BRUSHGUARD,BLK.

5240591-067

$62.99

21

RIVET, POP(50)

7621330

$1.49

22

NUT(10)

7670094

$5.59

23

SHIELD-RADIATOR,SIDE,LH Substituted by 5433923

5433315

$30.88

23

SHIELD-RADIATOR,SIDE,RH Substituted by 5433924

5433316

$30.88

24

SCREW(10)

7512097

$3.99
