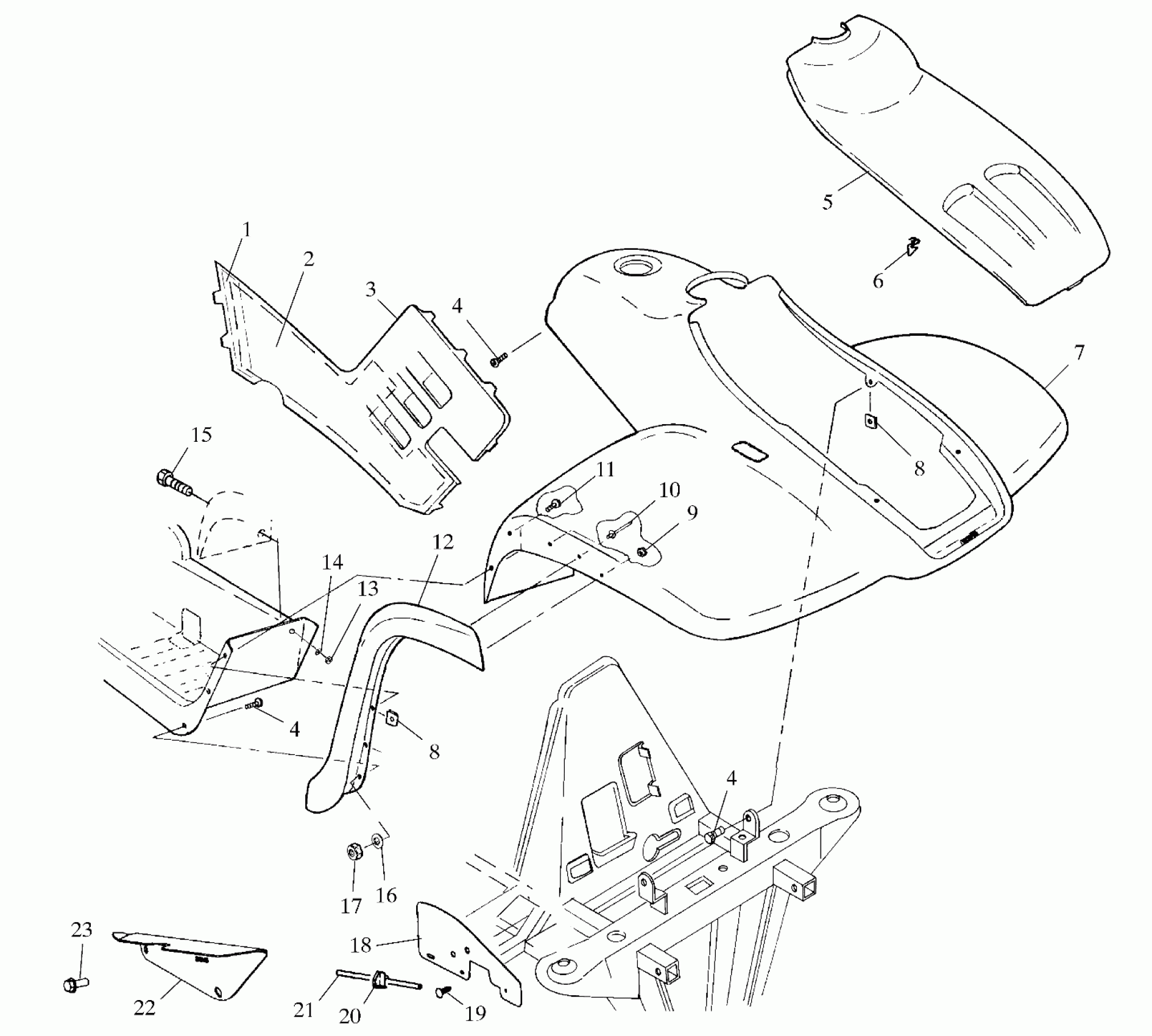

Polaris DIESEL - A00CH46CA FRONT CAB - A00CH46CA (4954785478A007) Diagram
#
Description
Price
1
FOIL,RH,SIDEPANEL,GEN IV
5811491
Unavailable
2
FOIL,FOAM,SIDE PANEL
5811743
$26.03
3
PANEL,ASM,SIDE,RH,BONNIE BLUE
2632017-157
Unavailable
3
PANEL,LH,SIDE,BON.BLUE
5431809-157
$99.19
4
BOLT(10)
7512232
$1.49
4
BOLT(10)
7512232
$1.49
4
BOLT(10)
7512232
$1.49
5
COVER,FRONT,BON.BLUE
5432088-157
Unavailable
6
CLIP,SPRING(10)
7670085
$3.51
7
CAB,FRONT,SVC,BON BLUE
2631987-157
$261.90
8
NUT, SPEED(10)
7670057
$1.49
8
NUT, SPEED(10)
7670057
$1.49
9
NUT, PUSH-ON(10)
7670068
$2.39
10
RIVET(50)
7661645
$3.99
11
SCR-1/4-20X.88,HXWR TAPR,GR5,Y
7517312
$1.49
12
MUDGUARD,LH,FRT.BLK. Substituted by 5431798-070
5431798
Unavailable
12
MUDGUARD,RH,FRT.BLK. Substituted by 5431799-070
5431799
$84.99
13
NUT(10)
7541925
$1.49
14
WASHER(10)
7555792
$4.79
15
SCREW(10) Substituted by 7511989
7512085
Unavailable
16
WASHER(10) Substituted by 7558221
7555931
Unavailable
17
NUT-LOCK(10)
7542122
$1.49
18
SHIELD-DEFLECTOR
5811917
$7.43
19
CLIP-FIR TREE,DART,6.35MM
7670090
$1.49
20
CLIP-ROUTING
7670109
$2.39
21
DESC NOT_AVAILABLE
5411778
Unavailable
22
GUARD-SPLASH,SPORTMAN,RH,BLK
5244914-067
Unavailable
22
GUARD-SPLASH,SPORTMAN,LH,BLK
5244913-067
$28.15
23
SCREW(10) Substituted by 7517685
7515194
Unavailable
