Description

Price

-

CALIPER,ASM,BRAKE,FRONT,LH (Incl. 1-3,5-7,9-11)

1910427

Unavailable

-

CALIPER,ASM,BRAKE,FRONT,RH (Incl. 1-3,5-7,9-11)

1910428

Unavailable

1

SCREW,BLEEDER

7080352

$3.19

2

SETSCREW,SKT.HD.(10)

7515489

$5.59

3

KIT-BOOT,FRONT BRAKE

1930642

$11.19

3

CALIPER,LH,BRAKE,MACH. Substituted by 5131261

5131115

Unavailable

3

CALIPER,RH,BRAKE,MACH. Substituted by 5131262

5131116

Unavailable

4

PISTON & SEAL,KIT (Incl. 5-7)

1930665

$55.99

5

SQUARE RING-MOLDED (.094) (.094)

5410779

$10.51

6

RING,SQUARE,MOLDED (.103 x .134)

5410780

$10.51

7

PISTON-BRAKE,LONG Substituted by 1930665

5132294

$54.04

8

BRAKE PADS,AFT,FRONT

2201398

Unavailable

8

KIT,FR.BRAKEPAD,HVY.DUTY

2200901

$55.99

8

KIT,BRAKEPAD,FR,(ATV)

2201149

$55.99

9

MOUNT,ASM,CALIPER

1910411

$50.18

10

Boot, Bushing

5410495

Unavailable

11

Boot, Pin Seal

5410494

Unavailable

12

Washer, Flat (See Front Strut Pg. B5, Ref. 4)

-------

Unavailable

13

Washer, Spring Lock (See Front Strut Pg. B5, Ref. 8)

-------

Unavailable

14

Screw (See Front Strut Pg. B5, Ref. 7)

-------

Unavailable

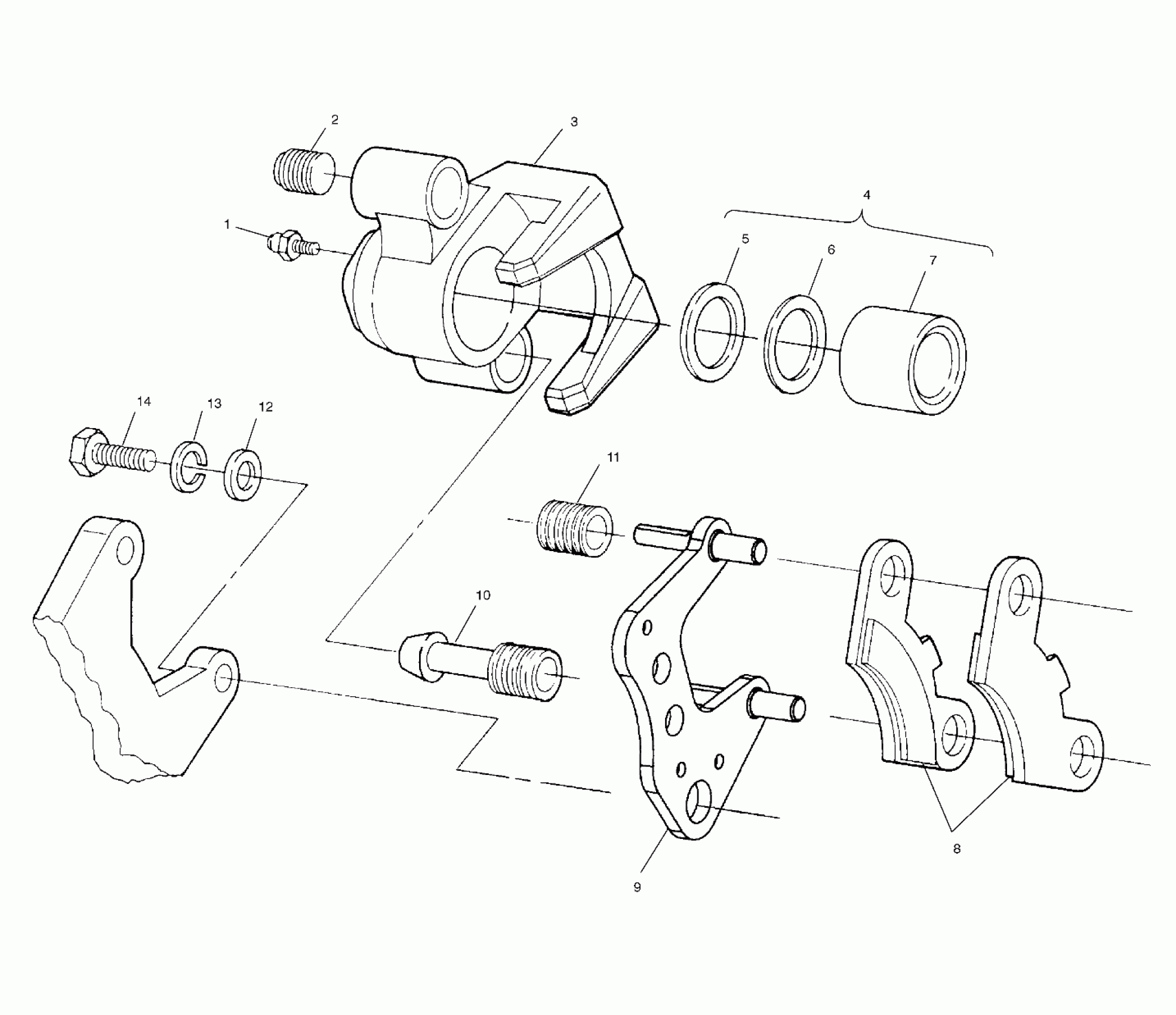

Polaris DIESEL - A00CH46CA FRONT BRAKE - A00CH46CA (4954785478B007) Diagram

CALIPER,ASM,BRAKE,FRONT,LH (Incl. 1-3,5-7,9-11)

CALIPER,ASM,BRAKE,FRONT,RH (Incl. 1-3,5-7,9-11)

SCREW,BLEEDER

SETSCREW,SKT.HD.(10)

KIT-BOOT,FRONT BRAKE

CALIPER,LH,BRAKE,MACH. Substituted by 5131261

CALIPER,RH,BRAKE,MACH. Substituted by 5131262

PISTON & SEAL,KIT (Incl. 5-7)

SQUARE RING-MOLDED (.094) (.094)

RING,SQUARE,MOLDED (.103 x .134)

PISTON-BRAKE,LONG Substituted by 1930665

BRAKE PADS,AFT,FRONT

KIT,FR.BRAKEPAD,HVY.DUTY

KIT,BRAKEPAD,FR,(ATV)

MOUNT,ASM,CALIPER

Boot, Bushing

Boot, Pin Seal

Washer, Flat (See Front Strut Pg. B5, Ref. 4)

Washer, Spring Lock (See Front Strut Pg. B5, Ref. 8)

Screw (See Front Strut Pg. B5, Ref. 7)
