Description

Price

1

Bolt (See Cylinder Pg. D8, Ref. 5)

-------

Unavailable

2

Cover, Governor (See Cylinder Pg. D8, Ref. 6)

-------

Unavailable

3

Gasket, Cover (See Cylinder Pg. D8, Ref. 7)

-------

Unavailable

4

ENG.DW46 [No Longer Available] (DW46PLE01)

3085825

Unavailable

5

MOUNT,ENG,TOP,BLK

5241453-067

Unavailable

6

MOUNT,RUBBER,TOP

3110044

Unavailable

6

MOUNT,RUBBER,TOP

3110044

Unavailable

7

NUT

7547108

$4.79

7

NUT

7547108

$4.79

7

NUT

7547108

$4.79

7

NUT

7547108

$4.79

7

NUT

7547108

$4.79

8

BOLT(10)

7512232

$1.49

9

CABLE,GND-ENGINE

4010132

Unavailable

10

BOLT(10)

7512315

$4.79

10

BOLT(10)

7512315

$4.79

11

LOCK WASHER(10)

7552901

$1.49

12

CLAMP,NYLON,CABLE(10)

7080539

$4.79

13

RIVET(50)

7621462

$1.49

14

STRAP,FRAME SUPPORT,BLK

5224658-067

Unavailable

15

SPACER

3085974

$1.43

16

CABLE,BATTERY,RED

4010148

$19.68

17

NUT-FLANGE(10)

3082910

$2.39

18

CLAMP, NARROW BAND(10)

7080511

$4.79

19

Screw

7517278

$5.59

20

CABLE-BLK (BATTERY/GND)30.5"

4010201

$16.47

21

BOOT,CLUTCH INTAKE

5410421

$11.19

22

WASHER, FLAT(10)

7555815

$3.99

23

MOUNT,RUBBER,FRONT

3110046

Unavailable

24

BUSHING-.437 X.770 X.50

5430261

$7.19

25

WASHER-.440X1.25X.190 FL-Y

5210748

$3.99

26

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.79

27

BOLT(10)

7512566

$30.79

28

Asm., Drive Clutch, ATV-06 (See Drive Clutch Pg. C2, Ref. 17)

-------

Unavailable

29

SCREW & WASHER(10)

3084205

$3.99

30

Bracket, Retainer, Seal (See Clutch Cover Pg. C4, Ref. 21)

-------

Unavailable

31

CLAMP-HOSE,.875-SS

7080474

$8.40

32

BOLT(10)

7515417

$4.79

33

MOUNT,FR.ENGINE,BLK.

5241150-067

Unavailable

34

WASHER(10)

7555801

$3.99

35

HOSE,3/4X22"

5411410

Unavailable

36

CLAMP,HOSE,1.25,WORM DRIVE

7080696

$5.59

37

Gasket, Exhaust (See Cylinder Pg. D8, Ref. 30)

-------

Unavailable

38

MANIFOLD,BLK

1260920-029

Unavailable

39

WASHER LOCK ,(10)

3080530

$3.19

40

NUT(10)

3080285

Unavailable

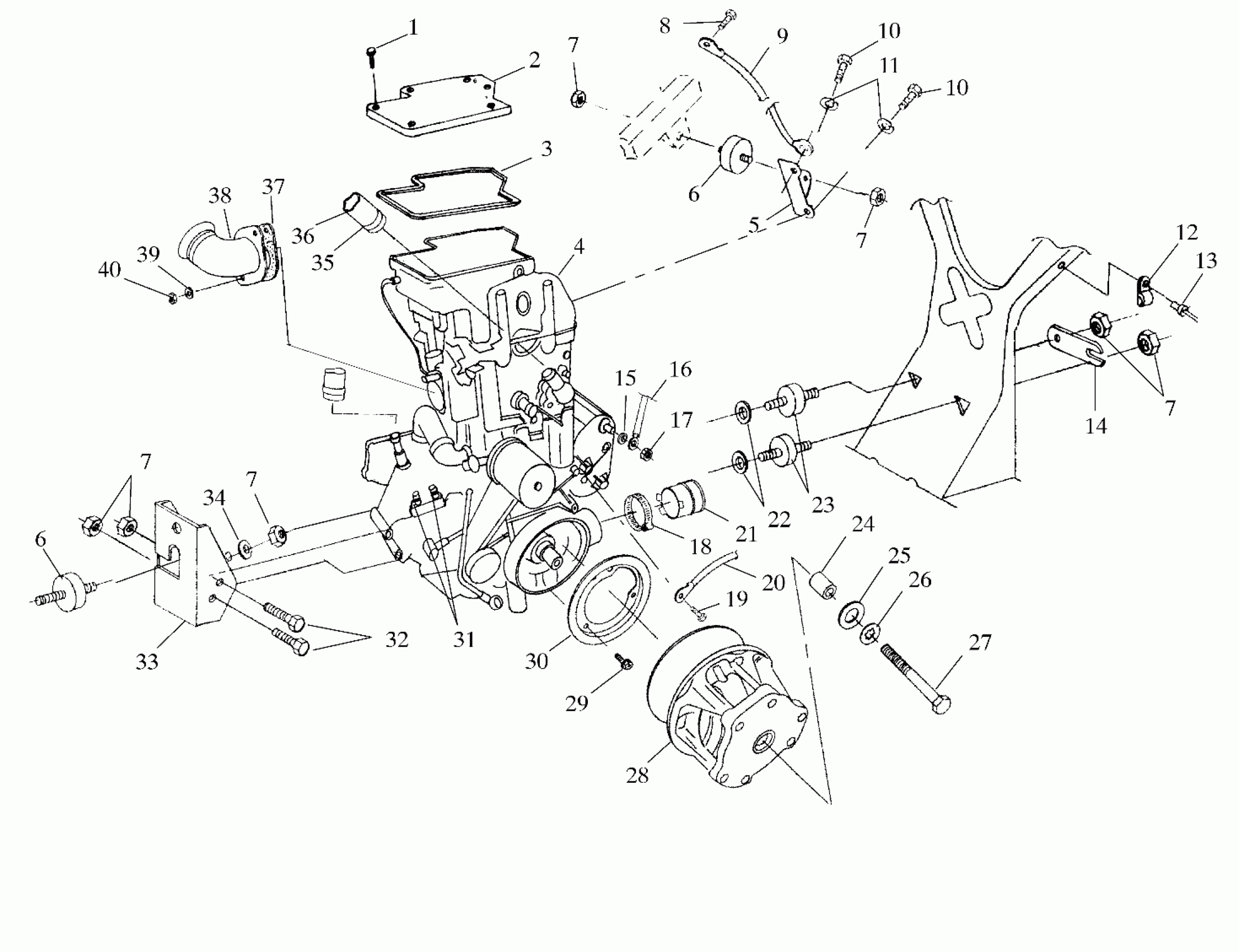

Polaris DIESEL - A00CH46CA ENGINE MOUNTING - A00CH46CA (4954785478A012) Diagram

Bolt (See Cylinder Pg. D8, Ref. 5)

Cover, Governor (See Cylinder Pg. D8, Ref. 6)

Gasket, Cover (See Cylinder Pg. D8, Ref. 7)

ENG.DW46 [No Longer Available] (DW46PLE01)

MOUNT,ENG,TOP,BLK

MOUNT,RUBBER,TOP

MOUNT,RUBBER,TOP

NUT

NUT

NUT

NUT

NUT

BOLT(10)

CABLE,GND-ENGINE

BOLT(10)

BOLT(10)

LOCK WASHER(10)

CLAMP,NYLON,CABLE(10)

RIVET(50)

STRAP,FRAME SUPPORT,BLK

SPACER

CABLE,BATTERY,RED

NUT-FLANGE(10)

CLAMP, NARROW BAND(10)

Screw

CABLE-BLK (BATTERY/GND)30.5"

BOOT,CLUTCH INTAKE

WASHER, FLAT(10)

MOUNT,RUBBER,FRONT

BUSHING-.437 X.770 X.50

WASHER-.440X1.25X.190 FL-Y

WASHER-7/16-INT LK-(1222)-Z

BOLT(10)

Asm., Drive Clutch, ATV-06 (See Drive Clutch Pg. C2, Ref. 17)

SCREW & WASHER(10)

Bracket, Retainer, Seal (See Clutch Cover Pg. C4, Ref. 21)

CLAMP-HOSE,.875-SS

BOLT(10)

MOUNT,FR.ENGINE,BLK.

WASHER(10)

HOSE,3/4X22"

CLAMP,HOSE,1.25,WORM DRIVE

Gasket, Exhaust (See Cylinder Pg. D8, Ref. 30)

MANIFOLD,BLK

WASHER LOCK ,(10)

NUT(10)
