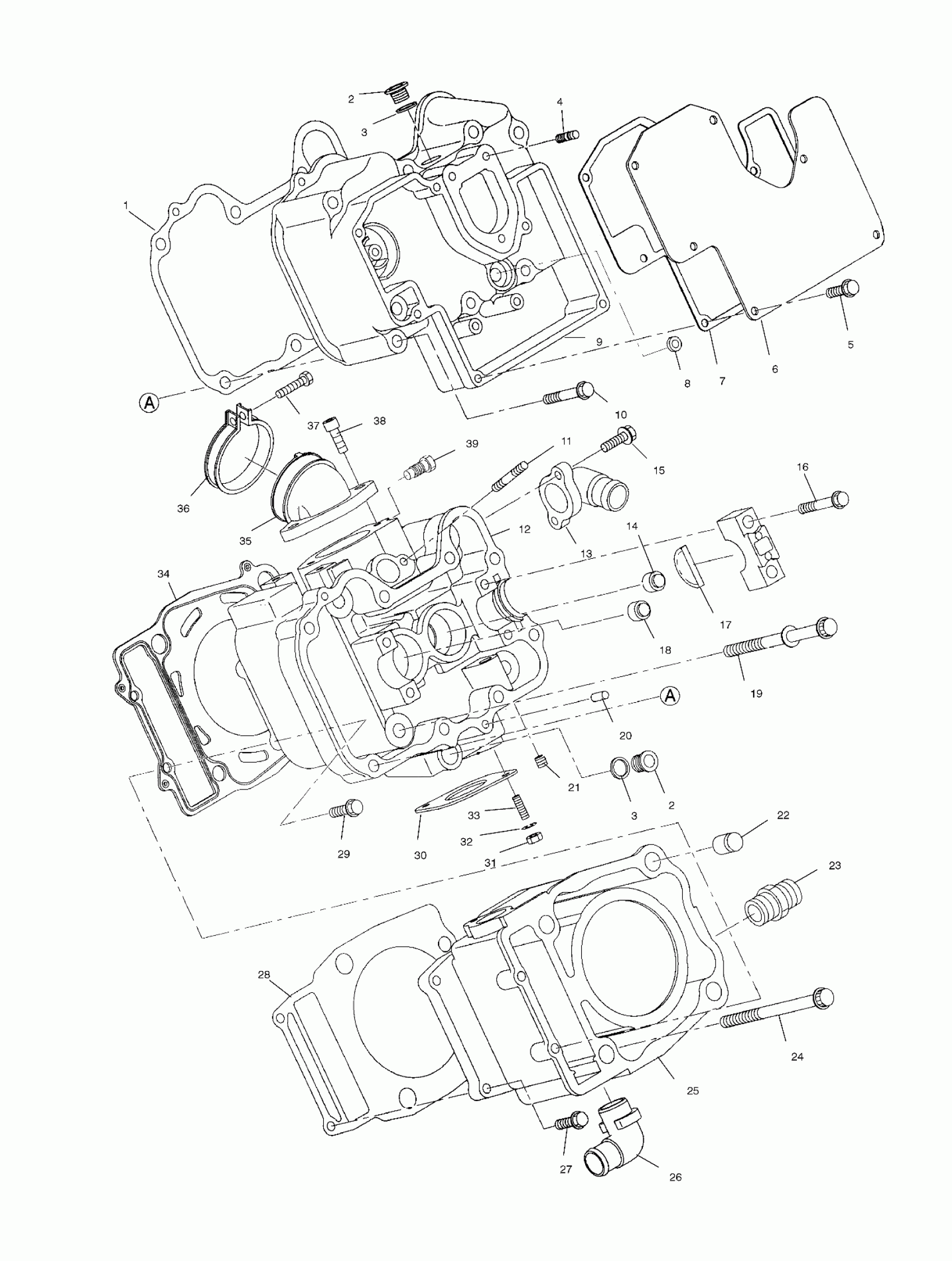

Polaris DIESEL - A00CH46CA CYLINDER - A00CH46CA (4954785478D007) Diagram

#

Description
Price

1

GASKET,ROCKER COVER

3085968

$17.35

2

PLUG

3084860

$7.14

2

PLUG

3084860

$7.14

3

GASKET

3084861

$4.84

3

GASKET

3084861

$4.84

4

STUD

3085966

$2.22

5

BOLT, FLANGE(10) Substituted by 3087035

3083568

$3.97

6

COVER,GOV.

3085969

$27.94

7

GASKET,COVER 1

3085970

Unavailable

8

SEAL,OIL

3085967

Unavailable

9

COVER-ROCKER * (Incl. 4,8)

3086185

Unavailable

10

BOLT,FLANGE

3084841

$3.17

11

STUD Substituted by 3086775

3085086

Unavailable

12

CYLINDER,HEAD Substituted by 3087085 (Incl. 11,14,16,18,20,21,33)

3085954

Unavailable

13

ADAPTER,(WATER OUT) Substituted by 3084870

3085072

$64.75

14

SEAL,INTAKE VALVE

3084858

$13.75

15

BOLT,FLANGE(10)

3084877

Unavailable

16

BOLT,CAM CAP

3085957

Unavailable

17

ADAPTER,CAMSHAFT

3085964

$11.51

18

SEAL,EXHAUST VALVE

3084859

$24.27

19

BOLT

3084875

Unavailable

20

PIN,DOWEL(10) Substituted by 3080103

3083054

$7.14

21

PLUG, BLIND

3084862

Unavailable

22

PIN,STRAIGHT

3084838

Unavailable

23

UNION,OIL PUMP

3084849

Unavailable

24

BOLT, FLANGE

3084873

Unavailable

25

CYLINDER (Incl. 26)

3085953

Unavailable

26

PIPE, 2 ELBOW Substituted by 3086747

3084130

Unavailable

27

BOLT, FLANGE

3084874

Unavailable

28

Gasket, Cylinder

3085370

$40.46

29

BOLT, FLANGE

3084533

$1.43

30

GASKET,EXH.

3085075

$40.46

31

NUT(10)

3080285

Unavailable

32

WASHER LOCK ,(10)

3080530

$3.17

33

STUD (10)

3080016

$5.71

34

GASKET,HEAD,1.0 (.95)

3085958

Unavailable

34

GASKET-HEAD (1.05)

3086151

$45.39

34

GASKET,HEAD,1.2 (1.15)

3085959

$43.39

34

GASKET-HEAD (1.25)

3086152

Unavailable

34

GASKET,HEAD,1.4 (1.35)

3085960

Unavailable

34

GASKET-HEAD (1.45)

3086153

Unavailable

34

GASKET,HEAD,1.6 (1.55)

3085961

Unavailable

34

GASKET-HEAD (1.65)

3086154

Unavailable

34

GASKET,HEAD,1.8 (1.75)

3085962

Unavailable

34

GASKET-HEAD (1.85)

3086155

Unavailable

34

GASKET,HEAD,2.0 (1.95)

3085963

Unavailable

35

ADAPTER

3084879

Unavailable

36

BAND ASM. Substituted by 3083166

3083085

$19.84

37

SCREW,(10)

3081497

$2.38

38

Bolt, Allen

3081330

$3.97

39

BOLT

3086156

$14.13
