Description

Price

1

CLAMP,HOSE,1.25,WORM DRIVE

7080696

$5.56

1

CLAMP,HOSE,1.25,WORM DRIVE

7080696

$5.56

2

CAP-PRESSURE,13 PSI

1240044

$48.56

3

FILLER-REMOTE COOLANT

5433364

$48.40

4

BRKT,REMOTE COOLANT FILL

5243505-067

Unavailable

5

RIVET,INTERLOCK,B(50)

7661638

$1.19

6

FLEXGUARD Substituted by 5433948

5433707

Unavailable

7

HOSE,UPPER ENGINE

5411783

$68.79

8

CLAMP-ROTO SPRING 1"

7080827

Unavailable

8

CLAMP-ROTO SPRING 1"

7080827

Unavailable

9

SCREW,(10)

7512024

$4.76

10

HOSE,FILLER NECK

5411632

Unavailable

11

CLAMP-ROTO CLIP

7080826

$4.76

11

CLAMP-ROTO CLIP

7080826

$4.76

12

Screw

7517659

$3.97

13

FAN&MOTOR,ASM,SPAL

2410123

$214.69

14

CLIP,U,ZY

7670111

Unavailable

14

CLIP,U,ZY

7670111

Unavailable

15

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

16

NUTSERT,HEX(10)

7547069

$3.97

17

Mount, Rubber

3110032

Unavailable

18

Spacer, Mount

5020572

$8.73

19

SHROUD-FAN,ATV

5433059

Unavailable

20

STRAP-PANDUIT,PANEL TIE

7080890

$5.71

21

SENSOR-THERMAL/HARNESS

4010161

$128.24

22

Radiator

1240045

Unavailable

23

WASHER(10)

7552605

$5.69

24

SCREW(10)

7512113

$3.97

25

COVER-RADIATOR,W/MESH

5433317

$35.08

26

O RING

5410607

Unavailable

27

VALVE-PLASTIC DRAIN

7052244

Unavailable

28

BUSHING-MOUNT,LOWER RADIATOR

5410584

$5.56

29

BRKT,RADIATOR,LOWER,BLK

5243503-067

$154.99

30

BOLT(10)

7512232

$1.19

31

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

32

HOSE,LOWER ENGINE

5411782

Unavailable

33

PLASTIC,HOSEGUARD 18"

5521550

$10.51

34

CLAMP-HOSE

7080807

$9.52

35

SCREW,(10)

7517386

$1.19

36

CAP-OVER FLOW BOTTLE,DRILLED

5430743

$5.65

37

GASKET-OVERFLOW CAP

5810279

$2.41

38

PLUG-CAP 9X(GREEN) FLEX TEMP

5433774

$5.65

39

TANK,SURGE,DIESEL

5432855

$26.98

40

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

$89.99

41

FITTING,90 DEGREE

7052065

$7.14

42

SCREW(10)

7512084

$1.19

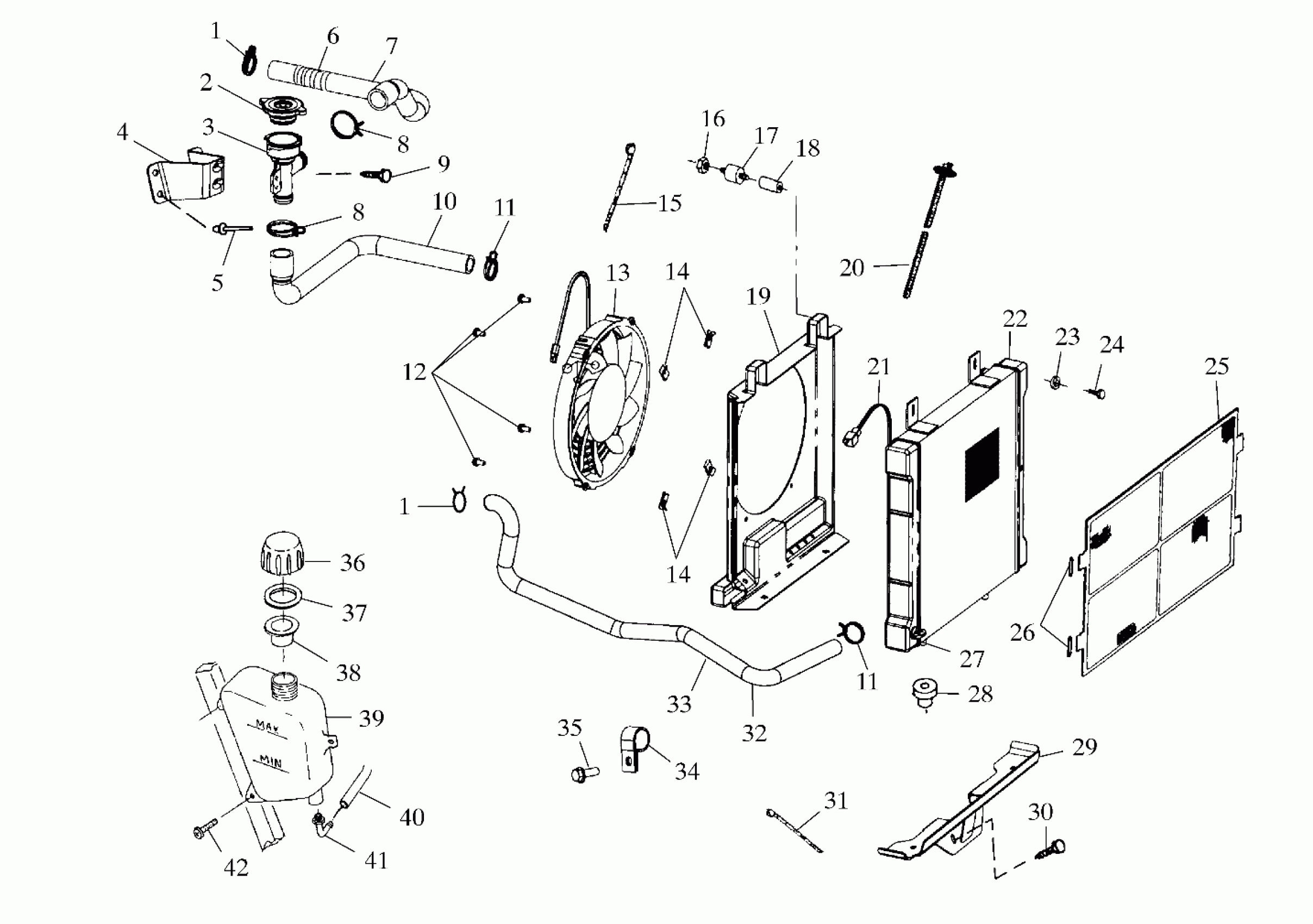

Polaris DIESEL - A00CH46CA COOLING SYSTEM - A00CH46CA (4954785478A011) Diagram

CLAMP,HOSE,1.25,WORM DRIVE

CLAMP,HOSE,1.25,WORM DRIVE

CAP-PRESSURE,13 PSI

FILLER-REMOTE COOLANT

BRKT,REMOTE COOLANT FILL

RIVET,INTERLOCK,B(50)

FLEXGUARD Substituted by 5433948

HOSE,UPPER ENGINE

CLAMP-ROTO SPRING 1"

CLAMP-ROTO SPRING 1"

SCREW,(10)

HOSE,FILLER NECK

CLAMP-ROTO CLIP

CLAMP-ROTO CLIP

Screw

FAN&MOTOR,ASM,SPAL

CLIP,U,ZY

CLIP,U,ZY

CABLE-TIE,25-76MM,WEATH.-RES.

NUTSERT,HEX(10)

Mount, Rubber

Spacer, Mount

SHROUD-FAN,ATV

STRAP-PANDUIT,PANEL TIE

SENSOR-THERMAL/HARNESS

Radiator

WASHER(10)

SCREW(10)

COVER-RADIATOR,W/MESH

O RING

VALVE-PLASTIC DRAIN

BUSHING-MOUNT,LOWER RADIATOR

BRKT,RADIATOR,LOWER,BLK

BOLT(10)

CABLE-TIE,DIA12-50MM,WTHR-RES.

HOSE,LOWER ENGINE

PLASTIC,HOSEGUARD 18"

CLAMP-HOSE

SCREW,(10)

CAP-OVER FLOW BOTTLE,DRILLED

GASKET-OVERFLOW CAP

PLUG-CAP 9X(GREEN) FLEX TEMP

TANK,SURGE,DIESEL

FUEL LINE,1/4 ID(1525 CM.)

FITTING,90 DEGREE

SCREW(10)
