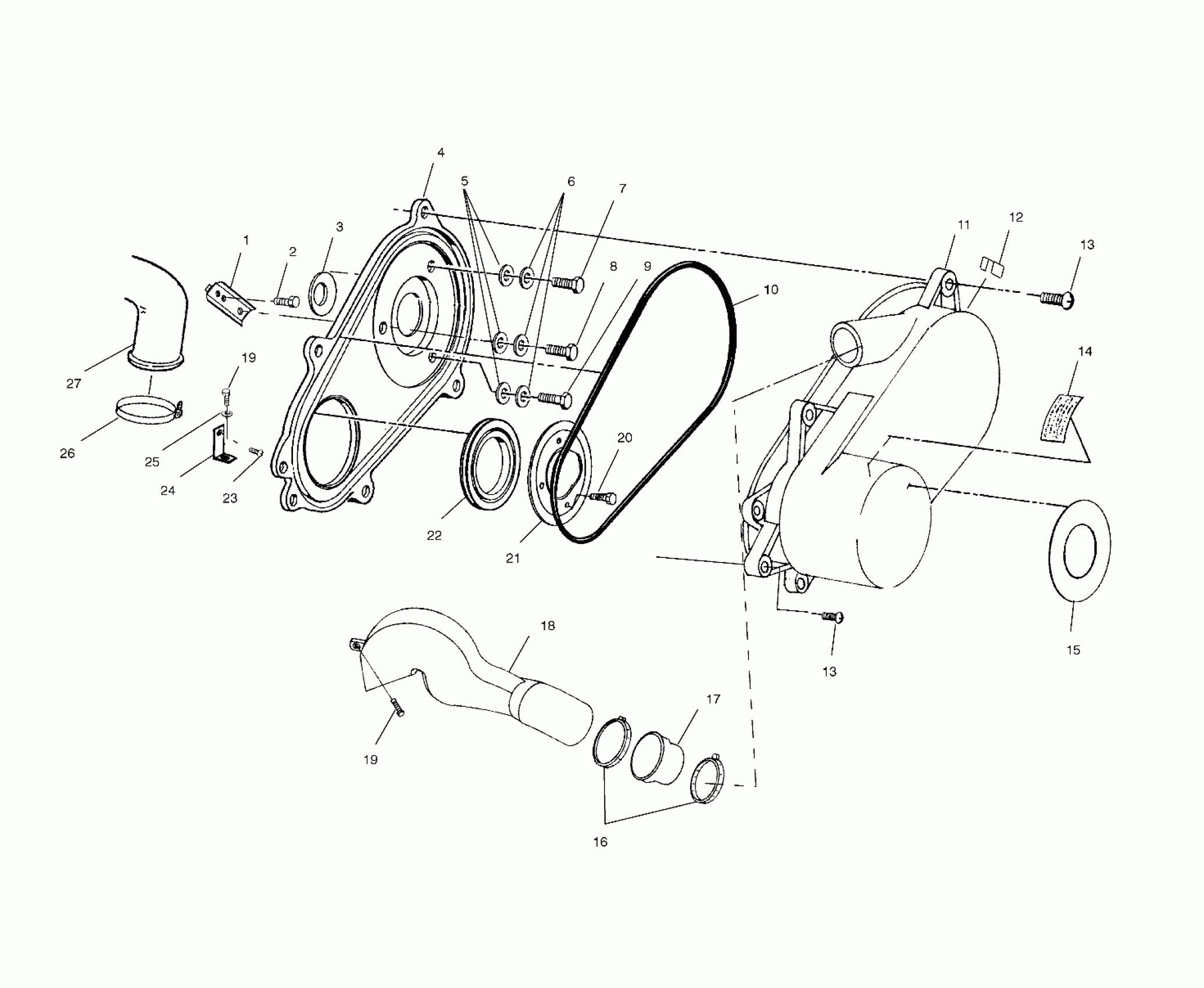

Polaris DIESEL - A00CH46CA CLUTCH COVER - A00CH46CA (4954785478C004) Diagram

#

Description
Price

1

BRKT,R.CLUTCH CVR,BLK.

1040519-067

Unavailable

2

BOLT(10)

7512240

$3.97

3

SEAL-CLUTCH COVER,TRANSMISSION

5411901

Unavailable

4

DESC NOT_AVAILABLE (Incl. 10,13,22,23)

2201573

Unavailable

5

WASHER-.28X.62-.14(RBR-BK)-Z

7555748

$4.76

6

WASHER(10)

7552605

$5.69

7

BOLT(10)

7512247

Unavailable

8

BOLT(10)

7512277

$4.76

9

BOLT(10)

7512278

Unavailable

10

SEAL,CLUTCHCOVER

5521301

$32.37

11

COVER,CLUTCH OUTER,HV GREY Substituted by 5433451-070

5433451-328

$186.17

12

CLIP,CLUTCH COVER(10)

7670051

Unavailable

13

SCREW(10)

7512094

$1.59

13

SCREW(10)

7512094

$1.59

14

DECAL,CLUTCH COVER Substituted by 7078689

7074946

Unavailable

15

DECAL"AUTO./EBS",CLUTCH

7077666

Unavailable

16

CABLE-TIE,10-102MM,WEATH.-RES.

7080761

$2.41

17

BOOT,DUCT,HI-FLOW

5411489

Unavailable

18

DUCT,CLUTCH OUTLET,16.6 Substituted by 5433980

5432947

Unavailable

19

BOLT(10)

7512232

$1.19

19

BOLT(10)

7512232

$1.19

20

Bolt & Washer (See Crankcase Pg. D5, Ref. 19)

----

Unavailable

21

BRKT,RETAINER SEAL,BLK. Substituted by 5242046-067

5240409-067

$36.41

22

Seal, Cover Case

5410575

$44.51

23

SCREW(10)

7512095

$4.76

24

BRKT-CLUTCH COVER,BLK

5241156-067

Unavailable

25

WASHER(10)

7555935

$2.38

26

CLAMP, NARROW BAND(10)

7080511

$4.76

27

Duct, Air Inlet, Clutch (See Airbox Pg. B1, Ref. 7)

----

Unavailable
