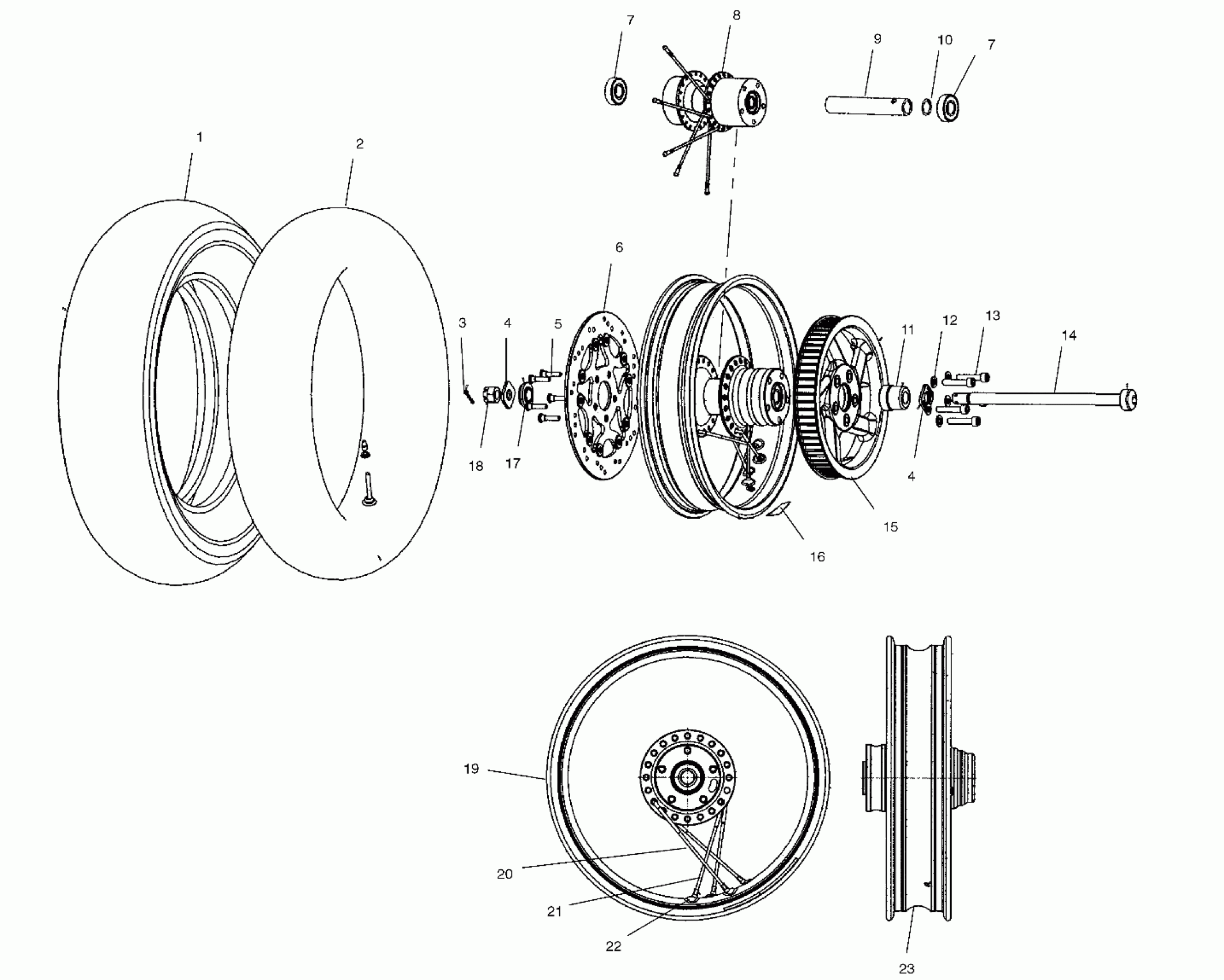

Polaris DELUXE TOURING CRUISER ALL OPTIONS - V02TD16 WHEELS, REAR - V02TD16/ALL OPTIONS (4976347634B01) Diagram

#

Description
Price

-

Asm. Wheel [Incl. 7,9,10,19-23]

1520530

$939.99

1

Tire, Rear

5411970

$354.99

2

Tube, Tire, Inner

1820875

$105.22

3

Pin, Cotter

7663003

$3.81

4

Washer, Indicator, RH

5245088-067

$13.60

4

Washer, Indicator, LH

5245087-067

$12.65

4

Washer, Indicator, RH

5245088-067

$13.60

4

Washer, Indicator, LH

5245087-067

$12.65

5

Screw

7517978

$33.79

6

Rotor, Brake, Rear

1910323

Unavailable

7

Bearing, Ball

3513509

Unavailable

7

Bearing, Ball

3513509

Unavailable

8

Asm., Hub

1520482

Unavailable

9

Spacer, Bearing

5132314

Unavailable

10

O-Ring

5411820

Unavailable

11

Spacer, RH

5132624

Unavailable

12

WASHER, FLAT

7556234

$3.19

13

Screw

7518044

$6.19

14

Axle

1013184

$125.40

15

Sprocket, 64T

1341378

$414.99

16

Decal, Rim, Laced, French

7079024

Unavailable

17

Spacer, Axle, Rear

5010429

$22.51

18

Nut, Castle

7547009

$4.62

19

Rim

5132867

Unavailable

19

Weight, Balance, 1/4 oz.

1520507

Unavailable

20

Spoke, Outer

5333979

Unavailable

21

Spoke, Inner

5333978

$10.63

22

Nipple, Spoke

5132870

Unavailable

23

Flap, Rim

5812199

$11.90
