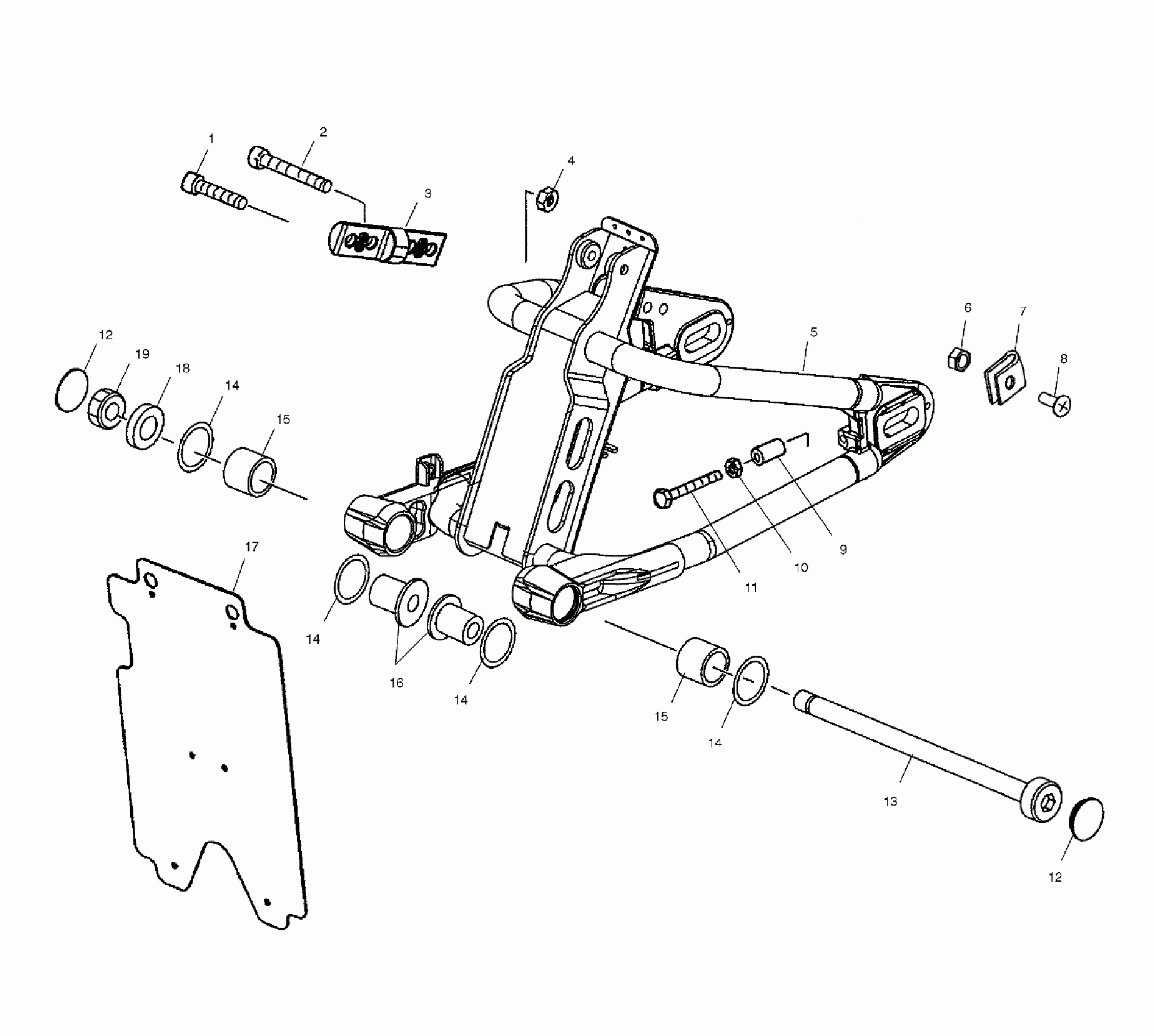

Polaris DELUXE TOURING CRUISER ALL OPTIONS - V02TD16 SUSPENSION, SWING ARM - V02TD16/ALL OPTIONS (4983668366A05) Diagram

#

Description
Price

1

Screw

7518057

$3.57

2

Screw

7518058

$5.40

3

Link, Removable

1013255-067

$45.24

4

NUT

7547039

Unavailable

5

Arm, Swing

1013404-067

$559.99

6

Nut

7547141

$2.43

7

CLAMP-REAR BRAKE

7080983

$3.99

8

Screw

7517770

$2.39

9

Spacer, Swing Arm Alignment

5131908

$6.37

10

NUT

7547076

$2.60

11

Screw

7517508

Unavailable

12

Cap, Swing Arm Pivot

5132481

$7.38

12

Cap, Swing Arm Pivot

5132481

$7.38

13

Shaft, Swing Arm Pivot

1013183

$37.30

14

O-Ring

5411367

$6.99

14

O-Ring

5411367

$6.99

14

O-Ring

5411367

$6.99

14

O-Ring

5411367

$6.99

15

Bushing, Swing Arm

5432767

Unavailable

15

Bushing, Swing Arm

5432767

Unavailable

16

Sleeve, Swing Arm

5010445

$28.62

17

Flap, Debris

5812358

$13.89

18

Washer

7556021

$7.67

19

Nut, FLEXLOC

7547048

Unavailable
