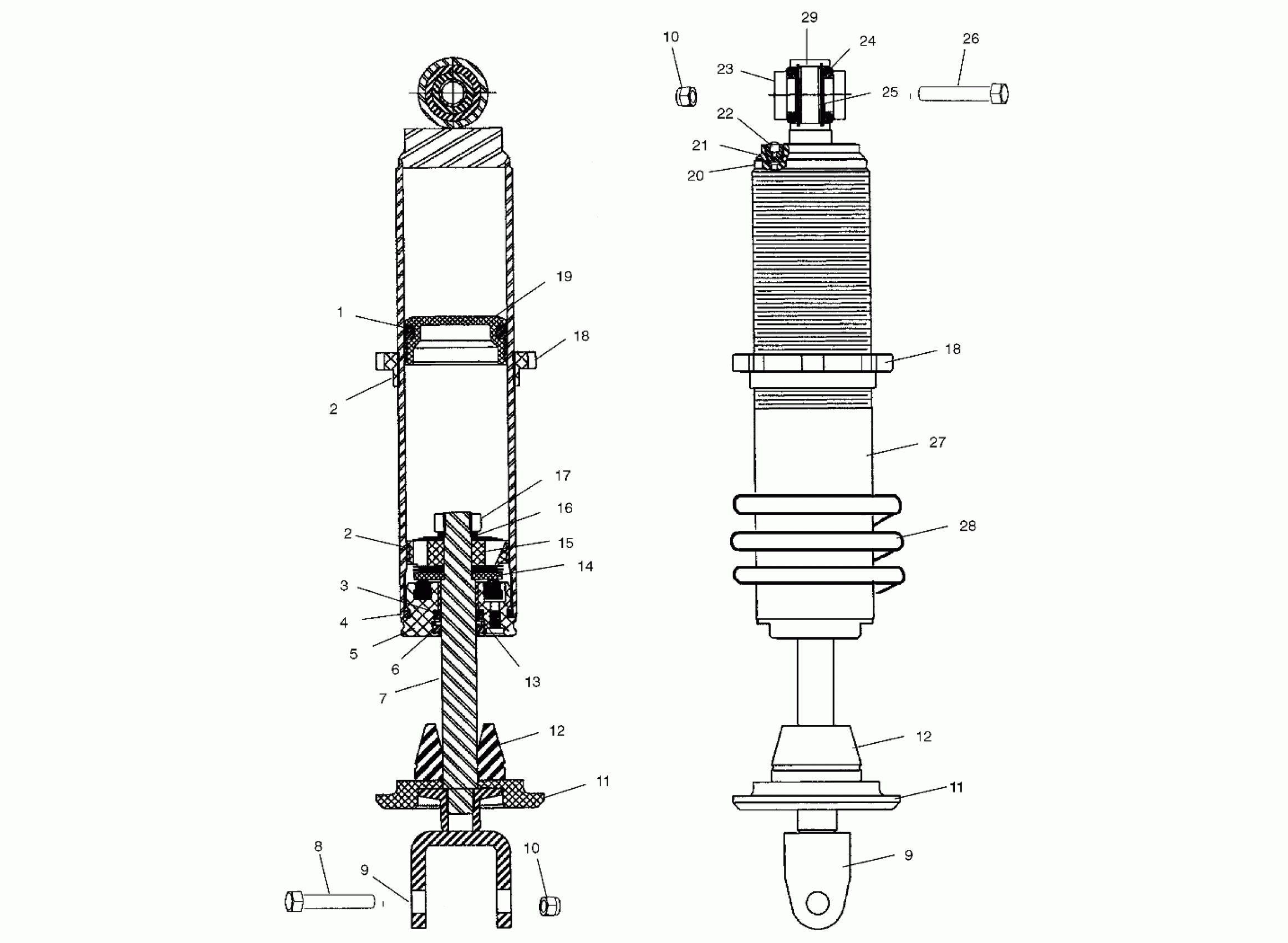

Polaris DELUXE TOURING CRUISER ALL OPTIONS - V02TD16 SUSPENSION, SHOCK, REAR - V02TD16/ALL OPTIONS (4976347634B09) Diagram

#

Description
Price

-

Decal, Warning

1500454

Unavailable

-

Shock, V92TC

1500280

Unavailable

-

Decal, Victory/Polaris, FOX

1500477

Unavailable

1

O-Ring

1500208

$7.98

2

BEARING, STEP CUT

1500230

$31.99

2

BEARING, STEP CUT

1500230

$31.99

3

O-Ring

1500259

$3.97

4

O-Ring

1500228

Unavailable

5

Bearing

1500465

Unavailable

6

U-Cup

1500256

$19.99

7

Shaft

1500476

Unavailable

8

SCR-HEXHD,M10X60,0600088

7517988

$3.81

9

Eyelet, Clevis

1500475

Unavailable

9

Eyelet, Clevis

1500475

Unavailable

10

Nut

7547122

Unavailable

10

Nut

7547122

Unavailable

11

Retainer, Spring

1500466

$66.67

11

Retainer, Spring

1500466

$66.67

12

Bumper

1500468

Unavailable

12

Bumper

1500468

Unavailable

13

O-Ring

1500022

Unavailable

13

Screw

1500295

Unavailable

14

Plate

1500470

$11.19

15

Piston

1500464

Unavailable

16

Washer

1500471

Unavailable

17

Nut, Lock

1500472

$23.99

18

Ring, Spring Preload

1500462

Unavailable

18

Ring, Spring Preload

1500462

Unavailable

19

Piston, Floating

1500211

$48.00

20

Pellet

1500460

$0.71

21

Retainer, Pellet

1500478

$17.46

22

Ball, Nylon

1500461

$1.83

23

Reducer

1500173

Unavailable

24

O-RING

1500093

$7.27

25

Ring, Snap

7710446

$6.23

26

Screw

7517962

$7.94

27

Body

1500474

Unavailable

28

Spring, Shock

7041759

Unavailable

29

Bearing, Spherical

3513506

$64.59
