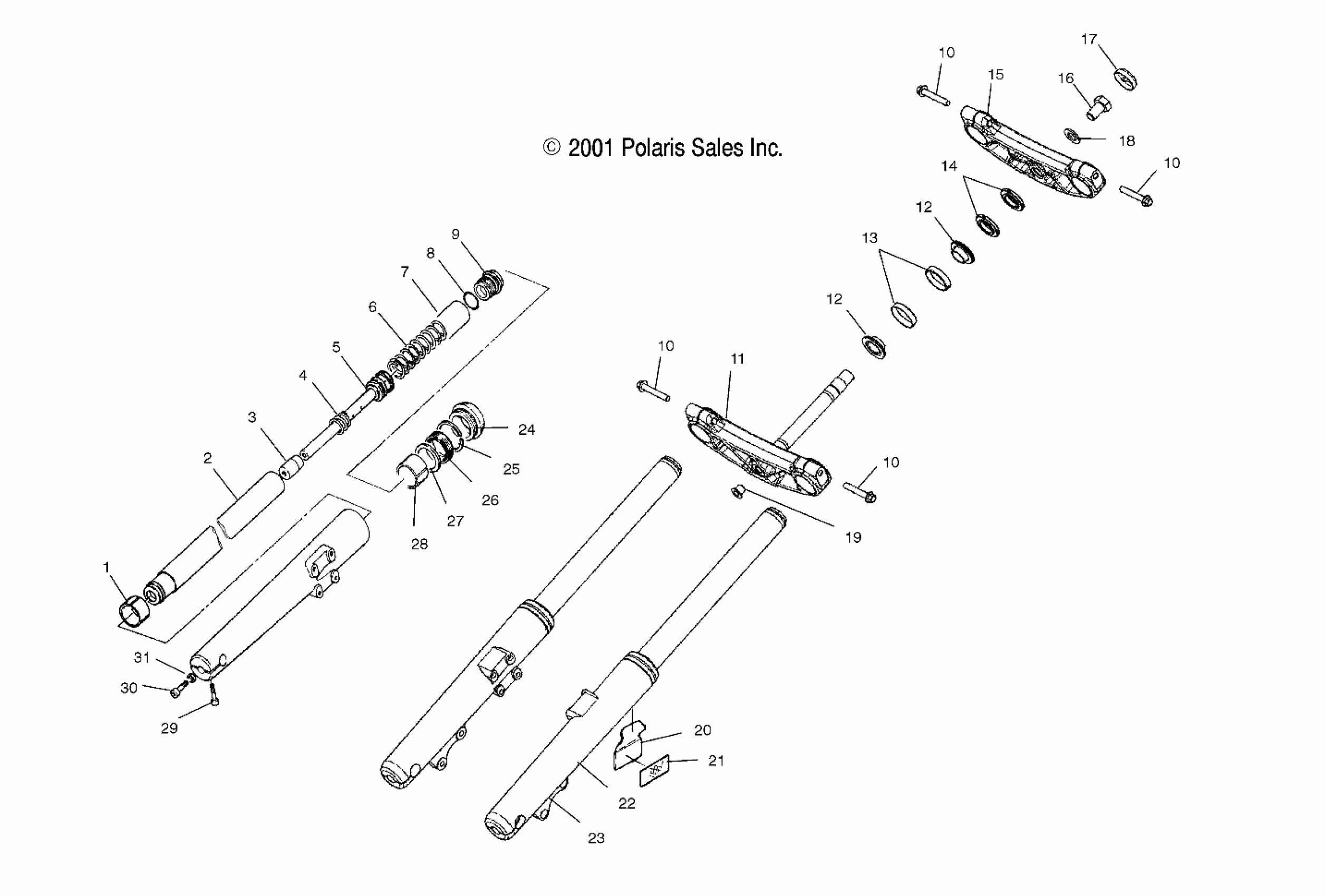

Polaris DELUXE TOURING CRUISER ALL OPTIONS - V02TD16 SUSPENSION, FRONT FORKS - V02TD16/ALL OPTIONS (4976287628A11) Diagram

#

Description
Price

-

Oil, Fork

2872184

Unavailable

-

Asm., Fork Leg, LH [Incl. 1-5,8-9,6,24-28,22,29,31-7]

1820753

$409.99

-

Asm., Fork Leg, RH [Incl. 1-5,8-9,6,24-28,23,29,31-7]

1820848

$409.99

1

Bushing, Lower

3585714

$27.78

2

Tube, Stanchion

5133282

$569.99

3

Foot, Buffer

5131498

Unavailable

4

Spring, Rebound

7041624

$10.63

5

Ring, Damper

5434228

Unavailable

5

Kit, Damper Rod/Segment

2202093

$41.27

5

Rod, Damper

5334090

Unavailable

6

Spring, Compression

7042026

$96.03

7

Spacer, Preload

5521585

$14.68

8

O-Ring

5411330

$2.14

9

Plug, Fork

5131502

$65.48

10

Screw

7517944

Unavailable

10

Screw

7517944

Unavailable

10

Screw

7517944

Unavailable

10

Screw

7517944

Unavailable

11

Clamp, Triple, Lower

1820926

Unavailable

12

Bearing, Tapered, Sealed

3554510

Unavailable

12

Bearing, Tapered, Sealed

3554510

Unavailable

13

Bearing, Tapered Roller Cup

3554507

$31.99

14

Nut, Steering Post

5133049

$29.21

15

Clamp, Triple, Upper

5132629

$212.70

16

Bolt, Steering Post Cap

5133050

$22.62

17

Cap, Steering Post

1013570

$48.39

18

Washer, Flat

7556187

$3.02

19

Plug

5412121

$0.79

20

Base, Reflector, LH

5433864

$15.56

20

Base, Reflector, RH

5433748

$13.89

21

Reflector

5433878

$5.71

22

Kit, Slider Unit, LH [Incl. 25-28]

2202092

$514.99

23

Kit, Slider Unit, RH [Incl. 25-28]

2202091

$514.99

24

Cap, Dust

5133283

$56.65

24

Seal, Dust Cap

3610086

$31.75

25

Ring, Stop

5211827

$14.56

26

Seal, Oil

3610068

Unavailable

27

Cap, Oil Seal

5131504

$20.22

28

Bushing, Upper

3585715

$43.65

29

Screw

1500168

Unavailable

30

Screw

1500169

$4.21

31

Washer, Oil Seal

3610069

$23.81
