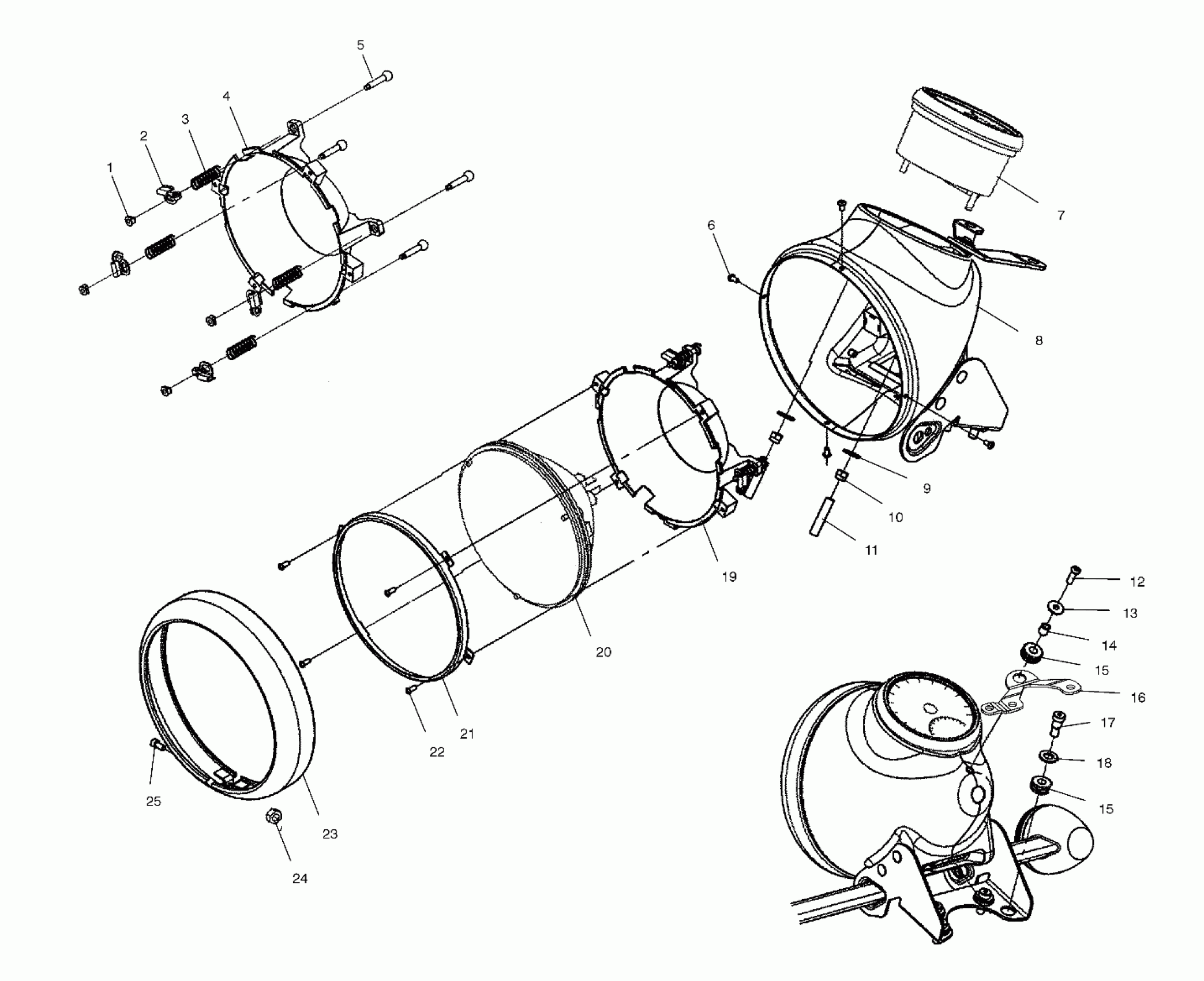

Polaris DELUXE TOURING CRUISER ALL OPTIONS - V02TD16 ELECTRICAL, HEADLIGHT - V02TD16/ALL OPTIONS (4976347634B02) Diagram

#

Description
Price

1

Nut, Adjust

5433953

$5.40

2

Bracket, Adjust

1013696

$10.63

3

Spring

7041958

Unavailable

4

Mount, Inner

5433952

Unavailable

5

Screw

7547162

Unavailable

6

SCREW

7517486

Unavailable

7

Gasket, Speedometer

5811529

$17.94

7

Asm., Gauge, Speed/Tach

3280386

Unavailable

7

Asm., Gauge, Speed/Tach [Can.]

3280387

Unavailable

8

Asm., Headlight Housing

1013468

$529.99

9

WSHR-6.4X18.0X1.6 ZPB

7556064

$5.22

10

NUT, NYLOK

7547106

$3.19

11

Cap, Thread Cover

5411938

$1.83

12

Screw

7517504

$2.60

13

Washer

7556228

$5.40

14

Sleeve, Upper

5132725

$5.95

15

Grommet, Upper

5411982

$2.38

15

Grommet, Upper

5411982

$2.38

16

Bracket, Upper

5245743

$72.44

17

Screw

7517852

$6.23

18

Washer, Flat

7556155

$5.22

19

Asm, Mount Adjust, Inner [Incl. 1-5]

1013362

Unavailable

20

Headlight, Sealed Beam

4010160

Unavailable

20

Headlight, Halogen, UK

4010441

Unavailable

21

Ring, Retaining

5244923

Unavailable

22

Screw

7517910

$5.59

23

Bezel

1013290

$212.70

24

NUT, NYLOK

7547059

$4.79

25

Screw

7517967

Unavailable
