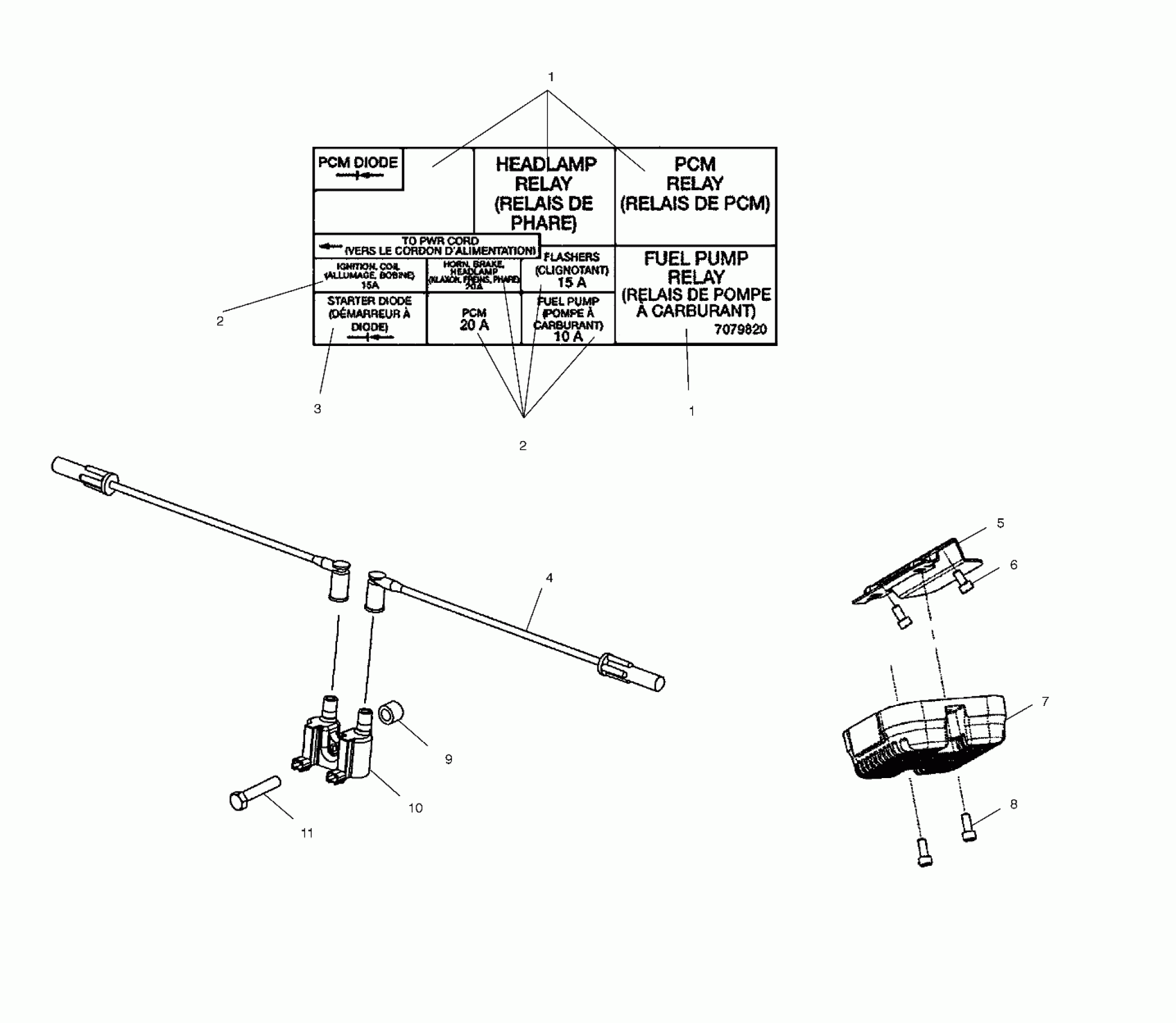

Polaris DELUXE TOURING CRUISER ALL OPTIONS - V02TD16 ELECTRICAL, HARNESSES - V02TD16/ALL OPTIONS (4976347634C01) Diagram

#

Description
Price

-

CLIP, ELECTRICAL

7080737

Unavailable

-

Connector, Fender

4010153

$13.89

-

Lock, Connector

4010154

$1.35

-

Harness, Injector

2460811

Unavailable

-

Harness, Driving Lights

2460956

$61.90

-

Decal, Fuse Box

7079820

Unavailable

-

Harness, Main Wire

2460923

$424.99

-

Clip, Wire Harness

7080930

$2.22

-

Harness, Rear

2460954

$90.48

1

Relay, Micro

2410314

Unavailable

1

Relay, Micro

2410314

Unavailable

2

FUSE-PARK,20 AMP

2434017

Unavailable

2

FUSE-IGNITION,10 AMP

2434016

$4.79

2

FUSE-MINI BLADE,15 AMP

2410280

Unavailable

2

FUSE-PARK,20 AMP

2434017

Unavailable

2

FUSE-IGNITION,10 AMP

2434016

$4.79

2

FUSE-MINI BLADE,15 AMP

2410280

Unavailable

3

DIODE-STARTER CIRCUIT

2434019

$13.95

4

Lead, Spark Plug Wire

4010531

$79.37

5

Bracket, Voltage Regulator

1013510

$27.94

6

Screw

7517739

$9.59

7

Regulator, Voltage

2410230

$209.99

8

SCREW

7517272

$7.19

9

Spacer, Coil

5132791

$3.65

10

Coil, Ignition

4010530

Unavailable

11

Screw

7517973

Unavailable
