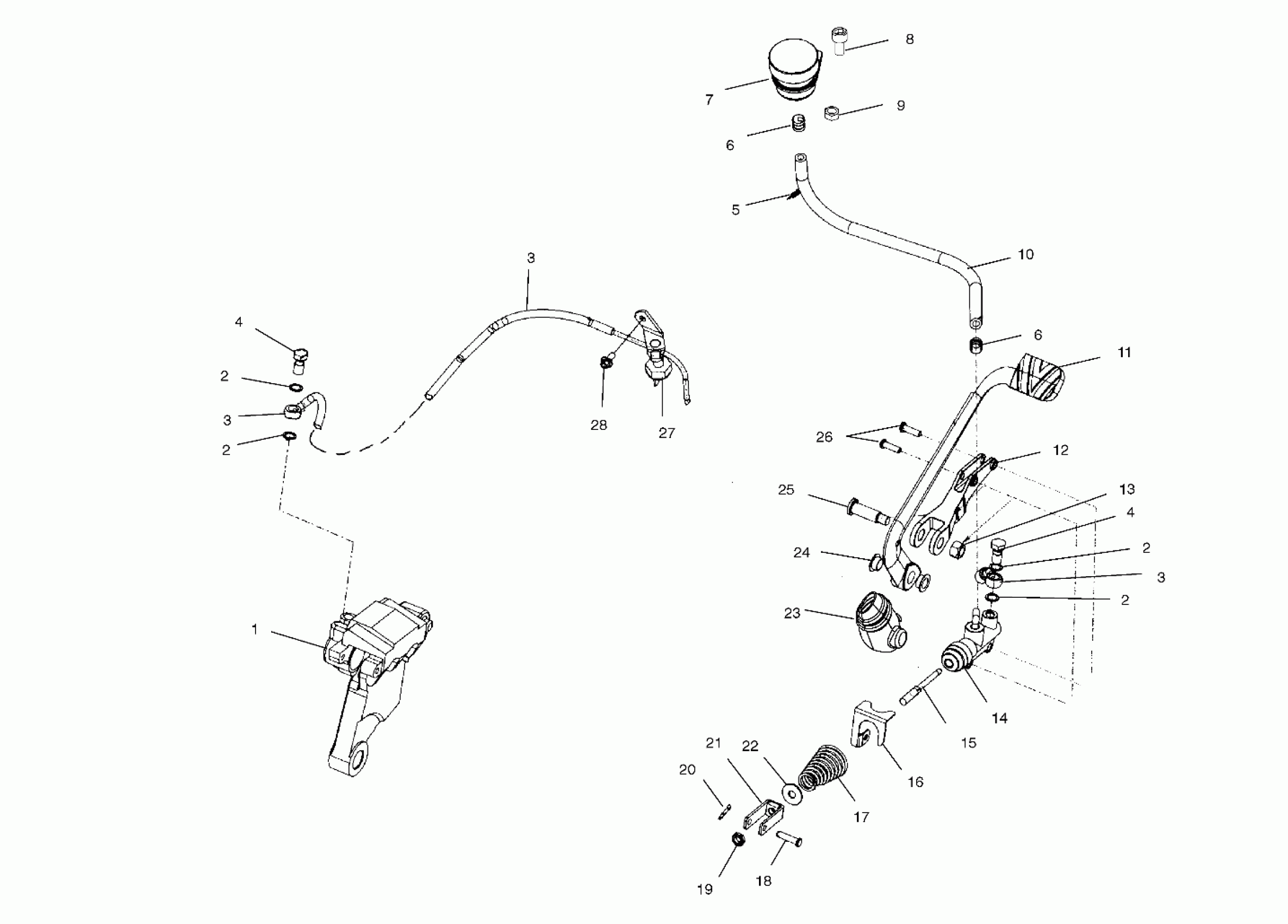

Polaris DELUXE TOURING CRUISER ALL OPTIONS - V02TD16 BRAKES, REAR - V02TD16/ALL OPTIONS (4976347634B08) Diagram

#

Description
Price

-

Kit, Brake Pad

2201171

Unavailable

-

Kit, Bleeder Screw, Boot

2201173

$12.99

-

Kit, Boots, Caliper, Rear

2201174

Unavailable

-

Kit, Pin, Retainer, Spring, Clip

2201175

$21.81

1

Asm., Caliper, Rear

1910374

Unavailable

2

Washer, Copper

7556028

$1.59

2

Washer, Copper

7556028

$1.59

2

Washer, Copper

7556028

$1.59

2

Washer, Copper

7556028

$1.59

3

Hose

1910497

Unavailable

3

Clip, Brake Line [8mm]

7081014

$6.98

3

Clip, Brake Line [10mm]

7080949

$3.30

3

Clip, Brake Line [5mm]

7080945

$3.30

3

Hose

1910497

Unavailable

3

Clip, Brake Line [8mm]

7081014

$6.98

3

Clip, Brake Line [10mm]

7080949

$3.30

3

Clip, Brake Line [5mm]

7080945

$3.30

3

Hose

1910497

Unavailable

3

Clip, Brake Line [8mm]

7081014

$6.98

3

Clip, Brake Line [10mm]

7080949

$3.30

3

Clip, Brake Line [5mm]

7080945

$3.30

4

Bolt

1930848

Unavailable

4

Bolt

1930848

Unavailable

5

Dart

5433140

Unavailable

6

Clamp, Hose

7080904

Unavailable

6

Clamp, Hose

7080904

Unavailable

7

Reservoir

1930882

Unavailable

8

SCREW

7517704

$7.19

9

NUT-HEX-M6X1.0 8 SPC

7547120

$4.79

10

Hose

1910558

$35.71

11

Pedal, Brake

5132459

$188.10

12

Support, Brake Pedal

5131688-067

$130.95

13

NUT

7547039

Unavailable

14

Cylinder, Master, Rear

1910396

Unavailable

15

Rod, Brake

5132298

$38.89

16

Bracket, Brake Spring Retaining

5242952-067

$22.99

17

Spring, Brake Pedal

7041746

$13.49

18

Pin, Brake

7661096

$3.30

19

Nut

7547050

$3.02

20

Pin, Cotter

7661097

$1.83

21

Clevis, Brake Rod

1080038

$133.99

22

Washer, Flat

7556045

$8.79

23

Boot, Rubber

5411943

$7.94

24

Bushing

5020904

Unavailable

25

Screw

7517715

Unavailable

26

Screw

7515391

$4.79

27

SWITCH, PRESSURE

4010372

Unavailable

28

SCREW

7517704

$7.19
