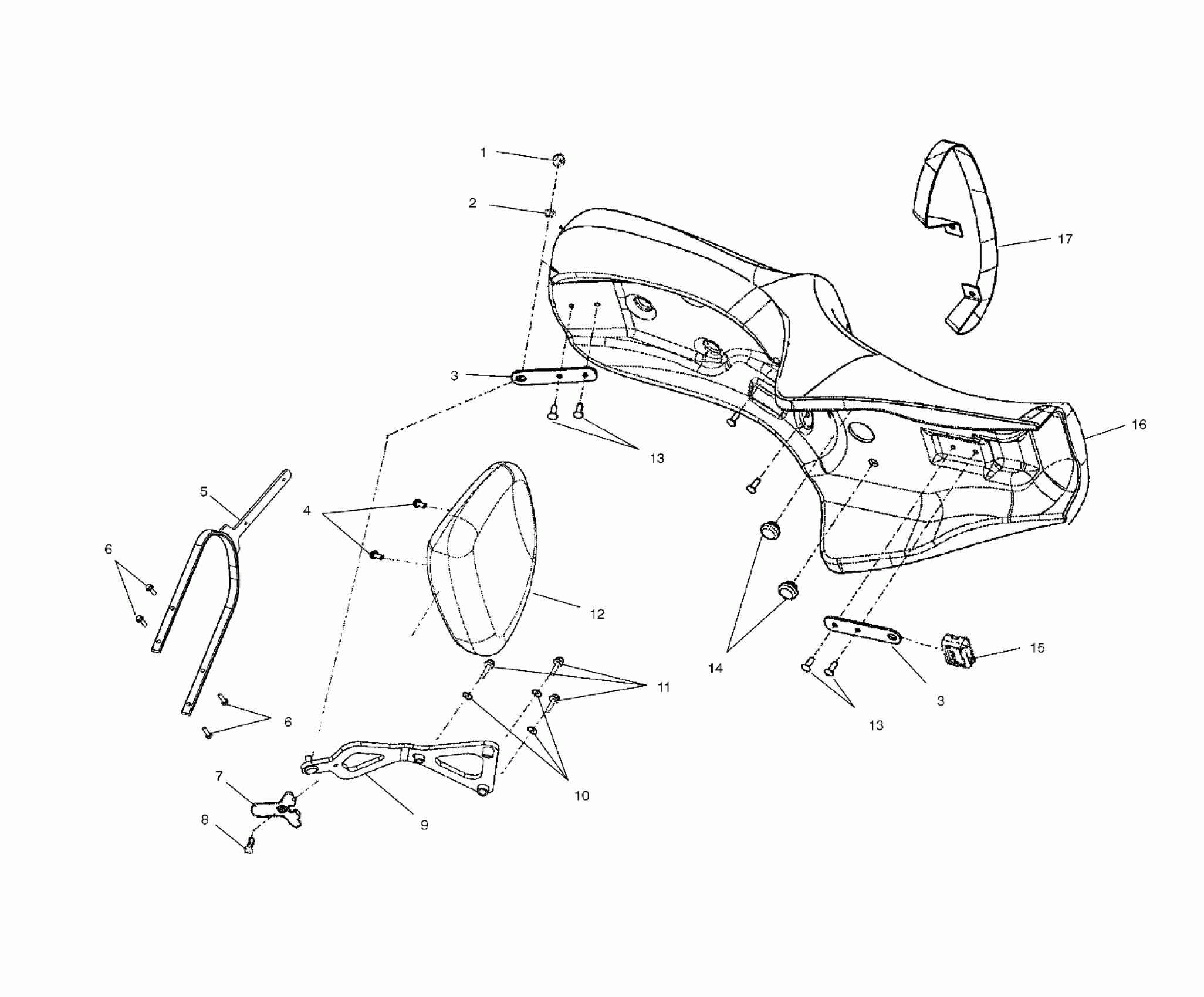

Polaris DELUXE TOURING CRUISER ALL OPTIONS - V02TD16 BODY, SEAT - V02TD16/ALL OPTIONS (4976347634B13) Diagram

#

Description
Price

1

NUT, ACORN

7547184

$10.32

2

Washer, Flat

7556026

$10.46

3

Bracket, Seat Base

5245507

Unavailable

3

Bracket, Seat Base

5245507

Unavailable

4

Screw

7517783

$4.76

5

Weldment, Backrest

1013950

$216.99

6

SCREW

7518074

$6.35

6

SCREW

7518074

$6.35

7

Pad, Seat Bracket, Rear

5812250

$5.84

8

RIVET

7621418

$1.19

9

Bracket, Seat, Rear

1013551

$180.16

10

WSHR-6.4X18.0X1.6 ZPB

7556064

$5.22

11

Screw

7516411

$0.68

12

Backrest

2682825

Unavailable

13

Rivet

7661834

Unavailable

13

Rivet

7661834

Unavailable

14

BUMPER-RUBBER

5412067

$3.97

15

Pad, Seat Bracket, Front

5812251

Unavailable

16

Asm., Seat [Incl. 3,13,14,17]

2682459

$494.99

17

Strap, Hand Hold

5812285

$7.38
