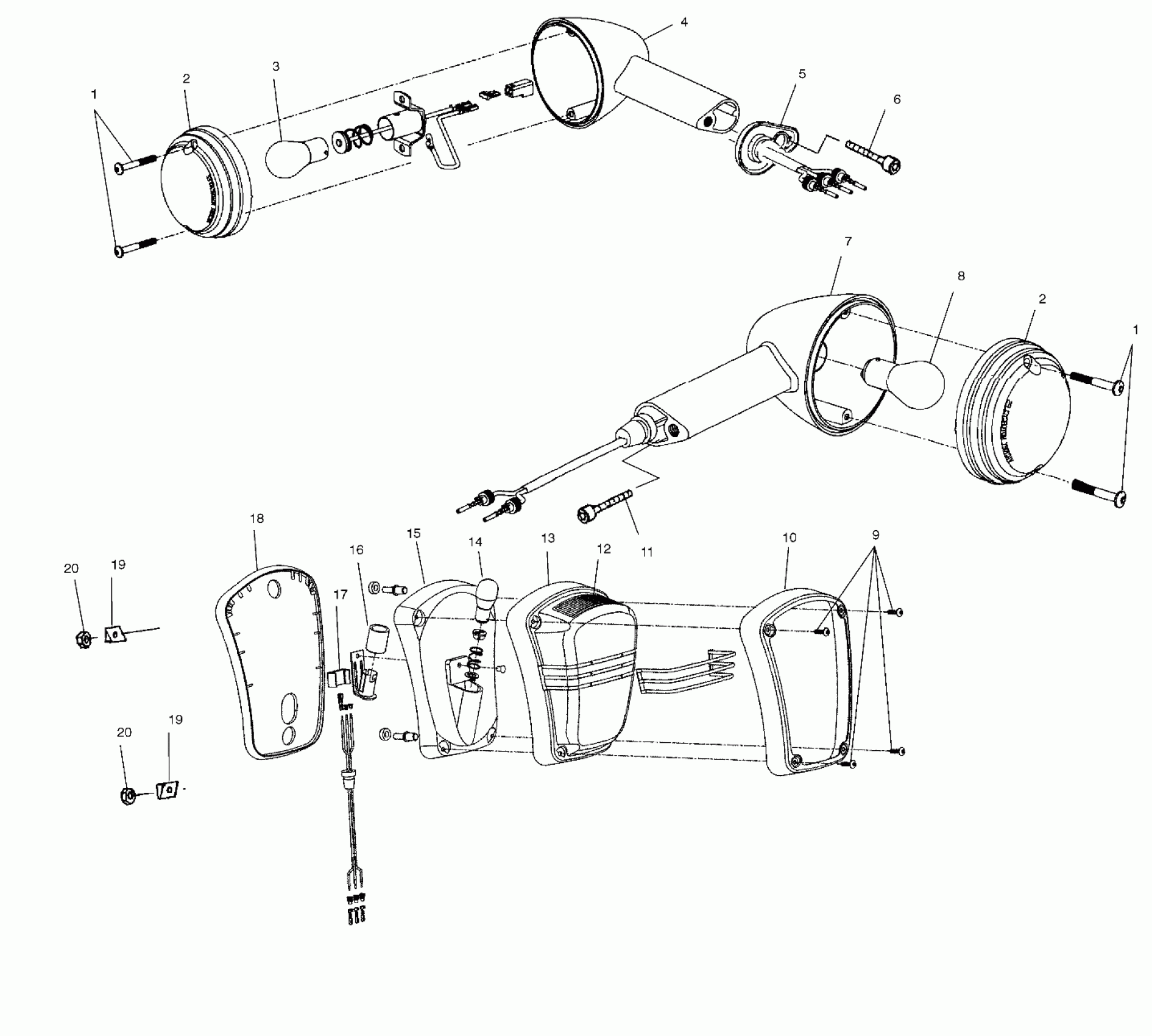

Polaris DELUXE CRUISER - V01CD15DB ELECTRICAL, TAILLIGHT and TURN SIGNAL - V01CD15CC (4966146614A014) Diagram

Screw

7517369

$3.79

Screw

7517369

$3.79

Kit - Turn Signal Lens (Incl. 1) (Incl. 1)

2201419

Unavailable

Kit - Turn Signal Lens (Incl. 1) (Incl. 1)

2201419

Unavailable

Bulb, Dual Filament, 198

4030064

$8.89

Asm., Turn Signal, Front, Left

2433005

Unavailable

Asm., Turn Signal, Front, Right

2433007

Unavailable

Spacer, Turn Signal

5433203

Unavailable

SCREW

7517517

Unavailable

Asm., Turn Signal, Rear, Left

2410218

$130.94

Asm., Turn Signal, Rear, Right

2410217

$126.57

Harness, Turn Signal, Right

2460692

$23.02

Harness, Turn Signal, Left

2460695

$23.02

Bulb, Single Filament, 199

4030065

$7.38

Screw

7517237

Unavailable

Bezel, Taillight

5230125

$61.90

SCREW

7517696

$5.59

Asm., Taillight (Incl. 3,9,10,13,16,15,18) (Incl. 3,9,10,13,16,15,18)

2410273

$206.89

Lens, Taillight

5432732

Unavailable

Bulb, Dual Filament, 2357

4010222

Unavailable

BASE

-------

Unavailable

Turtleneck, Taillight

5433773

$6.27

Isolator, Taillight

5812262

Unavailable

Pad, Taillight Mounting

5812256

$36.83

Spacer, Taillamp, Fender

5131842

$23.65

Spacer, Taillamp, Fender

5131842

$23.65

NUT-HEX-M6X1.0 8 SPC

7547120

$4.79

NUT-HEX-M6X1.0 8 SPC

7547120

$4.79
