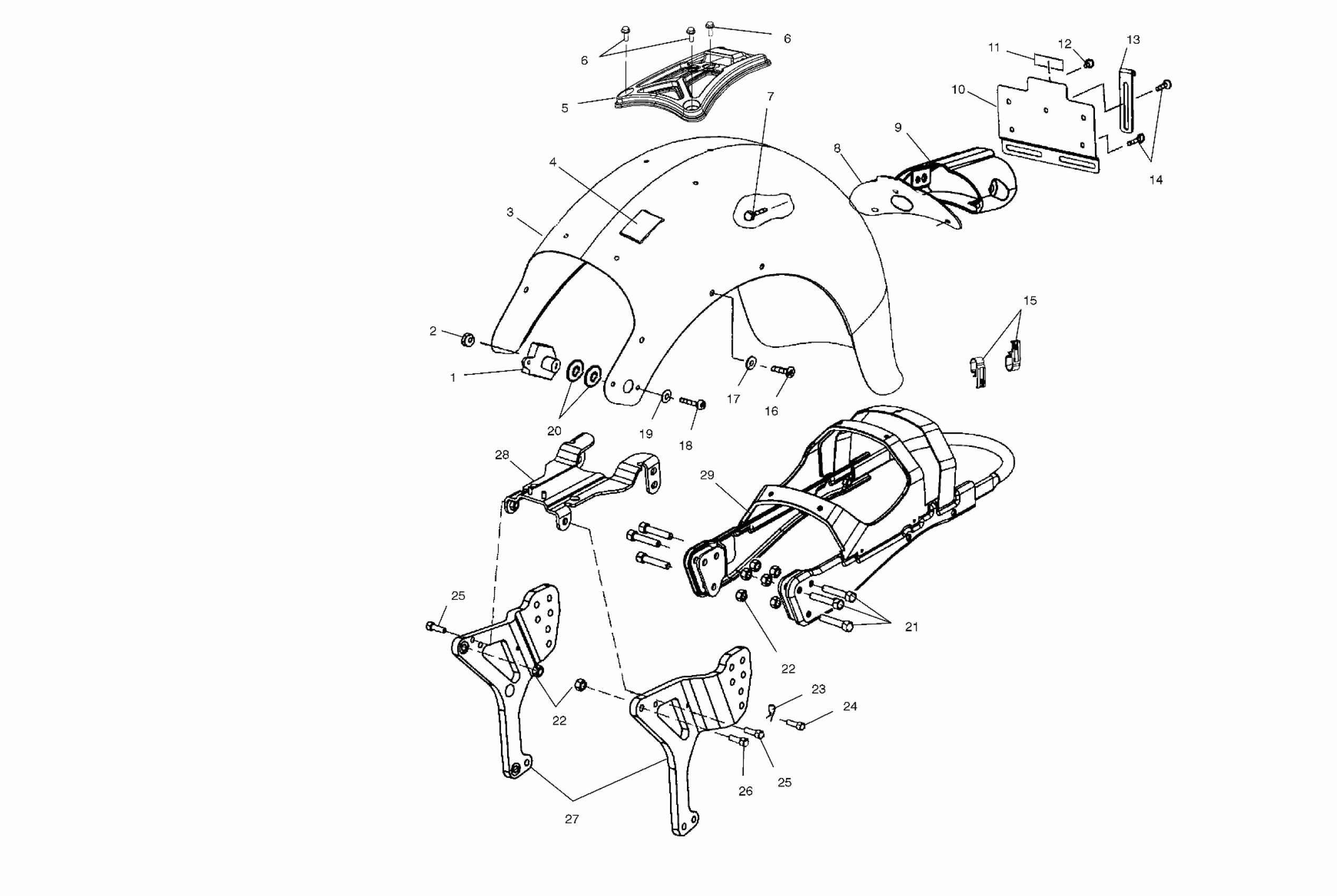

Polaris DELUXE CRUISER - V01CD15DB CHASSIS, SUBFRAME and REAR FENDER - V01CD15CC (4966146614A004) Diagram

#

Description
Price

1

Lock, Seat

7010088

Unavailable

2

NUT-HEX-M6X1.0 8 SPC

7547120

$4.79

3

Fender, Rear (Blue/Cashmere)

1013025A9

$869.99

3

Fender, Rear (Money Green/Cashmere)

1013025A8

$824.99

3

Fender, Rear (Vanilla/Carmen)

1013025A10

Unavailable

3

Fender, Rear (Cruiser Black)

1013025-266

Unavailable

4

Pad, Rubber, Tandem Seat

5811941

$6.59

5

Bracket, Tandem Seat

5433482

$15.56

6

SCREW

7517750

Unavailable

6

SCREW

7517750

Unavailable

7

SCREW-HXFLGHD,M6X12

7517886

$1.59

8

Gasket, Tail Mount

5812043

$13.89

9

Mount, Tail

5132513

$309.90

10

Asm., License Plate (Canada) (Canada)

1013289

Unavailable

10

Bracket, License Plate

2632352

$115.08

11

Reflector, Rear, Red

5432992

Unavailable

12

BUMPER, GROMMET

5411323

Unavailable

13

Retainer, License Plate

5241885

$22.62

14

SCREW

7517494

$7.91

15

CLIP, ELECTRICAL

7080737

Unavailable

16

Screw

7517840

Unavailable

17

Bushing, Fender, Rear

5132668

Unavailable

18

Screw

7517355

Unavailable

19

WSHR-6.4X18.0X1.6 ZPB

7556064

$5.22

20

Spacer

5132374

$2.38

21

SCREW

7517946

Unavailable

22

NUT

7547039

Unavailable

22

NUT

7547039

Unavailable

23

Clamp, Rubber Coated

7080928

Unavailable

24

Screw

7517705

$6.79

25

Screw

7517835

$2.60

25

Screw

7517835

$2.60

26

SCREW

7517827

$6.39

27

Subframe, LH

5244574-067

$172.22

27

Subframe, RH

5244575-067

$130.95

28

Cover, Subframe

1012961-067

$115.08

29

Subframe, Modular, Rear, Black

1012953-067

$744.99
