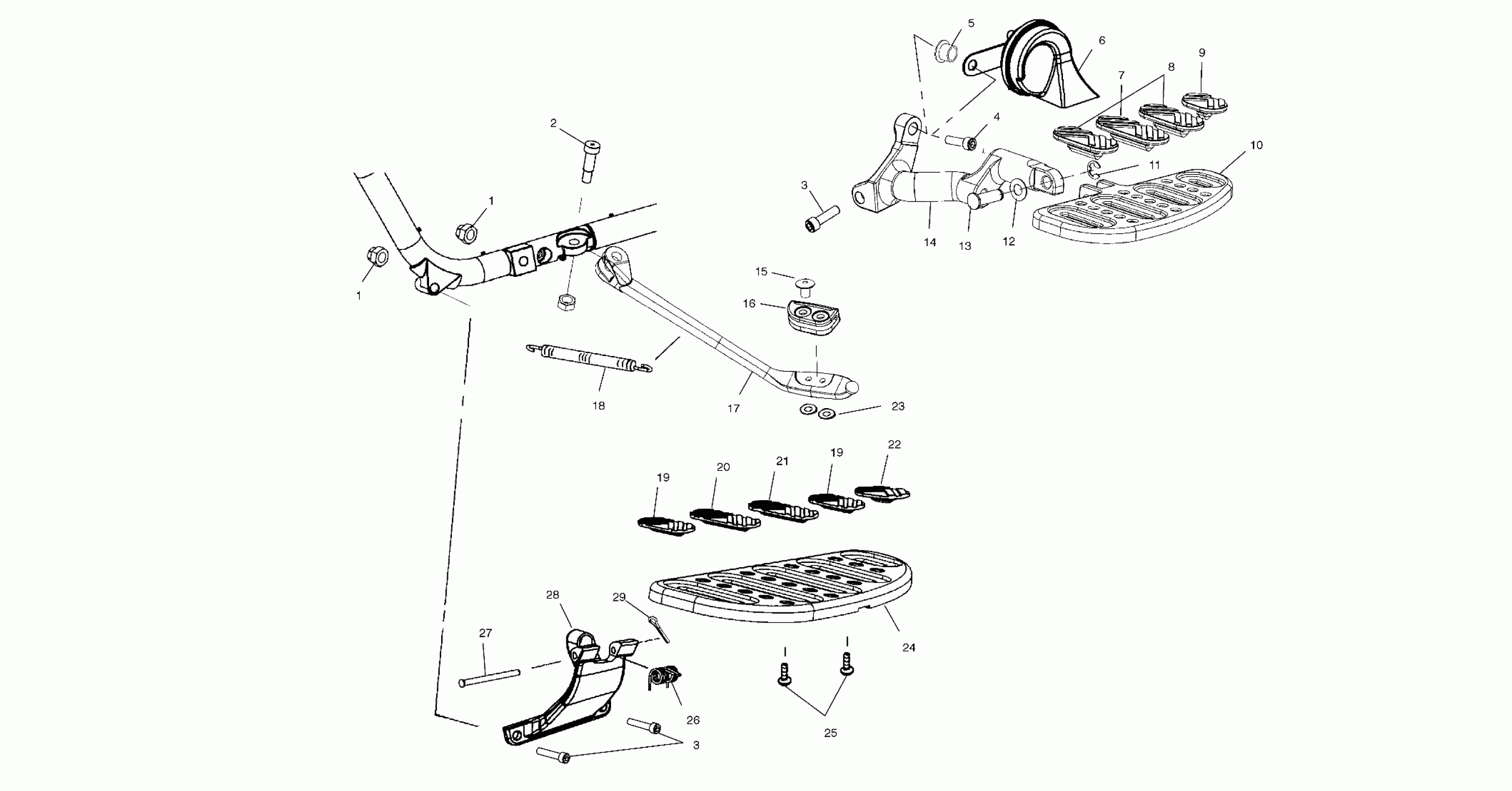

Polaris DELUXE CRUISER - V01CD15DB CHASSIS, FLOORBOARD and SIDE STAND - V01CD15CC (4966146614A006) Diagram

#

Description
Price

1

NUT (10)

7547039

Unavailable

1

NUT (10)

7547039

Unavailable

2

Screw

7517404

Unavailable

3

SCREW,SOCHD,M10X50

7517526

$3.02

3

SCREW,SOCHD,M10X50

7517526

$3.02

4

SCREW (LH Side Only)

7517554

Unavailable

5

SPACER-HORN BRACKET

5132658

$3.92

6

HORN

4010433

$86.51

7

PAD,FLOORBOARD,PASS,#2

5411671

$12.30

8

PAD,FLOORBOARD,PASS,#1/#3

5411670

Unavailable

9

PAD,FLOORBOARD,PASS,#4

5411672

$12.30

10

FOOTREST-PASS,LH

5131989

$112.60

10

FOOTREST-PASS,RH

5131990

$112.60

11

E-CLIP,M8,STEEL(10)

7710493

Unavailable

12

WASHER,SPRING,SS.(10)

7556046

$4.35

13

PIN,PIVOT,PASS.PEG,SS

5131857

$23.41

14

SUPPORT-FOOTREST,PASS,LH,BLK

5243253-067

$69.84

14

SUPPORT-FOOTREST,PASS,RH,BLK

5243247-067

$163.49

15

RIVET,TRUSS,HD,SS

7661064

Unavailable

16

PAD,SIDE STAND

5411745

Unavailable

17

STAND-SIDE

5910052

Unavailable

18

SPRING-SIDESTAND

7042063

Unavailable

19

PAD,F'BOARD,#1/#4

5411267

$11.51

19

PAD,F'BOARD,#1/#4

5411267

$11.51

20

PAD,F'BOARD,#2

5411268

$11.51

21

PAD,F'BOARD,#3

5411269

$11.51

22

PAD,F'BOARD,#5

5411270

Unavailable

23

WASHER-FL,6.0X0.8,0600090(10)

7556121

$1.49

24

FLOORBOARD-LH,DRIVER

5132228

Unavailable

24

FLOORBOARD-RH,DRIVER

5132229

Unavailable

25

SCREW(10)

7517694

$8.71

26

SPRING,F'BOARD SUPPORT

7041623

$27.99

27

PIN-FLOORBOARD SUPPORT

7661095

$2.99

28

SUPPORT,FLRBRD,LH,MACH,BLK

5132429-067

Unavailable

28

SUPPORT-FLOORBOARD,RH,MACH,BLK

5132430-067

$216.99

29

PIN-COTTER,3/32"X5/8"(10)

7661094

Unavailable
