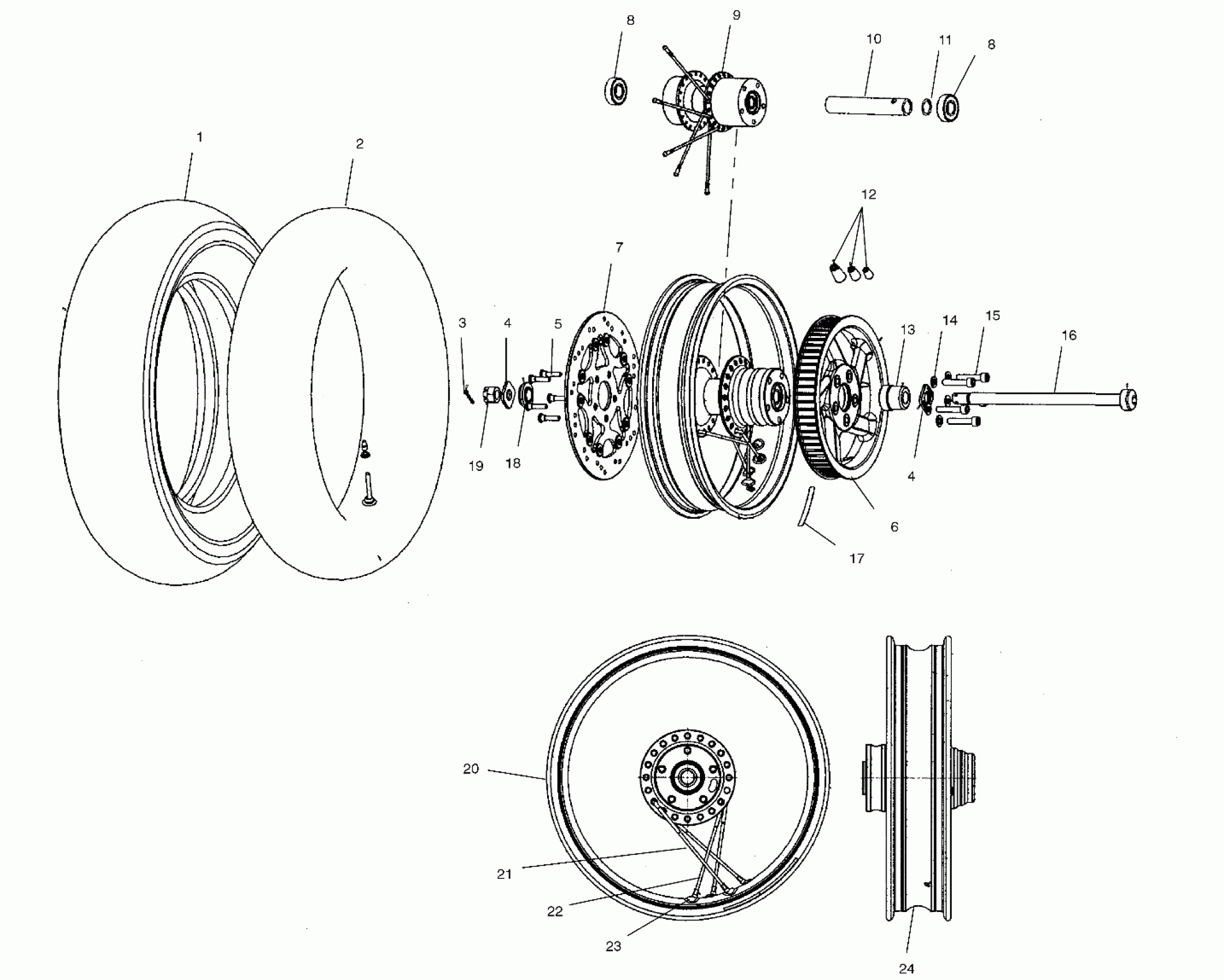

Polaris DELUXE CRUISER ALL OPTIONS - V02CD16 WHEELS, REAR - V02CD16/ALL OPTIONS (4976307630A13) Diagram

#

Description
Price

-

Asm. Wheel [Incl. 8,10,11,20-24]

1520530

$939.99

1

Tire, Rear

5411970

$354.99

2

Tube, Tire, Inner

1820875

$105.22

3

Pin, Cotter

7663003

$3.81

4

Washer, Indicator, RH

5245088-067

$13.60

4

Washer, Indicator, LH

5245087-067

$12.65

4

Washer, Indicator, RH

5245088-067

$13.60

4

Washer, Indicator, LH

5245087-067

$12.65

5

Screw

7517978

$33.79

6

Sprocket, 64T

1341378

$414.99

7

Rotor, Brake, Rear

1910498

Unavailable

8

Bearing, Ball

3513509

Unavailable

8

Bearing, Ball

3513509

Unavailable

9

Asm., Hub

1520482

Unavailable

10

Spacer, Bearing

5132314

Unavailable

11

O-Ring

5411820

Unavailable

12

Weight, Balance, 1/4 oz.

1520507

Unavailable

13

Spacer, RH

5132624

Unavailable

14

Washer, Flat

7556123

Unavailable

15

Screw

7517991

$2.38

16

Axle, Rear

1013184

$125.40

17

Decal - Rim, Laced

7078699

Unavailable

18

Spacer, Axle, Rear

5010429

$22.51

19

Nut, Castle

7547009

$4.62

20

Rim

5132867

Unavailable

21

Spoke, Outer

5333979

Unavailable

22

Spoke, Inner

5333978

$10.63

23

Nipple, Spoke

5132870

Unavailable

24

Flap, Rim

5812199

$11.90
