- DELUXE CRUISER ALL OPTIONS - V02CD16
FUEL SYSTEM, FUEL TANK, LINES and THROTTLE BODY - V02CD16/ALL OPTIONS (4976307630D06)

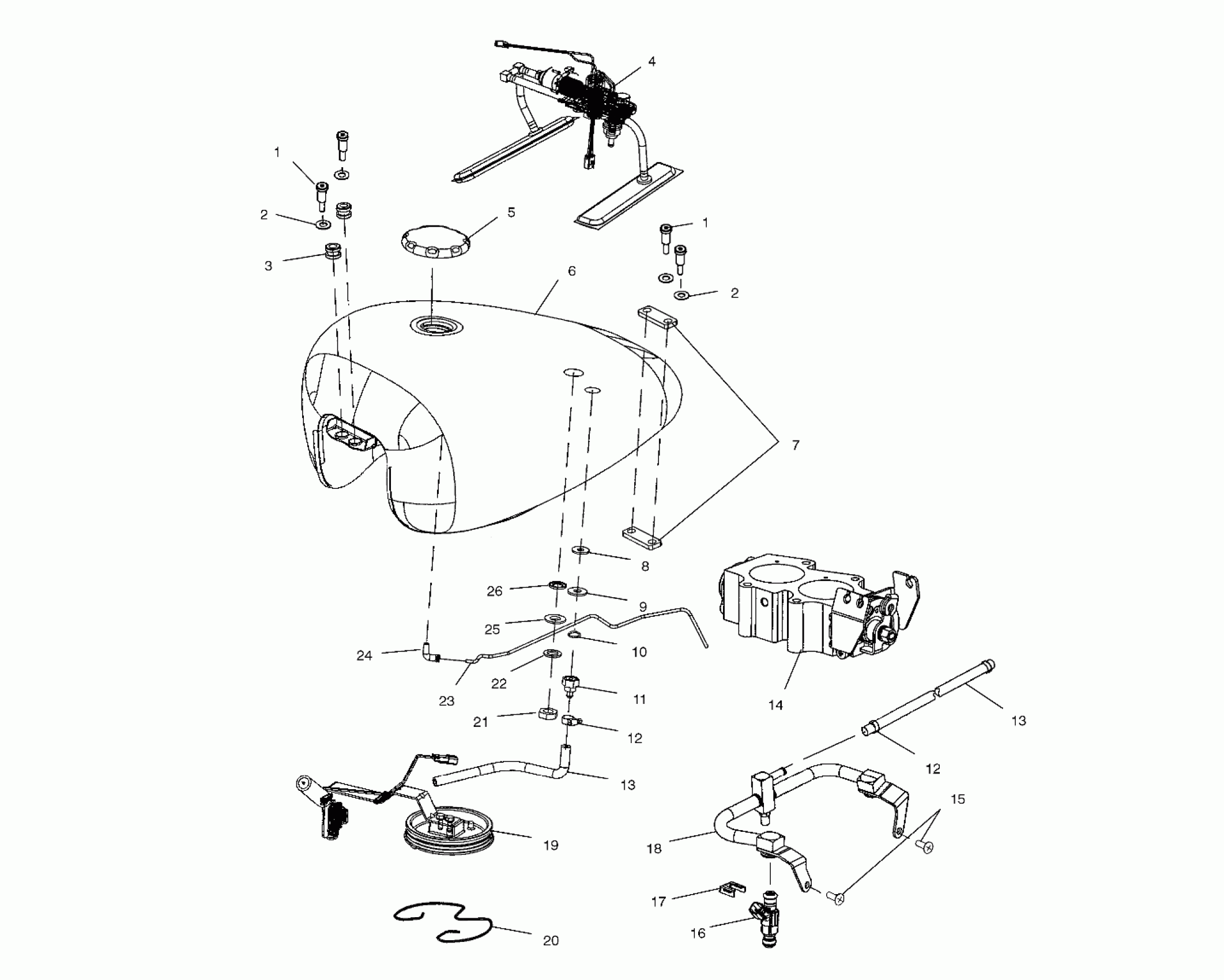

Polaris DELUXE CRUISER ALL OPTIONS - V02CD16 FUEL SYSTEM, FUEL TANK, LINES and THROTTLE BODY - V02CD16/ALL OPTIONS (4976307630D06) Diagram
#
1
Screw, Socket Head
7517723
Unavailable
1
Screw, Socket Head
7517723
Unavailable
2
Washer, Flat
7556123
Unavailable
2
Washer, Flat
7556123
Unavailable
3
Grommet, Rubber, Front
5811878
Unavailable
4
Filter, Fuel Line, Internal
2520245
Unavailable
4
Pump, Fuel [Incl. 8-11,21,22,25,26]
2520212
Unavailable
5
Cap, Fuel
5132333
Unavailable
6
Tank, Fuel, Black
1013279-266
$557.54
6
Tank, Fuel (Red/White)
1013279A15
Unavailable
6
Tank, Fuel (Yellow/Black)
1013279A19
Unavailable
6
Tank, Fuel (Blue/White)
1013279A12
Unavailable
6
Tank, Fuel (Green/White)
1013279A13
Unavailable
7
Pad, Tank Mount, Rear
5411796
Unavailable
8
Grommet
5412093
Unavailable
9
Washer
7556131
$3.17
10
O-Ring
5411869
Unavailable
11
Fitting
2520251
Unavailable
12
Clamp, Hose
7080894
$7.14
12
Clamp, Hose
7080894
$7.14
13
Hose
5411942
$39.99
13
Hose
5411942
$39.99
14
Asm., Throttle Body
1253363
$519.99
14
Cap, Fitting
5411886
$8.89
15
SCREW
7517405
$10.39
16
O-RING-BOSCH,EV-14,UPPER, BLUE
1500198
$11.99
16
Injector, Fuel
1253405
Unavailable
17
Clip, Injector Clocking
7670129
Unavailable
18
Asm., Fuel Rail
2520207
Unavailable
19
O-Ring
5412071
Unavailable
19
Sender, Fuel Level
4010373
Unavailable
20
Ring, Retaining
7710515
Unavailable
21
Nut
7547186
$4.76
22
Washer
7556192
Unavailable
23
Line, Vent
5433950
$12.30
24
Elbow, Vent Line
5411972
$1.98
25
Washer
7556193
Unavailable
26
Grommet
5412095
Unavailable
